Our friends at Image Productions Services (IPS) have been earning rave reviews for their stellar work at film premieres in London – and we’re honored they’ve included CHAUVET Professional in their creative tool chest.

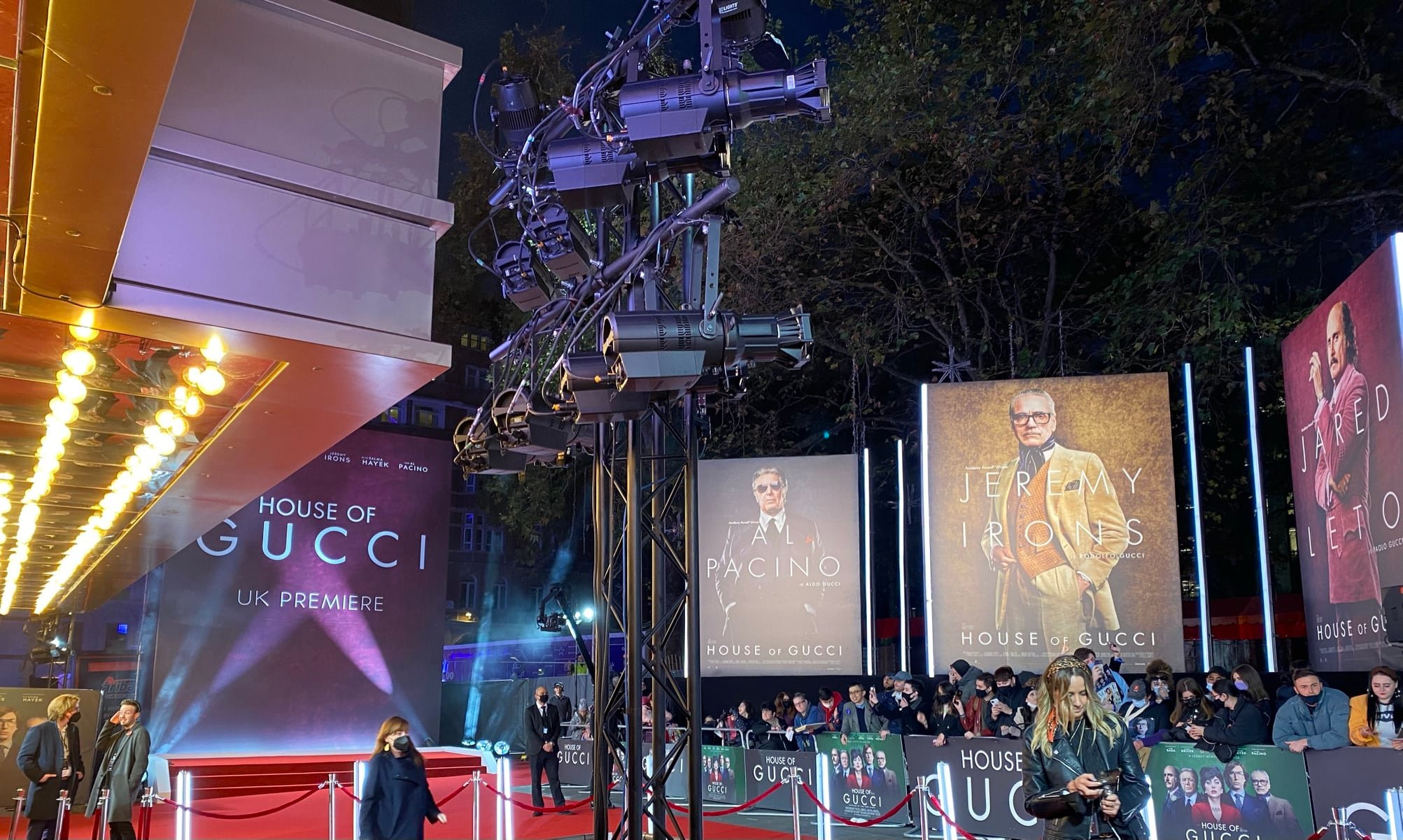

Just before Christmas, there was the debut of “House of Gucci,” the Ridley Scott directed family saga involving high stakes fashion. Stars Lady Gaga, Jared Leto, Adam Driver, and Salma Hayek were there at the Odeon Luxe in Leicester Square, so too was a collection of Ovation E-910FC ellipsoidal fixtures, which were used to light artful posters of the film’s players.

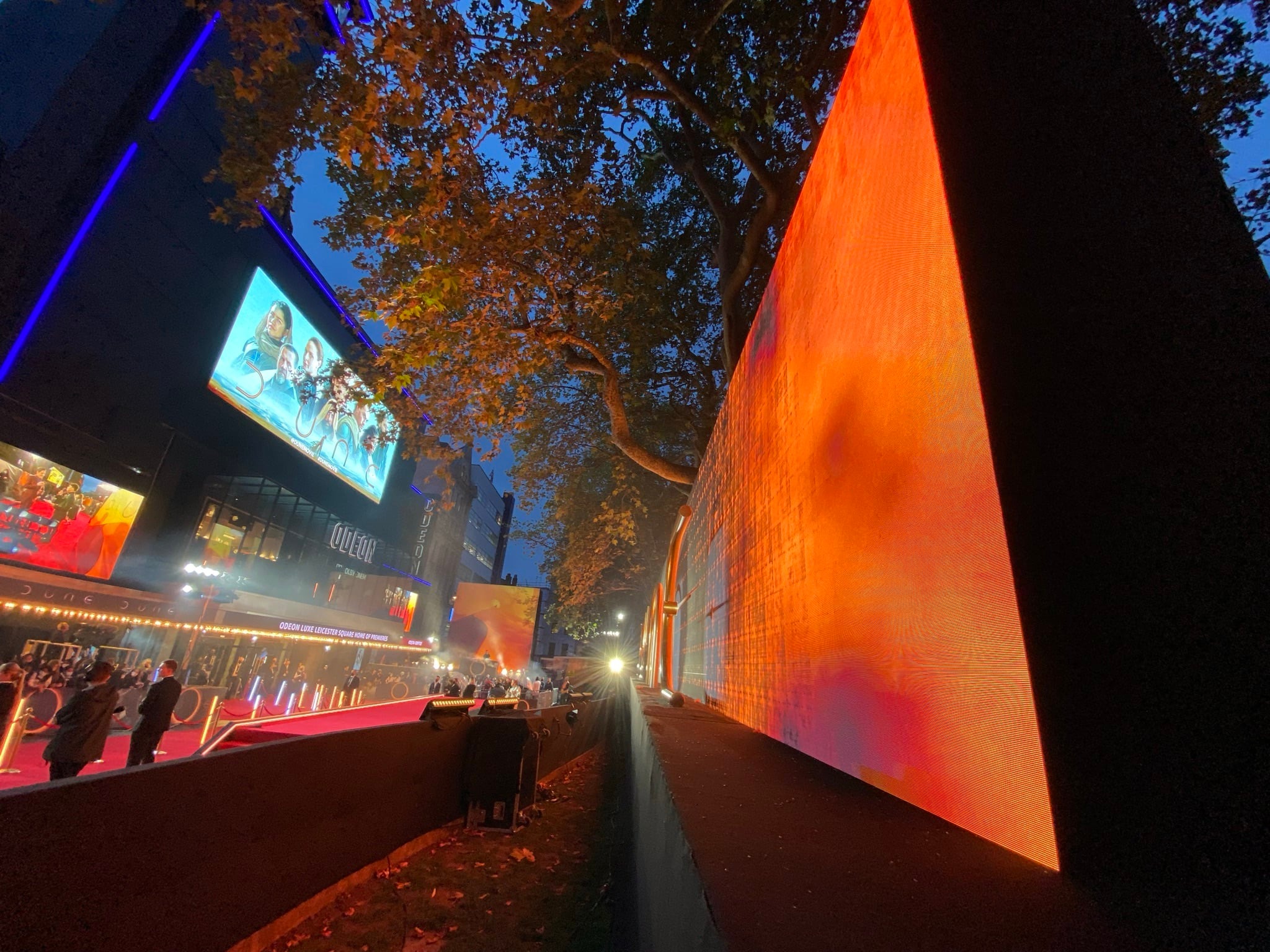

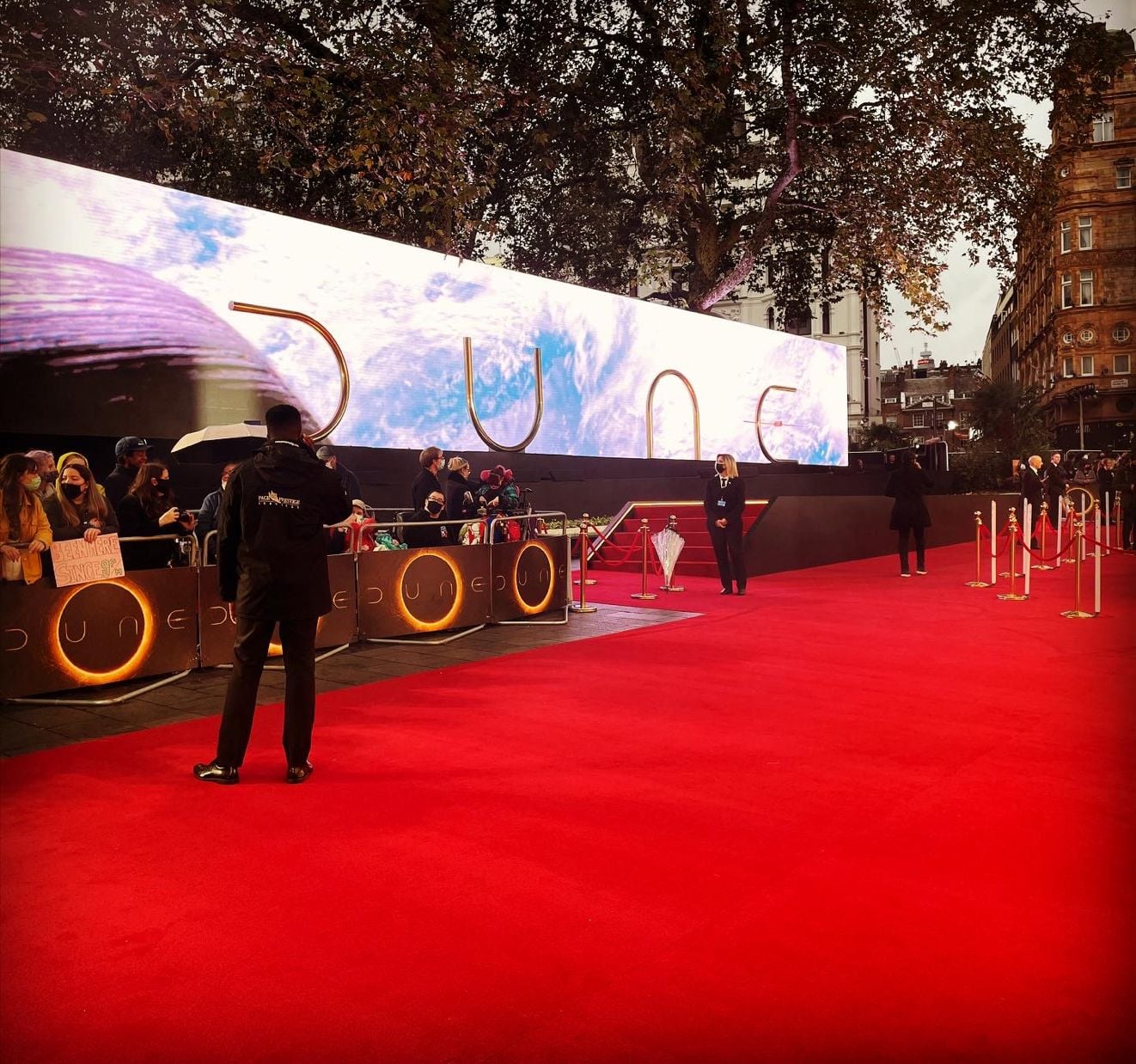

Earleir, IPS provided technical services for the premiere of the hit film Dune. The IPS team used 236 of our F4IP LED panels to create a 28-metre wide by 4-metre high video wall that ran almost the entire length of the red carpet. Displaying a series of dramatic images from the movie that were supplied by the film company and played back via a Disguise Media Server, the wall added a powerful and engaging cinematic flavor to the event, in addition to providing an attractive backdrop for videos and photos featuring the film’s stars.

“One of the main reasons for the premiere was to attract media coverage, and with such a large display being installed, it was essential that all the technical production elements not only looked great, but were also reliable,” Tom Warden of IPS said of the Dune event. “The first consideration, given that the installation was outdoors, was to choose an all-weather, IP-rated panel. IPS have already used the Chauvet F4IP and X6IP LED screen systems extensively in outdoor applications, so we knew that they would perform well, even if the weather was against us.

“The next consideration was the resolution and refresh rate, as it was essential that the high-resolution images could be displayed and look great on camera,” continued Warden. “The 4.8mm pixel pitch of the F4IP panels meant that the high-resolution requirements of the production could be met – along with the client specification for a small pixel pitch.”

Using an ultra-widescreen format (nearly a 64:9 ratio), the IPS team achieved an overall pixel resolution of 5824 x 832. Clever mapping enabled the content to be displayed from a single 4K video feed.

As is invariably the case with events that flow with the seamless precision of a well-oiled machine, the Dune Premiere was, in reality, the result of hard work, relentless attention to detail, and extensive contingency planning on the part of all involved. This began with Limited Edition Event Design’s James Barnfather and Richard Godin; the latter of whom designed the lighting for the event and ran it using a ChamSys MagicQ MQ 80 supplied by IPS.

James Mason, project manager for IPS, Dan Ainsley, technical lead, and media server programmer Nathan Dunbar also contributed greatly to the effort. The IPS team connected the F4IP panels with True1 cables for power and EtherCon cables for data. Power was supplied via onsite generators, and multiple feeds were used to protect against any single point of failure. As a further safeguard, each panel was connected with two data feeds, with panels grouped into multiple zones to provide data redundancy.

The server was programmed to reconfigure the content using pixel mapping to fit within a 4K resolution feed by essentially cutting the image in half vertically, and then arranging these two feeds one above each other. This enabled 1:1 pixel resolution to be maintained within a 3840 by 2160 4K UHDTV resolution image feed that was reconnected via display port to a Novastar 4k UHD screen processor. The content was then reconfigured to map across the F4IP panels with all the preset calibration settings applied.

A custom designed support structure was used to level the wall along the sloping ground onsite and incorporate a platform to support its DUNE logo lettering as well as all the ballast weights used to meet wind loading requirements. The panels stood on the levelled stage platform, and were attached at the rear using clamps to connect to the support structure.

“The physical installation of such a large screen is always complicated, especially in a central London pedestrian location,” said Warden. “Then there is the short lead times typically associated with the film premiere events.”

On top of these concerns, there were also the challenges associated with following COVID safety protocols, which limited crew sizes and work hours. Nevertheless, the IPS team prevailed.

They might not have possessed anything as powerful as “Spice,” the mystical matter from the planet Arrakis in Dune, but they did have skill, teamwork and some very reliable all-weather video panels — and on this particular evening that was much more than good enough.
