LEGACY

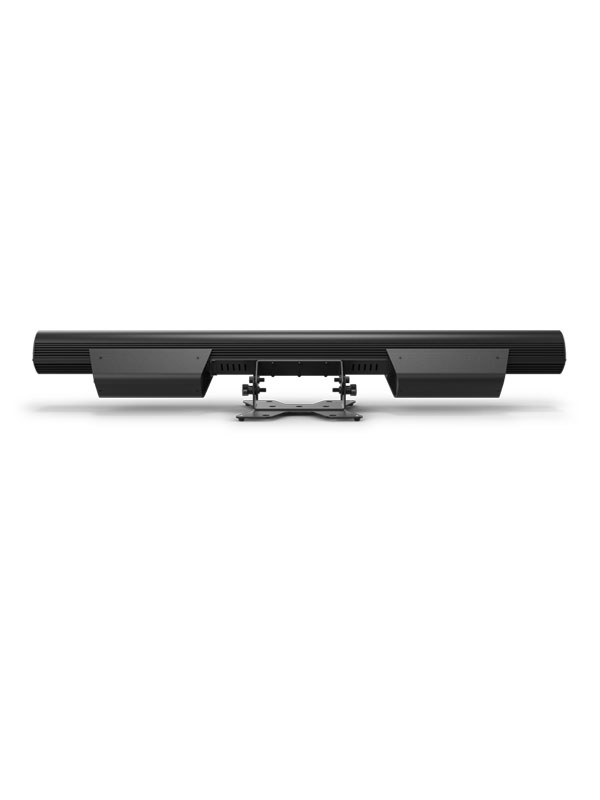

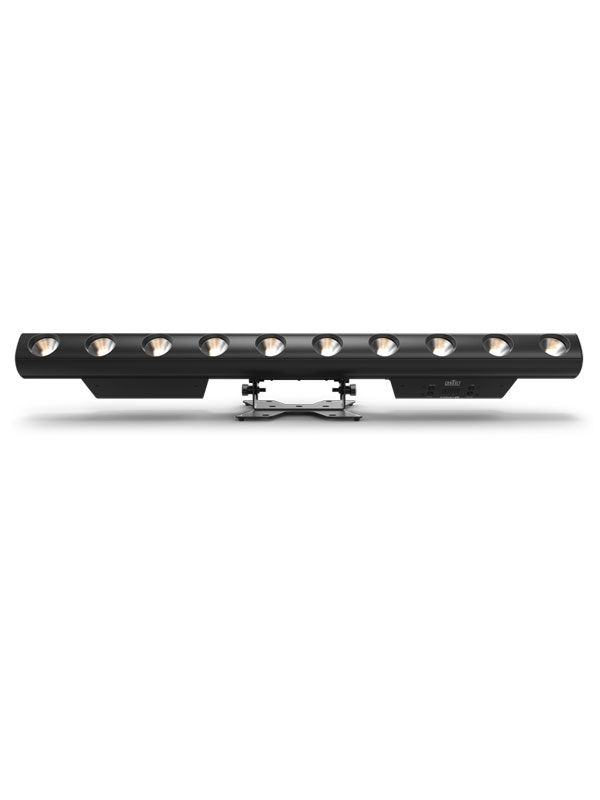

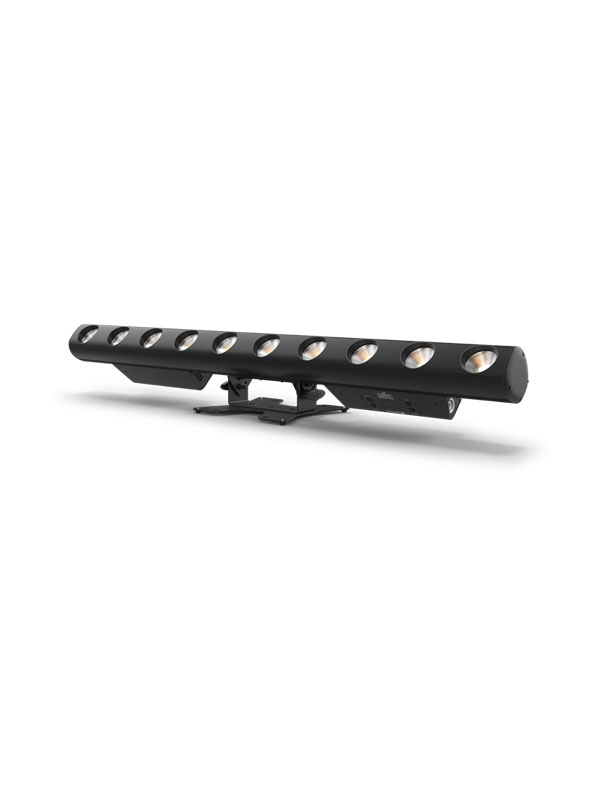

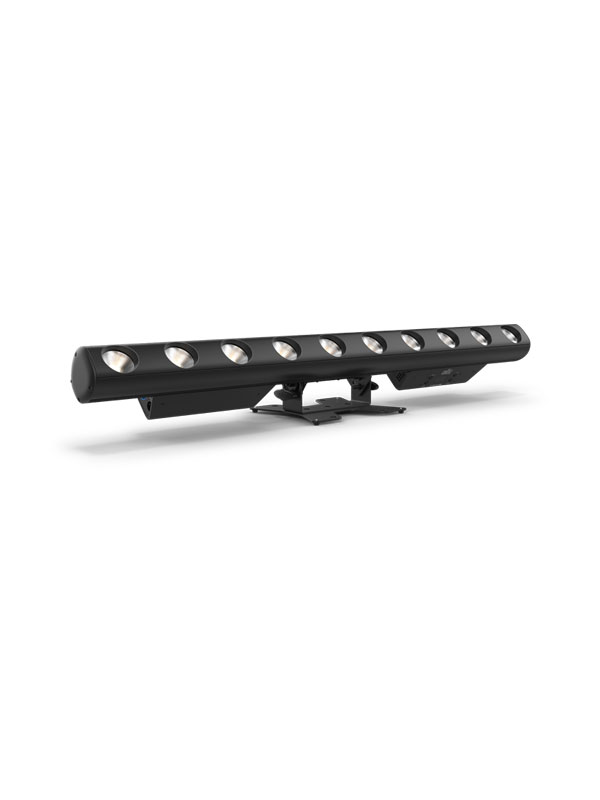

STRIKE Saber

STRIKE Saber is a powerful blinder, footlight or tunable warm-white wash powered by 10 17 W bi-color (WW/Amber) LEDs. It’s also pixel-mappable for awesome chase and strobe effects. An emulated “amber shift” warms the Color Temperature of the light as it dims to perfectly mimic incandescent lights. This dynamic batten also comes with a floorplate for easy ground level mounting and includes RDM control and 16-bit dimming for smooth, perfect fades.


At a Glance

  • Intense 10-cell batten perfect as a blinder, footlight or tunable warm-white

  • Emulated “red shift” to mimic incandescent fixtures perfectly

  • 16-bit dimming control for smooth, perfect fades

  • Strobe functionality for high-impact effects on-the-fly

  • Pixel mappable for intense chase and strobe effects

  • Included floor plate for easy ground level mounting

  • Easy to use OLED display

  • Adjustable Pulse Width Modulation (PWM)

  • RDM (Remote Device Management) for added flexibility

Specifications

Optical

  • 10, LEDs (Warm White/Amber) 17 W, (310 mA), 3134 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3134 K
  • CRI: 89
  • Beam Angle vertical: 15°
  • Beam Angle horizontal: 18°
  • Field Angle vertical: 30°
  • Field Angle horizontal: 35°
  • Lumens: 5,675
  • Illuminance: 2,466 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Strobe: Electronic
  • Strobe Rate: 0 to 26.7 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 39.3 x 3.08 x 6.18 in (1000 x 78.4 x 157 mm)
  • Weight: 14.6 lb (6.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 7, 10, 11, 20, or 27
  • Modes/Personalities: 6 personalities (1ch, 3ch, 7ch, 10ch, 11ch, 20ch, 27ch)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
  • Power and Current: 174 W, 1.434 A @ 120 V, 60 Hz
  • Power and Current: 172 W, .829 A @ 208 V, 60 Hz
  • Power and Current: 170 W, .741 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
