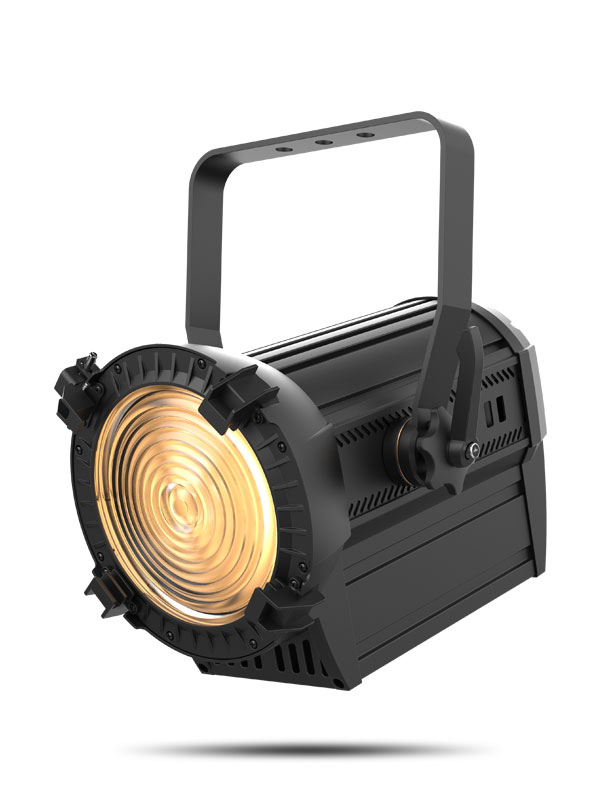

Ovation FD-205WW
A powerful, warm white LED Fresnel wash featuring a wide motorized zoom and the unique ability to operate on either conventional dimming or constant power systems.
This fixture is the ideal LED replacement for aging incandescent Fresnels in venues looking to upgrade their lighting without overhauling existing dimming infrastructure.
-
Features a 230W warm white LED source with an exceptional CRI of 96.
-
Offers a versatile motorized zoom range from a tight 11° to a wide 72° wash.
-
Senses and adapts to both conventional dimming systems and constant power with DMX.
-
Achieves exceptionally smooth fades with 16-bit dimming resolution via DMX control.
-
Its virtually silent operation is ideal for theatrical and studio applications.
-
Provides flexible control options including DMX, RDM, and direct dimmer operation.
Ovation FD-205WW
Ovation FD-205WW is a powerful LED Fresnel wash utilizing data and power sensors that make it possible to run it on both conventional dimming power systems and constant power rigs. A massive zoom range of 11° to 72° and a beautifully soft, warm white wash with high CRI make it an ideal LED replacement for aging incandescent eight-inch Fresnels. Our proprietary motorized zoom is easily accessed by the rotary knob on the back of the fixture even when the fixture is run via a traditional dimming system. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems!
Features
Automatic Power Sensing
The fixture auto-senses and responds appropriately to both conventional dimmers and constant power with DMX systems.
Superior Low End Dimming
Achieve exceptionally smooth low-end dimming regardless of the power source being used.
Retrofit Ready
This fixture is perfect for the retrofit market as it utilizes existing infrastructure flawlessly.
Versatile Motorized Zoom
A motorized zoom feature is available in Dimmer, SENS, or DMX modes for flexible control.
16-Bit Dimming Resolution
Enjoy incredibly smooth fades with high-resolution 16-bit dimming when operating in DMX mode.
Even Light Field
The fixture produces a soft and even field of light for high-quality illumination.
Silent Operation
Its virtually silent operation makes it ideal for use in any noise-sensitive situation.
Flexible DMX Control
Simple and complex DMX channel profiles are available for greater programming versatility.
Warm White Fresnel
This is a classic warm white Fresnel-style lighting fixture.
Wide Zoom Range
Adjust the motorized zoom from a narrow 11° to a wide 72° either manually or via DMX.
Specifications
Optical
-
Light Source 1 LEDs (WW)
230 W, (2.5 A), 3069 K, 50,000 hours life expectancy
-
Color Temperature (at full)
3069 K
-
CRI
96
-
Beam Angle
11° to 53°
-
Field Angle
20° to 72°
-
Zoom Range
11° to 72°
-
Lumens (20°)
6,414
-
Lumens (72°)
9,047
-
-
Illuminance
-
Illuminance (20°)
5,678 lux @ 5 m
-
Illuminance (72°)
450 lux @ 5 m
-
-
Illuminance
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic or External Dimmer Rack
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Strobe Rate
0 to 18 Hz
-
Dim Modes
5
-
Dim Curves
4
Construction/Physical
-
Dimensions
16.22 x 11.18 x 10.28 in (412 x 284 x 261 mm)
-
Weight
14 lb (6.4 kg)
-
Exterior Color
Black
-
Accessory Holder/Gel Frame Size
7.5 in (191 mm)
Connections
-
Power Connection
Edison (Local) plug to Neutrik powerCON
-
Power Input
Neutrik powerCON
-
Power Output
Neutrik powerCON
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM, Dimmer
-
DMX Channels
1, 2 or 5
-
Modes/Personalities
3 personalities (UNO, DOS, STD-P)
Electrical
-
Input Voltage
120/230 VAC, 50/60 Hz (switchable)
-
Power Linking
8 units @ 120 V; 16 units @ 230 V
-
Power and Current
182 W, 1.52 A @ 120 V, 60 Hz
-
Power and Current
188 W, .819 A @ 230 V, 50 Hz
-
Breaker Size
T3.15 A, 250 V
Certifications/Qualifications
-
Certifications
CE, MET
-
IP Rating
IP20, dry location
-
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik® powerCON® cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F 7.5″ Barndoor
What's Included
- Ovation FD-205WW
- Neutrik® powerCON® power cord
- Gel frame (7.5 in/190.5 mm accessories)
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Complete Your Rig
Downloads
Manuals | Ovation FD-205WW Quick Reference Guide | Download |
Manuals | Ovation FD-205WW User Manual | Download |
Drawings | Ovation FD-205WW CAD File | Download |
Photometrics | Ovation FD-205WW IES Files | Download |
Photometrics | Ovation FD-205WW Photometric Report | Download |
DMX | Ovation FD-205WW DMX Chart | Download |
Other | Ovation FD-205WW Specification Sheet | Download |
Other | Ovation FD-205WW – Firmware | Download |
Ovation FD-205WW FAQ’s
Yes, it is specifically designed to be a simple, drop-in replacement for older incandescent lights. It automatically senses whether it is connected to a traditional dimming system or a modern constant power setup and works perfectly with either, allowing you to upgrade to LED benefits without costly electrical work.
