    COLORdash Par-Quad 7

    An ultra-compact and durable wash light equipped with seven quad-colored RGBA LEDs to project a vast range of saturated colors and variable white tones without creating multi-colored shadows.
    Its compact size and split-yoke bracket make it perfect for low-profile uplighting and installation in tight spaces for theatrical, architectural, or small event applications.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: COLORDASHPARQUAD7

    COLORdash Par-Quad 7

    Specifications
    		 Download
    COLORdash Par-Quad 7 Quick Reference Guide
    		 Download
    COLORdash Par-Quad 7 User Manual
    		 Download
    COLORdash Par-Quad 7 DMX Chart
    		 Download
    COLORdash Par-Quad 7 CAD File
    		 Download
    COLORdash Par-Quad 7 ShowXpress Profile
    		 Download
    COLORdash Par Quad 7 IES File
    		 Download
    Photometrics Report_COLORdash Par Quad 7
    		 Download
    Download All Resources

    COLORdash Par-Quad 7

    SKU: COLORDASHPARQUAD7

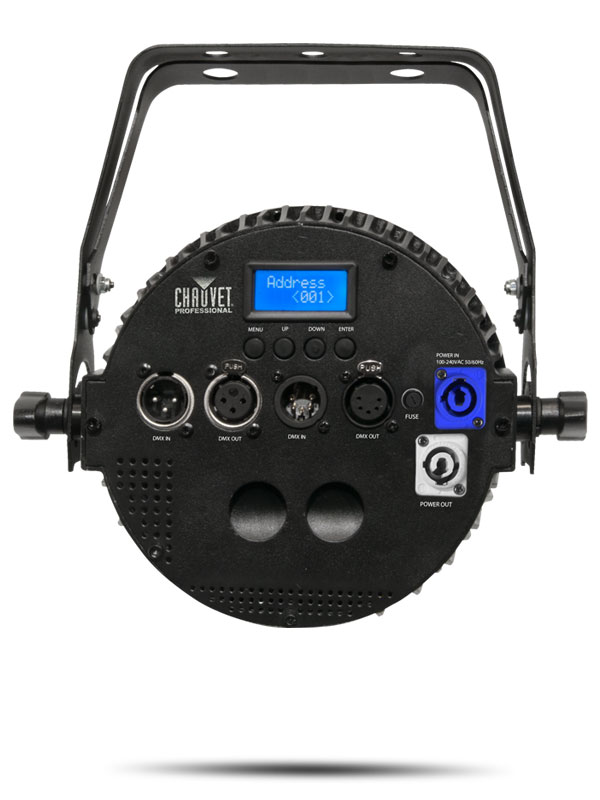

    COLORdash Par-Quad 7 is an ultra compact and durable wash light that fits in places where other fixtures cannot. Seven quadcolored RGBA LEDs project deeply saturated colors and variations of white at a variety of preset Color Temperatures and without multi-colored shadows. A split-yoke bracket eliminates the need for floor stands. Power linking with locking Neutrik® powerCON® power in and out and 3- and 5-pin DMX connectors ease connections and setup. COLORdash Par-Quad 7 also includes a gel frame holder and gel frame.

    Features

    Flexible DMX Control

    Select from 4, 6, or 10 DMX channel modes to suit your specific control needs.

    Silent and Stable Operation

    Enjoy completely silent and flicker-free performance, ideal for broadcast and studio use.

    Lightweight and Compact Design

    Its lightweight body makes for a quick and effortless installation process in any location.

    Durable Metal Housing

    The robust metal construction ensures long-lasting reliability and protection against wear and tear.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        7 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy

      • Color Temperature (range)

        2800 to 10000 K

      • Installed Optics

        20°

      • Beam Angle

        18°

      • Field Angle

        32.5°

      • Illuminance

        434 lux @ 5 m

      • PWM Frequency

        600 Hz

      Dynamic Effects

      • Dimmer

        Electronic

      • Shutter/Strobe

        Electronic

      • Strobe Rate

        0 to 20 Hz

      • Standalone Color Mixing

        Yes

      • Color Temperature Presets

        Yes

      • Dim Modes

        4

      • Built-in Automated Programs

        Yes

      Construction/Physical

      • Dimensions

        9.59 x 4 x 9.93 in (243 x 101 x 252 mm)

      • Weight

        5.4 lb (2.5 kg)

      • Exterior Color

        Black

      • Accessory Holder/Gel Frame Size

        7.5 in/191 mm accessories

      Connections

      • Power Connection

        Local plug to Neutrik powerCON

      • Power Input

        Neutrik powerCON

      • Power Output

        Neutrik powerCON

      • Data Connectors

        3- and 5-pin XLR

      • Cable Length (power)

        5 ft (1.5 m)

      Control

      • Control Protocol

        DMX

      • DMX Channels

        4, 6 or 10

      • Modes/Personalities

        3 personalities (4, 6, 10)

      Electrical

      • Input Voltage

        100 to 240 VAC, 50/60 Hz (auto-ranging)

      • Power Linking

        21 units @ 120 V; 36 units @ 208 V; 39 units @ 230 V

      • Power and Current

        73 W, 0.60 A @ 120 V, 60 Hz

      • Power and Current

        73 W, 0.36 A @ 208 V, 50 Hz

      • Power and Current

        74 W, 0.35 A @ 230 V, 50 Hz

      Certifications/Qualifications

      • Certifications

        CE, MET

      • IP Rating

        IP20, dry location

      Compatible Accessories

      • Professional Clamps: CTC-50HC, CTC-50HCN
      • Neutrik powerCON Cables
      • 3-pin or 5-pin DMX Cables
      • Color Blending Filters: DF60X1D, DF20D

      What's Included

      • COLORdash Par-Quad 7
      • Neutrik powerCON power cord
      • Gel frame holder (7.5 in/191 mm accessories)
      • Gel frame

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      COLORdash Par-Quad 7 Quick Reference Guide
      		Download
      Manuals
      COLORdash Par-Quad 7 User Manual
      		Download
      Manuals
      COLORdash Par-Quad 7 DMX Chart
      		Download
      Manuals
      COLORdash Par-Quad 7 CAD File
      		Download
      Manuals
      COLORdash Par-Quad 7 ShowXpress Profile
      		Download
      Photometrics
      COLORdash Par Quad 7 IES File
      		Download
      Photometrics
      Photometrics Report_COLORdash Par Quad 7
      		Download

      Learn How To Use Your COLORdash Par-Quad 7

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Chauvet Zombie Slayer

        CHAUVET Professional fixtures and atmospheric effects build a terrifyingly immersive world for a simulated zombie invasion. A powerful combination of strobes, washes, and fog transforms the environment, creating a high-impact attraction that engages and frightens guests.

      • CHAUVET Professional Fearless on American Ninja Warrior

        CHAUVET Professional fixtures command the spotlight on the set of “American Ninja Warrior.” Hundreds of wash lights and pixel-mappable panels illuminate the demanding obstacle course, delivering the rugged performance and visual impact required for high-energy broadcast entertainment.

      Video Library

      Latest Articles

      Browse Articles

      KM Productions Takes LAND ROVER to CHAUVET Professional!

      Efficient CHAUVET Professional fixtures illuminate a Land Rover VIP event in Palm Springs.
      Read More

      The Weekly Rig #10, from CHAUVET Professional and Trusst – Duas Arces!

      Explore the ‘Duas Arces’ theoretical concert rig with design notes on backdrops and gobo usage.
      Read More

      THE WEEKLY RIG from CHAUVET Professional and Trusst – WINGS of ICARUS!

      Explore a conceptual concert rig design that uses powerful beams and video panels as scenery.
      Read More

      The Weekly Rig from CHAUVET Professional and TRUSST — Quatuor Erro!

      Explore the power of repetition and symmetry in lighting design with the Quatuor Erro rig concept.
      Read More

      The Weekly Rig from CHAUVET Professional and Trusst – Digital Buddha!

      Explore the Digital Buddha, a pre-designed rig for EDM and bands, featuring versatile pixel-mapping panels and spots.
      Read More

      THE WEEKLY RIG from CHAUVET Professional – The Three Towers!

      This vertical three-tower rig design creates high-impact looks with versatile CHAUVET Professional fixtures.
      Read More

      CHAUVET Professional Beaming at SIEL Show in Paris

      A look at the CHAUVET Professional booth and product showcase at the 2013 SIEL trade show in Paris.
      Read More

      Chauvet Professional, a Hit at Music Florida 2013 Conference

      CHAUVET Professional demonstrated versatile lighting solutions for worship at the 2013 Music Florida conference.
      Read More

      Chauvet Attends JTSE 2012 in Paris

      CHAUVET Professional showcased a versatile range of fixtures at the 16th Salon International des Techniques du Spectacle in Paris.
      Read More

        COLORdash Par-Quad 7 FAQ’s

        Quickly find answers to common questions about setup, operation, and features of the COLORdash Par-Quad 7
        What makes the COLORdash Par-Quad 7 good for small spaces?

        Its ultra-compact and lightweight design allows it to fit into tight spaces where larger lights cannot. It also features a special split-yoke bracket, which lets you place it directly on the floor without needing a separate stand, making it ideal for uplighting walls or highlighting features from discreet locations.

        What kind of colors can the COLORdash Par-Quad 7 produce?

        The fixture uses special quad-color LEDs (Red, Green, Blue, and Amber) to create a vast spectrum of rich, saturated colors. The added amber LED allows it to produce warm, natural-looking whites and beautiful pastels. This advanced technology also ensures smooth color mixing without creating distracting multi-colored shadows.

        Is the COLORdash Par-Quad 7 easy to set up and use?

        Yes, it is designed for easy installation with a lightweight yet durable metal body. For faster setups, you can link the power of multiple units together from a single outlet using locking power cables. It also includes both 3-pin and 5-pin connectors for flexible control system compatibility, making it simple to integrate into any existing lighting rig.
