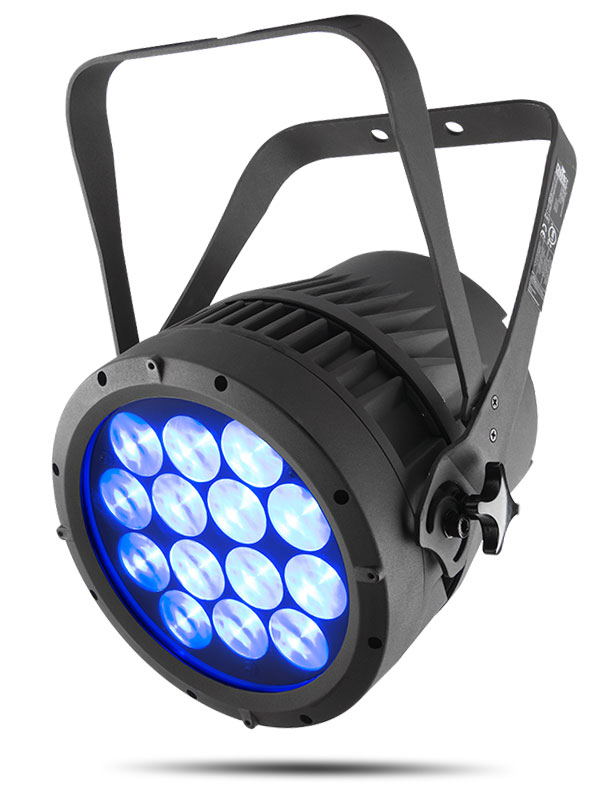

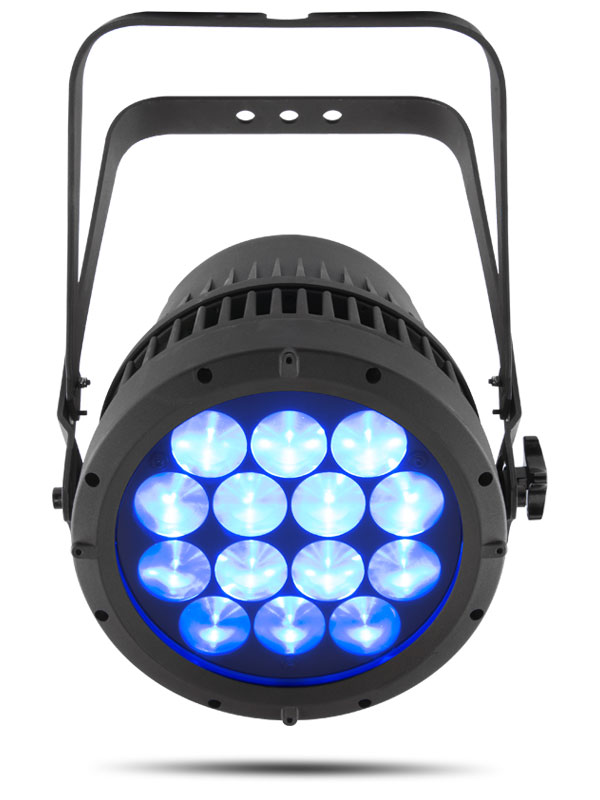

COLORado 2-Quad Zoom

COLORado 2-Quad Zoom is a solid indoor/outdoor wash light featuring 14 bright quad-colored Osram (RGBW) LEDs and a 7° to 45° zoom. Selectable dimming curves facilitate its integration into an existing rig. This excellent LED wash light maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. IP rated power and data connectors allow for easy connections without the need for proprietary cabling.


At a Glance

  • RGBW color mixing via DMX or manually

  • Zoom control via DMX or manually

  • Color temperature presets 3,200 to 10,000 K

  • Built-in auto and custom programs recalled via DMX and Master/Slave

  • 16-bit dimming of individual colors as well as master dimmer

  • Selectable, smooth dimming curves for programming versatility

  • Color macros with included speed adjustment

  • Double-bracketed yoke doubles as a floor stand

  • All environment operation with IP rated power and DMX connections

  • 3- and 5-pin DMX input/output connections

  • LED display with password protection

Specifications

Optical

  • Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Beam Angle: 7° to 29°
  • Field Angle: 14° to 44°
  • Zoom Range: 7° to 45°
  • Illuminance (14°): 8,780 lux @ 5 m
  • Illuminance (44°): 921 lux @ 5 m
  • PWM Frequency: 1,200 Hz

Dynamic Effects

  • Color Macros: 20 macros
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

Construction / Physical

  • Dimensions: 12.9 x 11.1 x 9.2 in (330 x 284 x 236 mm)
  • Weight: 18.8 lb (8.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 9 in (229 mm)

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 4, 5, 6, 7, 12 or 17
  • Modes/Personalities: 10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
  • Power and Current: 201 W, 1.668 A @ 120 V, 60 Hz
  • Power and Current: 208 W, 1.02 A @ 208 V, 60 Hz
  • Power and Current: 208 W, 0.932 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
