New

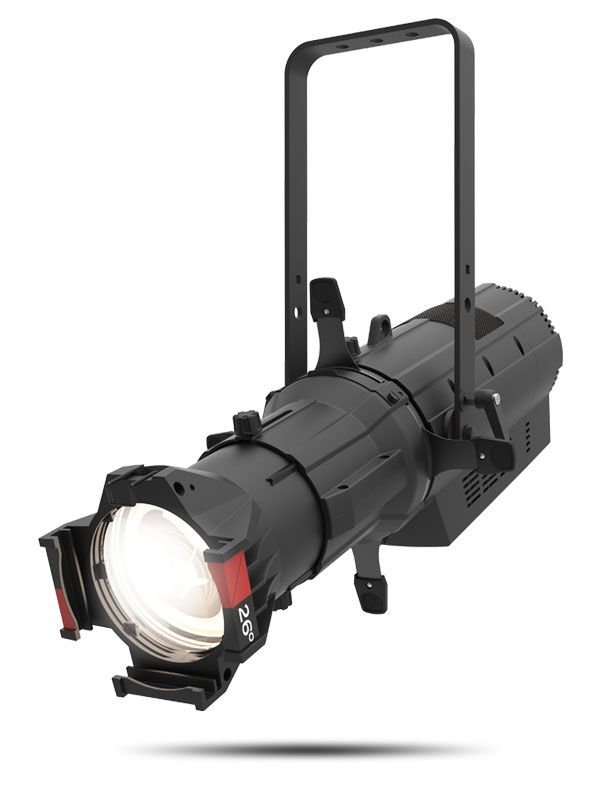

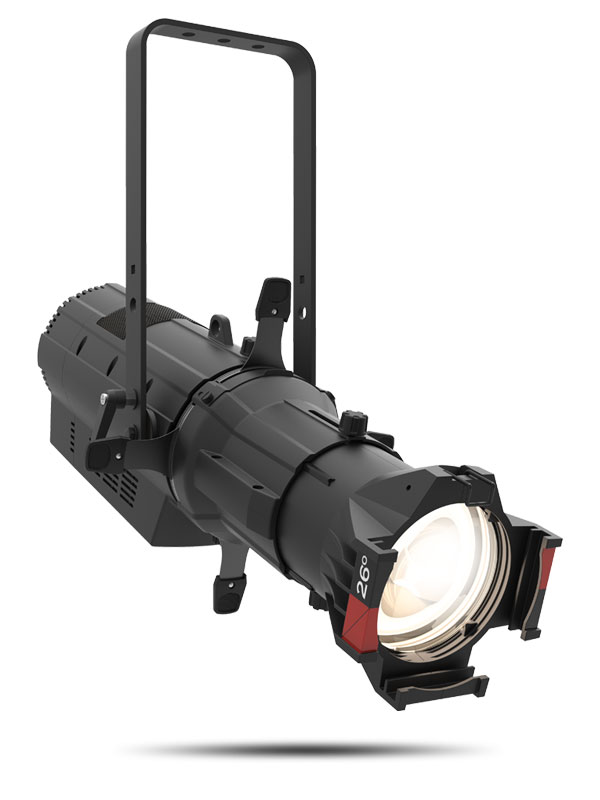

Ovation E-930VW

Ovation E-930VW is a high-performance, variable white ellipsodial style fixture that utilizes our unique 6-color LED system. This fixture projects a bright, beautifully flat field of light in nearly any temperature of white with high CRI and CQS. Each color temperature can be further adjusted for +/- green to perfect the field of light. For times when a splash of color is needed, the fixture can also give you full control of each color of LED as well.

At a Glance

  • Variable white ERS-style lighting fixture for theatre, film and production

  • Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS

  • Beautiful 16-bit dimming

  • Proprietary LED engine delivers tremendous, equal output at all color temperatures

  • +/- Green adjustment via DMX or on-board control

  • Independent color control over the 6-color engine when a splash of color is needed

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

  • Works perfectly with industry standard lens tubes and accessories

Specifications

Optical

  • Light Source: 91 LEDs (6 red, 15 orange-red, 9 green, 12 blue, 10 royal blue, 39 grass-lime) 3 W, (960 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000K
  • CRI: 88-92
  • Beam Angle (w/14° lens): 12°
  • Beam Angle (w/19° lens): 17°
  • Beam Angle (w/26° lens): 22°
  • Beam Angle (w/36° lens): 27°
  • Beam Angle (w/50° lens): 38°
  • Beam Angle (w/15°–30° lens)(Narrow): 10°
  • Beam Angle (w/15°–30° lens)(Wide): 22°
  • Beam Angle (w/25°–50° lens)(Narrow): 20°
  • Beam Angle (w/25°–50° lens)(Wide): 36°
  • Field Angle (w/14° lens):14°
  • Field Angle (w/19° lens):18°
  • Field Angle (w/26° lens): 25°
  • Field Angle (w/36° lens): 33°
  • Field Angle (w/50° lens): 50°
  • Field Angle (w/15°–30° lens)(Narrow): 14°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 22°
  • Field Angle (w/25°–50° lens)(Wide): 39°
  • Lumens (w/14° lens): 4,399
  • Lumens (w/19° lens): 4,817
  • Lumens (w/26° lens): 5,485
  • Lumens (w/36° lens): 5,306
  • Lumens (w/50° lens): 5,037
  • Illuminance (w/14° lens): 6,510 lux @ 5 m
  • Illuminance (w/19° lens): 2,912 lux @ 5 m
  • Illuminance (w/26° lens): 1,782 lux @ 5 m
  • Illuminance (w/36° lens): 1,065 lux @ 5 m
  • Illuminance (w/50° lens): 466 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 7,020 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 1,505 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 2030 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 836 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 28 Hz
  • Focus: Manual
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: No

Construction / Physical

  • Dimensions (fixture only): 24.31 x 11.52 x 10.33 in (617.69 x 287.9 x 262.62 mm)
  • Dimensions (w/26° lens extended): 30.58 x 11.52 x 10.33 in (776.91 x 287.9 x 262.62 mm)
  • Dimensions (w/15°–30° lens): 37 x 11.52 x 10.33 in (939.8 x 287.9 x 262.62 mm)
  • Dimensions (w/25°–50° lens): 29.75 x 11.52 x 10.33 in (755.65 x 287.9 x 262.62 mm)
  • Weight (fixture only): 16.6 lb (7.5 kg)
  • Weight (w/14° lens): 22 lb (9.97 kg)
  • Weight (w/26° lens): 20.6 lb (9.34 kg)
  • Weight (w/15°–30° lens): 29.2 lb (13.24 kg)
  • Weight (w/25°–50° lens): 26.2 lb 11.88 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size (14°, 19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

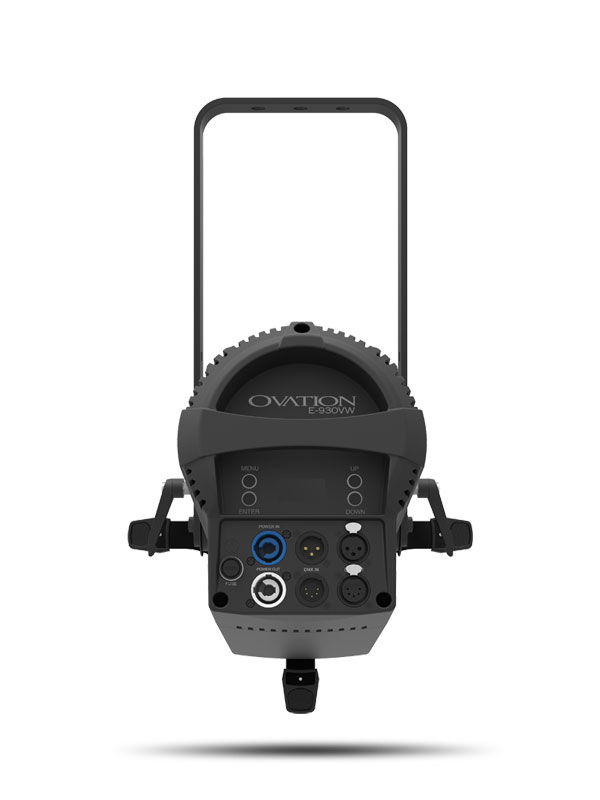

Connections

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 5, 6, 8, 11, 15, 17
  • Modes/Personalities: 6 personalities (3, 5, 6, 8, 11, 15, 17)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 6 units @ 120 V; 11units @ 208 V; 13 units @ 230 V
  • Power and Current: 239 W, 2 A @ 120 V, 60 Hz
  • Power and Current: 243 W, 1.2 A @ 208 V, 60 Hz
  • Power and Current: 245 W, 1 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location

What's Included

  • Ovation E-930VW
  • Neutrik® powerCON® power cord

Required Accessories

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik powerCON cables
  • 3-pin or 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • RDM2go
  • Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
  • Gobo Holder: Ovation B-Size Metal or Glass Gobo Holder
  • Iris: Ovation 20-leaf Iris
