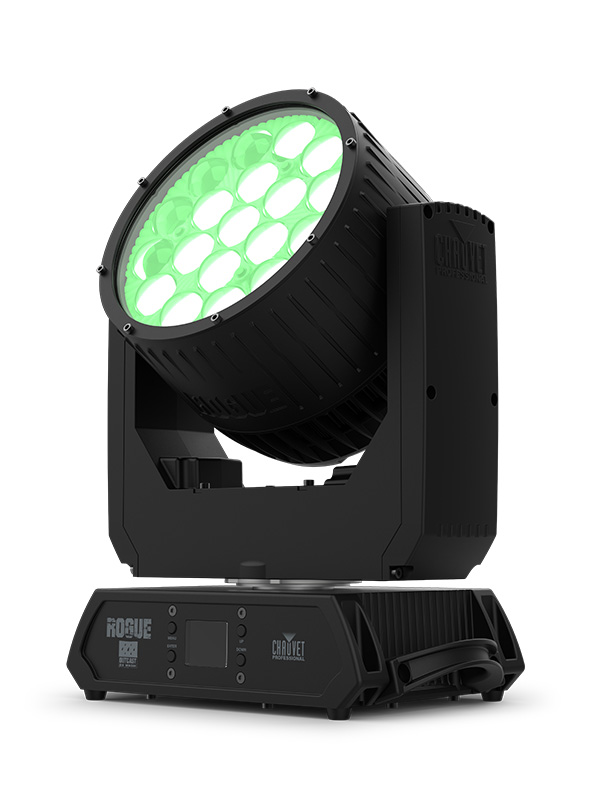

Rogue Outcast 2X Wash
Rogue Outcast 2X Wash is a lightweight IP65 wash that goes wide and hangs anywhere, with a wide zoom range of 8° to 66°, wide 2800 to 10000 K color temp range, wide selection of simple to complex DMX personalities, and a durable alloy housing that suits this versatile workhorse to the widest range of both indoor and outdoor applications, including on-camera use with its user selectable calibrated white. 19 bright 25W RGBW quad-LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming.
At a Glance
Fully featured IP65 rated RGBW LED yoke wash fixture
Durable and lightweight aluminum/magnesium alloy body
Smooth fades with 16-bit individual color and master dimming
8° to 66° zoom
19 RGBW LEDs, 25W each
5-pin DMX input/output connections
5 zones of LED control for pixel mapping control
Fast, smooth pan and tilt movement
RDM enabled for remote addressing and trouble shooting
Selectable PWM options for camera operation
User selectable calibrated white, 7500K default calibration
6 distinct dimming modes for advanced control
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software
Specifications
Optical
- Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 10000 K
- Beam Angle: 8° to 36.1°
- Field Angle: 11.8° to 53°
- Cutoff Range: 17.5° to 66.1°
- Zoom Range: 8° to 66.1°
- Lumens – Source: n/a
- Lumens – Output: 6,258
- Illuminance (11.8°): 8,713 lux @ 5 m
- Illuminance (53°): 694 lux @ 5 m
- Selectable PWM: 600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Curves: 6
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
Construction / Physical
- Dimensions: 11.92x8.58x14.1" (303x218x361mm)
- Weight: 23.4 lb (10.6 kg)
- Exterior Color: Black
- Housing Material: Aluminum/magnesium alloy, High-impact flame-retardant polymer
Connections
- Power Connection: Bare ended to Seetronic IP65 PowerKon
- Power Input: Seetronic IP65 PowerKon
- Power Output: Seetronic IP65 PowerKon
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 15, 17, 22, 33, 54, or 56
- Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
- Power and Current: 291 W, 2.47 A @ 120 V, 60 Hz
- Power and Current: 284 W, 1.41 A @ 208 V, 60 Hz
- Power and Current: 282 W, 1.28 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP65 (temporary wet location)
What's Included
- Rogue Outcast R2X Wash IP
- Seetronic® powerCON® power cord
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- Seetronic IP65 PowerKon cables
- DMX Cables
- Flight Case:CP6CASER2W
