ÉPIX Bar Tour

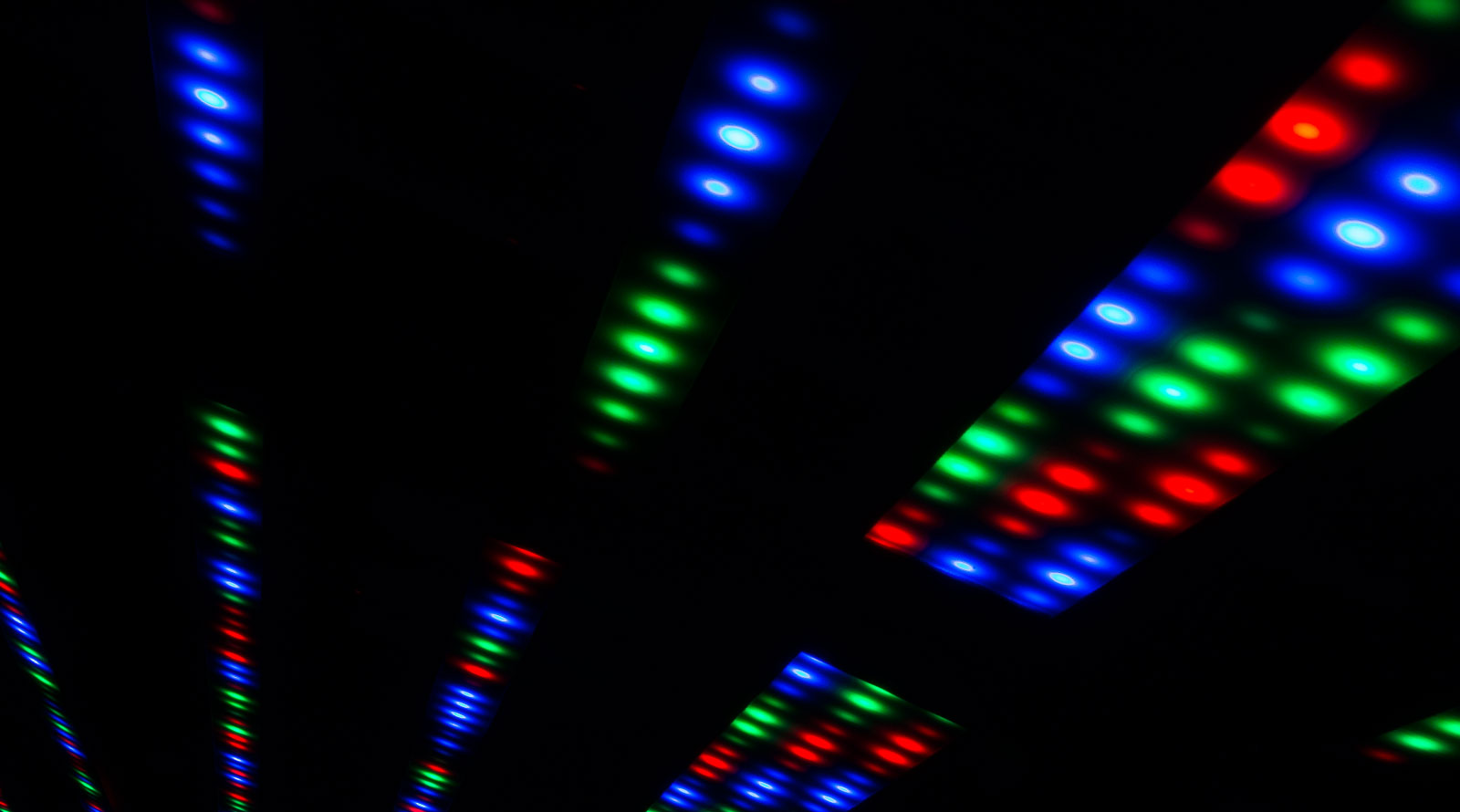

ÉPIX Bar Tour is a pixel-mapping 1-meter LED bar, featuring 150 LEDs in three rows and a 125° viewing angle. Use the ÉPIX Drive 900 to power and control it on Art-Net, Kling-Net, or sACN (streaming ACN).


At a Glance

  • Pixel-mapping 1-meter 50 x 3 LED bar for showing video and/or motion graphics

  • Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output

  • Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.

  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets

  • ÉPIX Drive 900 is required for operation

Specifications

Optical

  • Light Source: 150 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
  • Viewing Angle: 125°
  • Illuminance (white frost filter installed): 2,040 NITS
  • Illuminance (black stealth filter installed): 601 NITS
  • Pixels: 50 x 3
  • Pixel Pitch: 20 mm
  • Refresh Rate: 4,700 Hz (S-PWM)

Dynamic Effects

Construction / Physical

  • Dimensions: 39.37 x 4.72 x 2.36 in (1000 x 120 x 60 mm)
  • Weight: 4.54 lb (2.06 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast

Connections

  • Data Connectors: 4-pin XLR
  • Physical Linking: 6 inline ÉPIX Bar Tour
  • Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
  • Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
  • Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
  • Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last
  • ÉPIX Tour fixture: 300 ft (91 m)
  • Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
  • Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)

Control

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Channels: 450

Electrical

  • Power and Current: 50 W, 0.42 A @ 120 V, 60 Hz
  • Power and Current: 50 W, 0.24 A @ 208 V, 60 Hz
  • Power and Current: 50 W, 0.21 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • ÉPIX Bar Tour
  • White Frost Filter
