Ovation House Light Recess Kit

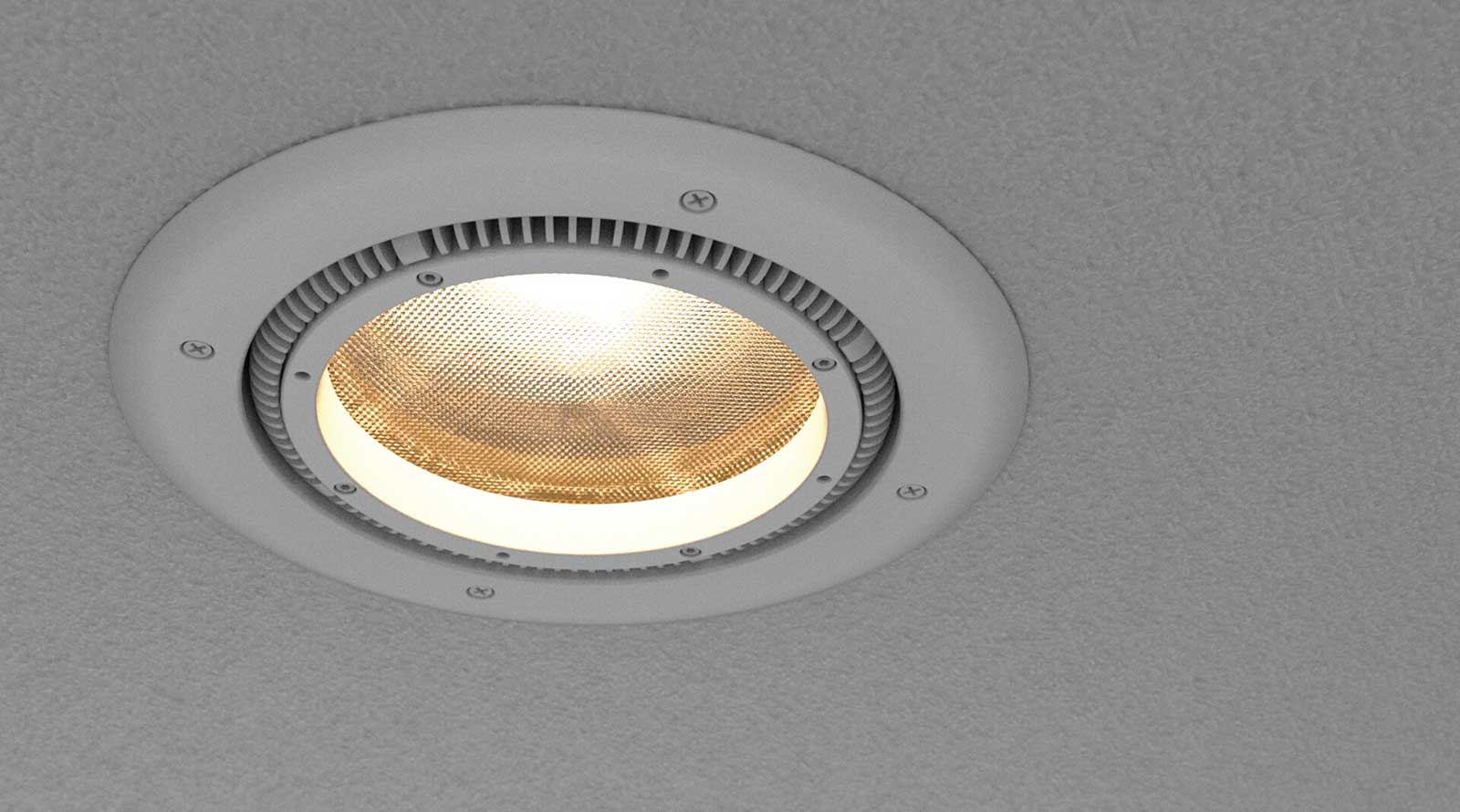

Ovation House Light Recess Kit is an add on accessory for the Ovation H-265WW or Ovation H-605FC. This kit will allow for either fixture to be mounted into drop or other ceilings provided there is adequate plenum space for airflow around the fixture. The kit comes standard in white so it can be easily painted to match any ceiling.


At a Glance

  • Recess and Sconce mounting kit for Ovation H-265WW and H-605FC

Specifications

Construction / Physical

  • Dimensions (Support Rail): 8.27 x 21.67 x 1.10 in (210 x 550 x 28 mm)
  • Dimensions (Recess Kit): 9.43 x 6.88 x 3.22 in (239 x 175 x 82 mm)
  • Dimensions (Sconce Bracket): 7.29 x 3.18 x 1.51 in (185.28 x 80.85 x 38.44 mm)
  • Weight (Support Rail): 3.2 lb (1.45 kg)
  • Weight (Recess Kit): 1 lb (0.45 kg)
  • Weight (Sconce Bracket): 0.6 lb (0.27 kg)
  • Weight (Total): 4.8 lb (2.17 kg)
  • Exterior Color: Black
  • Housing Material: Steel, Aluminum die-cast,

Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location

What's Included

  • OVHLRECESSKIT (Recess Kit and Sconce Kit)

Downloads

 Ovation House Light Recess Kit Installation Guide
 Ovation House Light Recess Kit CAD Drawings
