New

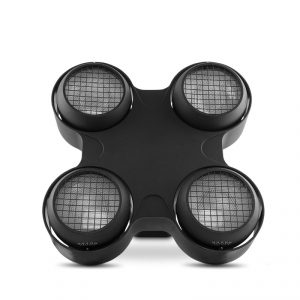

STRIKE P38

STRIKE P38 is a compact, punchy and outdoor-ready blinder and strobe powered by a 90 W warm white LED source. An emulated “amber shift” warms the Color Temperature of the light as it dims to perfectly mimic incandescent lights. IP-rated direct power and DMX connections eliminate undesirable whips. Control it with adjustable PWM and RDM for added flexibility.


At a Glance

  • Intense single pod blinder/strobe rated IP65 for all-weather use

  • Emulated “red shift” to mimic incandescent fixtures perfectly.

  • 16-bit dimming control for smooth, perfect fades

  • Strobe functionality for high-impact effects on-the-fly

  • Easy to use OLED display

  • Adjustable Pulse Width Modulation (PWM)

  • RDM (Remote Device Management) for added flexibility

Specifications

Optical

  • Light Source: 1 LED (WW) 90 W, (1.19 A), 2688 K, 50,000 hours life expectancy.
  • Light Source: 8 LEDs (Amber) 5 W, (0.07 A), 50,000 hours life expectancy.
  • Color Temperature (at full): 2754 K
  • Color Temperature (at 10%): 1899 K
  • CRI: 92
  • Beam Angle: 27°
  • Field Angle: 51°
  • Lumens: 2,186
  • Illuminance: 325 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 11.93 x 10.27 x 7.25 in (303 x 261 x 184 mm)
  • Weight: 8.4 lb (3.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.25 in (159 mm)

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 3, 4, 5 or 6
  • Modes/Personalities: 5 personalities (1ch, 3ch, 4ch, 5ch, 6ch)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 30 units @ 120 V; 50 units @ 208 V; 55 units @ 230 V
  • Power and Current: 54 W, .449 A @ 120 V, 60 Hz
  • Power and Current: 56 W, .267 A @ 208 V, 60 Hz
  • Power and Current: 58 W, .245 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • STRIKE P38
  • Seetronic Powerkon IP65 power cord
  • Gel frame (6.25 in/158.75 mm accessories)

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Seetronic Powerkon power linking cables
  • 5-pin IP or Non-IP DMX Cables
  • Ovation F6.25 Barndoor

Downloads

 STRIKE P38 Quick Reference Guide
 STRIKE P38 User Manual
 STRIKE P38 CAD File
 STRIKE P38 DMX Chart
 STRIKE P38 IES Files
 STRIKE P38 Photometric and Chromaticity Reports
