    REM-RB50CM-2 IP Curve

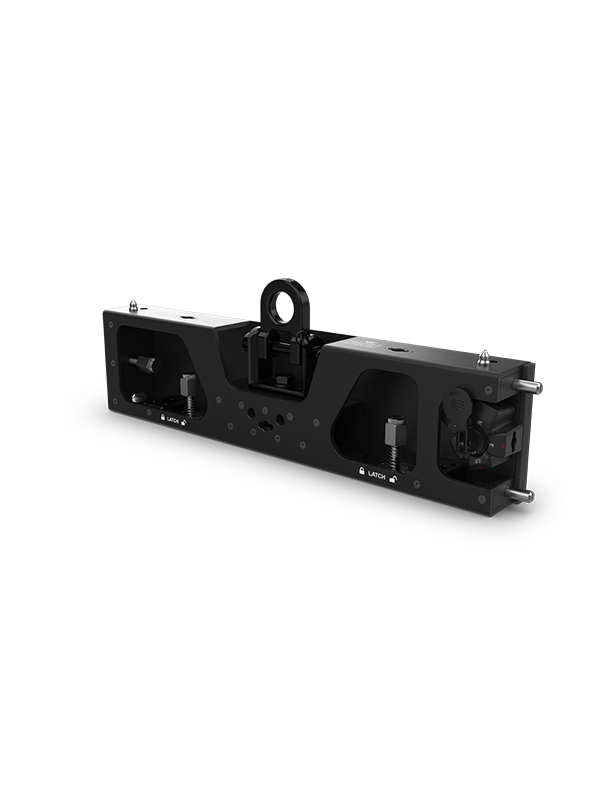

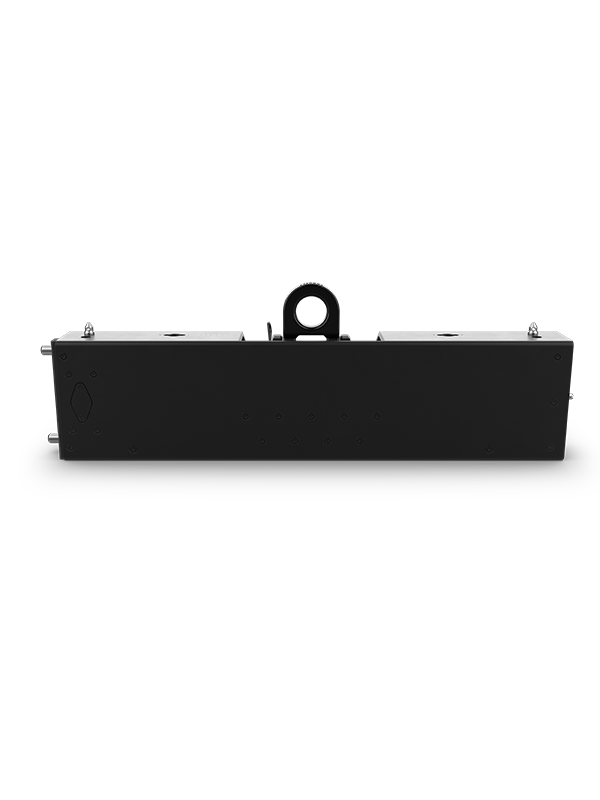

    The REM-RB50CM IP Curve is a rugged, IP65-rated rig bar with an integrated curve receiver designed for both overhead hanging and ground stacking of REM 1 and REM 3 IP video panels.
    Ideal for production and rental applications requiring a versatile, weather-resistant mounting solution for either flying or ground-stacking video walls.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: REMRB50CMIPCURVE-2

    REM-RB50CM-2 IP Curve

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Download All Resources

    REM-RB50CM-2 IP Curve

    SKU: REMRB50CMIPCURVE-2

    Designed to work with REM 1 and REM 3IP video panels (not compatible with older F-series Rig Bars), REM-RB50CM IP Curve is a rugged IP65-rated rig bar that comes with an integrated curve receiver and performs dual functions. It may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUND STACK KIT.

    OPTIONAL ACCESSORIES

    • Clamps

    Features

    Versatile Mounting

    Use this REM Rig Bar for both overhead hanging and ground stacking applications.

    CHAUVET REM Compatibility

    Designed to work seamlessly with CHAUVET REM series video panels.

    Included Clamp Bracket

    The DRB-CTC attachment bracket allows for direct connection to TRUSST CTC-50HC clamps using M12 bolts.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

    Specifications

    Download Product Specs

    Construction/Physical

    • Dimensions

      19.67 x 2.36 x 4.72 in (499.6 x 60 x 120 mm)

    • Weight

      16.8 lb (7.62 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum extrusion, stainless steel

    Clamp

    • Load Capacity (Hanging)

      1,760.6 lb (345 kg)

    • Load Capacity (Stacking)

      1,752.7 lb (795 kg)

    • Recommended Shackle Sizes

      : 1/2”, 5/8”

    Certifications/Qualifications

    • IP Rating

      IP65, temporary outdoor/wet use

    Required Accessories

    • Required Software: CHAUVET LED Studio and Windows7
    • Controller (required): EPIX Drive 642
    • Accessories (required): VIP Driver
    • Compatible Mounting Options: MVP Rig Kit (truss mounting), PVPs Rig Kit (truss mounting), PVPs Rig Bar (0.5 m)(truss mounting), PVPx Rig Bar (0.5 m and 2 m)(truss mounting), M10 Bolt/Clamp (rear mounting), M12 Bolt/Clamp (rear mounting) (Video and Pixel products only)

    Compatible Accessories

    • VIP Signal Distributor, VIP Media Server
    • ArKaos Media Master Express + KN software
    • Controllers (optional): IRC, FCW, ACW, FCT, FCM
    • Clamps
    • Barn Doors
    • Neutrik powerCON cables
    • DMX Cables
    • Flight Cases
    • Etc.

    What's Included

    • 1pc REM Rig Bar-50 cm (REM-F50CMIP)
    • 1pc clamp attachment bracket (DRB-CTC)
    • 1pc clamp bolt for TRUSST CTC-50HC

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Downloads

    Download All
    Manuals
    REM-RB50CM IP Curve – Quick Reference Guide
    		Download

    REM-RB50CM-2 IP Curve FAQ’s

    Quickly find answers to common questions about setup, operation, and features of the REM-RB50CM-2 IP Curve
    What is the REM-RB50CM-2 IP Curve used for?

    The REM-RB50CM-2 IP Curve is a versatile mounting bar designed specifically for REM series video panels. It allows you to safely hang your video wall from overhead rigging, create a stable ground-stacked video wall, or even build unique concave or convex curved screen designs.

    Can the REM-RB50CM-2 IP Curve be used outdoors?

    Yes, this rigging bar is designed to be weatherproof, making it a reliable choice for temporary outdoor events or productions where it might be exposed to rain. It ensures your video wall setup remains secure, even in wet conditions.

    How does the REM-RB50CM-2 IP Curve create curved video walls?

    This rigging bar has a built-in curving mechanism that lets you connect REM video panels at specific angles. This feature gives you the creative freedom to easily build impressive concave (inward) or convex (outward) curved video screens for a more dynamic visual experience.
