onAir IP Panel 1

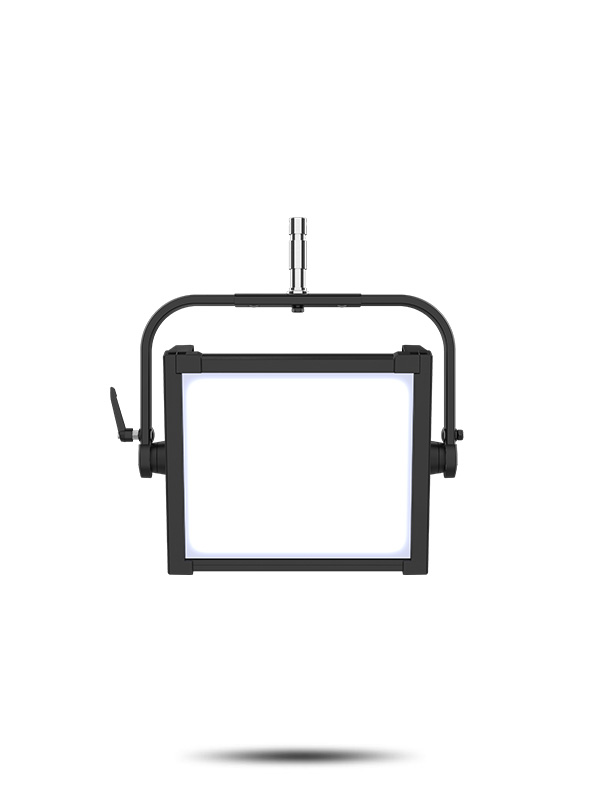

onAir Panel 1 IP is a rugged IP65, full-spectrum LED soft light with a 1×1 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 1 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.


At a Glance

  • Full-spectrum LED 1x1 format soft light panel style fixture for broadcast, film, and special events

  • IP65 rating for all weather use indoors or out.

  • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

  • Virtual color wheel with color matched to popular gel colors

  • +/- Green adjustment and emulated red-shift via DMX or on-board control

  • RDM (Remote Device Management) and CRMX Wireless Control for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio applications

  • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.

  • Easily switch mounting options from Jr Pin to Omega Bracket

  • Drop-in slot for diffusers and intensifier filter (sold separately)

  • Rugged design for years of rough use in the most extreme conditions.

  • Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.

  • USB port for fixture software updates

  • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

Specifications

Optical

  • Light Source: 224 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.
  • Light Source: 224 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 7566 K
  • CRI: 95
  • Beam Angle: 99.3°
  • Field Angle: 154°
  • Lumens: 10,092
  • Illuminance: 165 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 28 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 22 x 5.74 x 21.81 in (559 x 146 x 554 mm)
  • Weight: 28 lb (12.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Power Input: 28 VDC, 3-pin IP65 XLR
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® Compatible
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: USB

Control

  • Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
  • DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16
  • Art-Net Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16
  • Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8Ch1, 8Ch2, 10, 11, 15Ch1, 15Ch2, 16)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V, 17 units @ 240 V
  • Power and Current: 184 W, 1.524 A @ 120 V, 60 Hz
  • Power and Current: 187 W, .891 A @ 208 V, 60 Hz
  • Power and Current: 180 W, .824 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC,
  • IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • onAir Panel 1 IP
  • Seetronic Powerkon IP65
  • Omega bracket with mounting hardware
