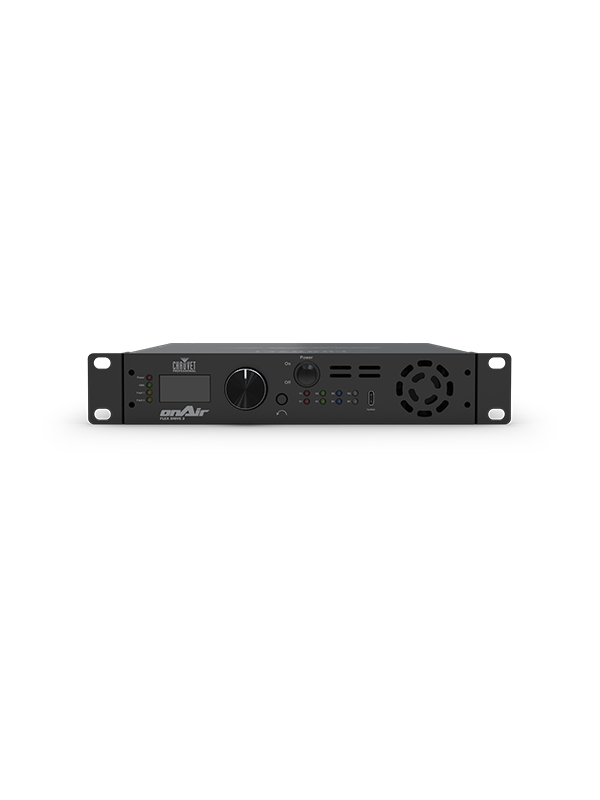

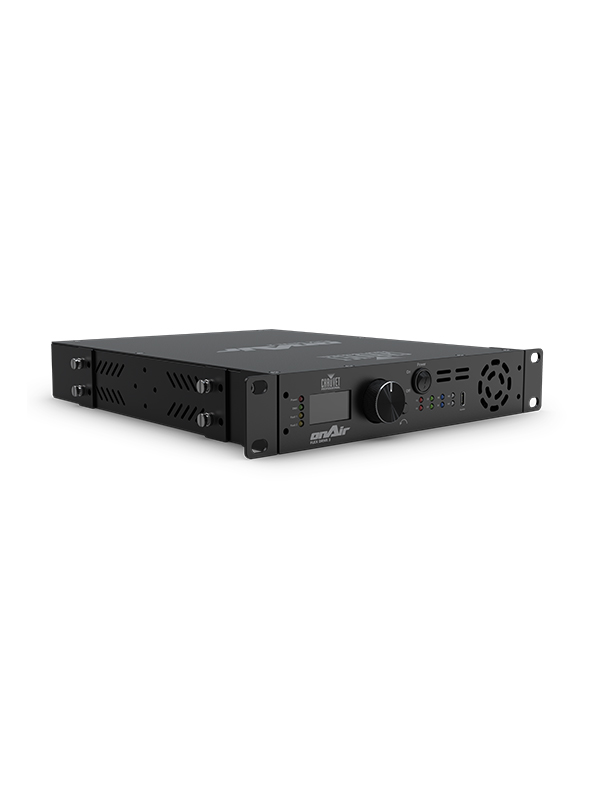

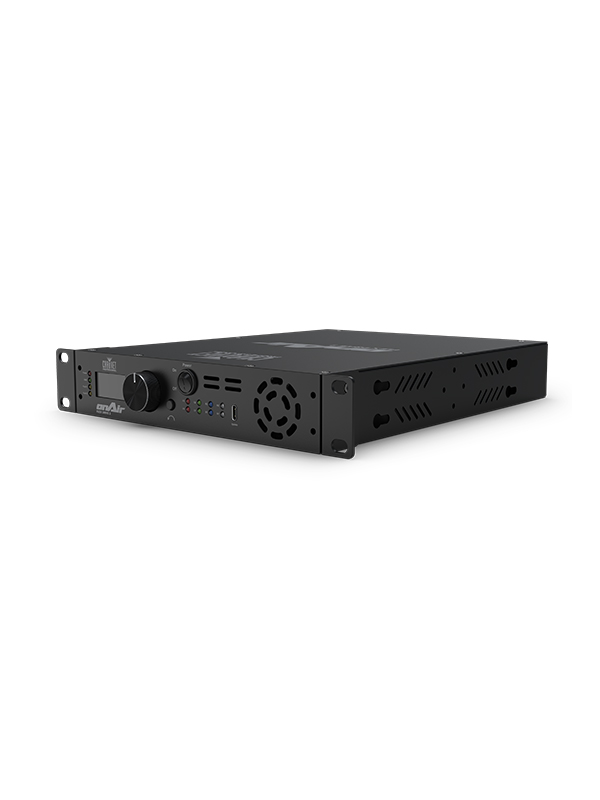

onAir Flex Drive 2

onAir Flex Drive 2 is an LED Driver ideal for TV studios seeking simple and impactful on-camera looks with integrated power supply and driver for a one-box modular solution. onAir Flex Drive 2 features 24v to allow longer run lengths for set pieces and light boxes, and 8 channels of output for complete flexibility with a choice of tapes and lengths. It also features adjustable PWM, making it ideal for broadcast compatibility. With two outputs, onAir Flex Drive 2 supports RGBW or generic 4-channel control for up to 350W of total power and assisted convection cooling perfect for studio environments. To ease installation, onAir Flex Drive 2 also features DMX 5pin and Phoenix connector for installation support.


At a Glance

  • TV focused 24 VDC constant voltage LED Driver with integrated power supply

  • Adjustable PWM makes this product ideal for broadcast compatibility

  • Two outputs support RGBW or generic 4-channel control for up to 350W of total power

  • Assisted convection cooling utilizes a quiet fan for studio environments

  • Built in overcurrent and short circuit protection with indicator LEDs

  • RDM supported for remote device management

  • Scalable rack mount system, two per 1U space

  • DMX 5pin and Phoenix connector for installation support

Specifications

Dynamic Effects

  • Standalone Color Mixing: Yes
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 5.4 x 4.3 x 0.8 in (137 x 109 x 20 mm)
  • Weight: 5.4 lb (2.44 kg)
  • Exterior Color: Black
  • Housing Material: Steel
  • Rackmount: 1U

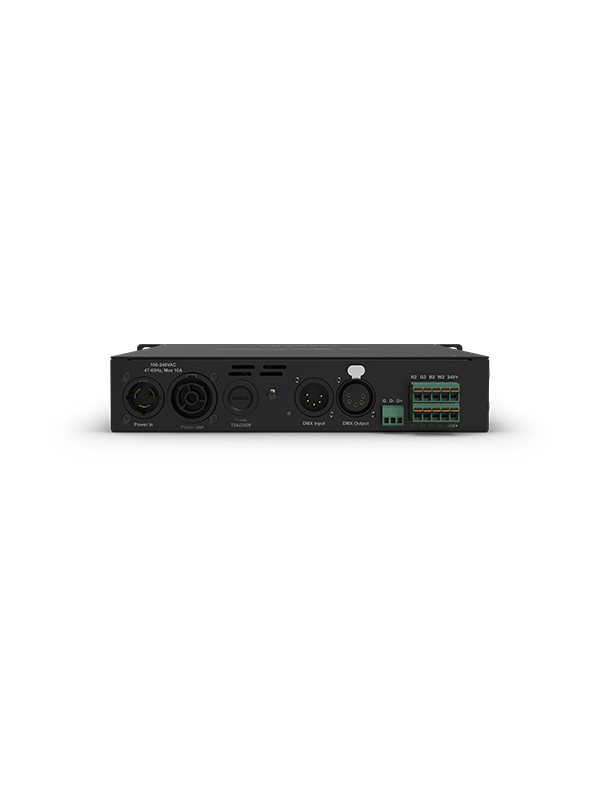

Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON TRUE1 Compatible
  • Power Input: Seetronic Powerkon (powerCON Compatible)
  • Power Output: Seetronic Powerkon (powerCON Compatible)
  • Device Outputs (5-pin Phoenix Connector): 2
  • Physical Linking Per Port: 2 RGBW Tape
  • Data Connectors: 5-pin XLR, 3 Pin Phoenix Connector
  • Cable Length (power): 5 ft (1.5 m)
  • Total Max Cable Extension Length Per Port: 100 ft (30.48m) 16 AWG

Control

  • Control Protocol: DMX
  • DMX Channels: 8 or 10
  • Modes/Personalities: RGBW, RGBW+D
  • Total Output Power (Per Port): 200 W
  • Total Output Power (Total): 350 W

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;
  • Power and Current: 400 W, 3.34 A @ 120 V, 60 Hz
  • Power and Current: 400 W, 1.93 A @ 208 V, 60 Hz
  • Power and Current: 400 W, 1.74 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE
  • US Safety: UL 8750
  • Canadian Safety: CSA C22.22 No. 250.13
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • onAir Flex Drive 2
  • Neutrik powerCON TRUE1 power cord
