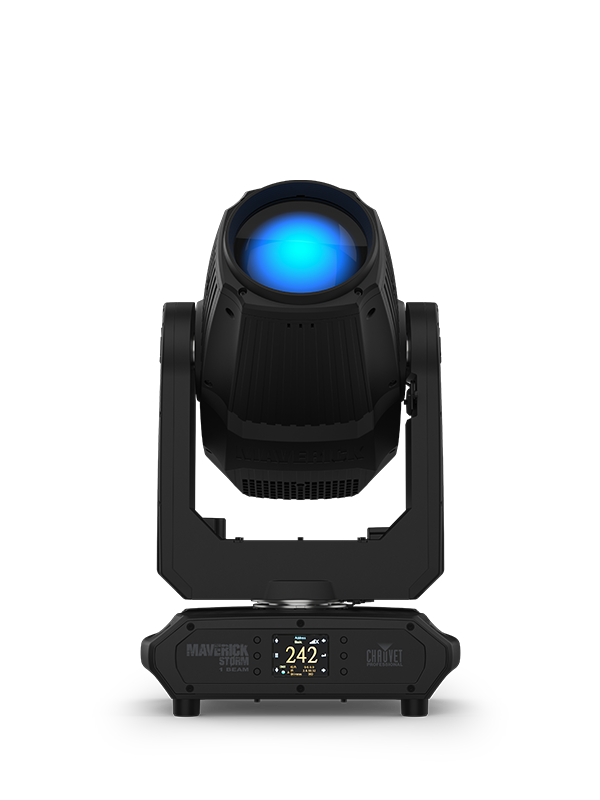

Maverick Storm 1 Beam

Maverick Storm 1 Beam brings CMY color mixing and stadium-scale output in a lightweight compact alloy-armored IP65-rated fixture that delivers sharp beam effects and precise color. With an optical system designed to capture the full force of its SIRIUS HRI 310W source, this powerful beam fixture slices through every other effect. Tightly focused aerials and dual layerable independent prisms create massive visual effects, with frost to fine-tune looks and light distribution. Maverick Storm 1 Beam speaks DMX, ArtNet, sACN, RDM and W-DMX.


At a Glance

  • Fully featured, IP65 rated, high powered Beam fixture with an OSRAM SIRIUS HRI 310 W lamp 6,000 hour life expectancy lamp, CMY color mixing, 1 gobo wheel, 2 layerable prisms, precision focus, and lightweight aluminum/magnesium housing

  • CMY Color mixing

  • 13 + open color wheel

  • Frost for even light distribution

  • Tight 1.3° narrow beam angle for focused air effects and no field spill

  • Individually controllable and layerable 5 facet linear and 8 facet round prisms for maximizing visual impact

  • 17 static gobos for massive visual effect

  • DMX, RDM sACN, ArtNet, and WDMX protocol control

  • True 1 compatible power input

  • Easy to read OLED display with simple, effective menu options

  • Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost

Specifications

Optical

  • Light Source: SIRIUS HRI 310 W lamp 7650K, 6,000 hours life expectancy
  • Color Temperature (at full): 7178 K
  • CRI: 80.1
  • Beam Angle: 1.3°
  • Field Angle: 2.3°
  • Cutoff Angle: 3 °
  • Lumens – Output: 30,639
  • Illuminance (total): 190,709 lux @ 15 m

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 14 + white, split colors, continuous scroll at variable speeds
  • Gobos: 17 + open (17 metal), continuous scroll at variable speeds
  • Gobo Size (1): Gobo Wheel 1 (static): 123 mm (outside), 6 mm (image), 1 mm (max. thickness)
  • Dimmer: Motorized
  • Shutter/Strobe: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Prism: 8 Facets, motorized, rotating
  • Move-in-Black: Yes

Construction / Physical

  • Dimensions: 15.28 x 10.04 x 25.91 in (388 x 255 x 658 mm)
  • Weight: 51.2lb (23.3 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP rated
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM, ArtNet, sACN, Lumen Radio
  • DMX Channels: 19 or 21
  • Modes/Personalities: 2 personalities (19, 21)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 482 W, 4.070 A @ 120 V, 60 Hz
  • Power and Current: 469 W, 2.334 A @ 208 V, 60 Hz
  • Power and Current: 467 W, 2.011 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC, UKCL, CB
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Noise Level (Idle): 52.0 dB(A) @ 1 m
  • Noise Level (Max): 52.4 dB(A) @ 1 m
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included

  • Maverick Storm 1 Beam
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware
  • Quick Reference Guide

Optional Accessories

  • Professional Clamps : CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • DMX Cables
  • IP Rated Seetronic® Powerkon Extensions
  • Upload 08 Software Uploader
  • Micro T-1 TRX G6 WDMX Transceiver
