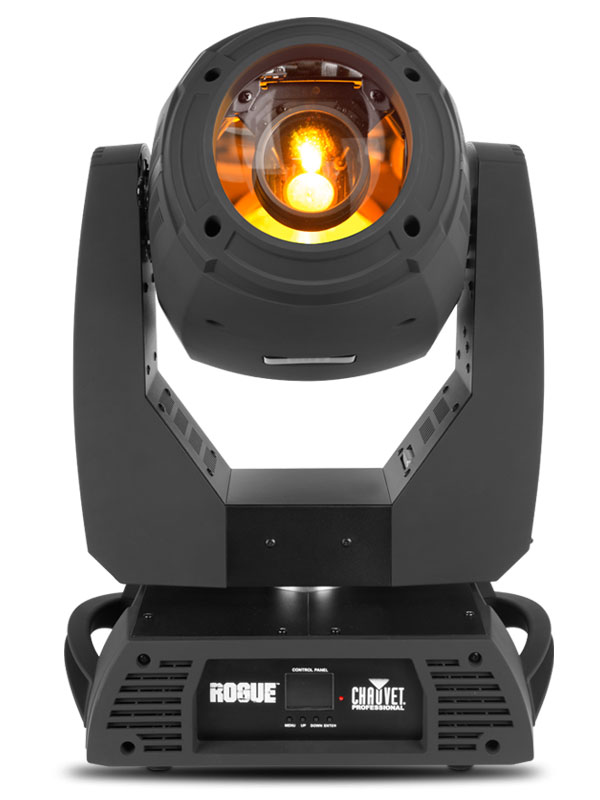

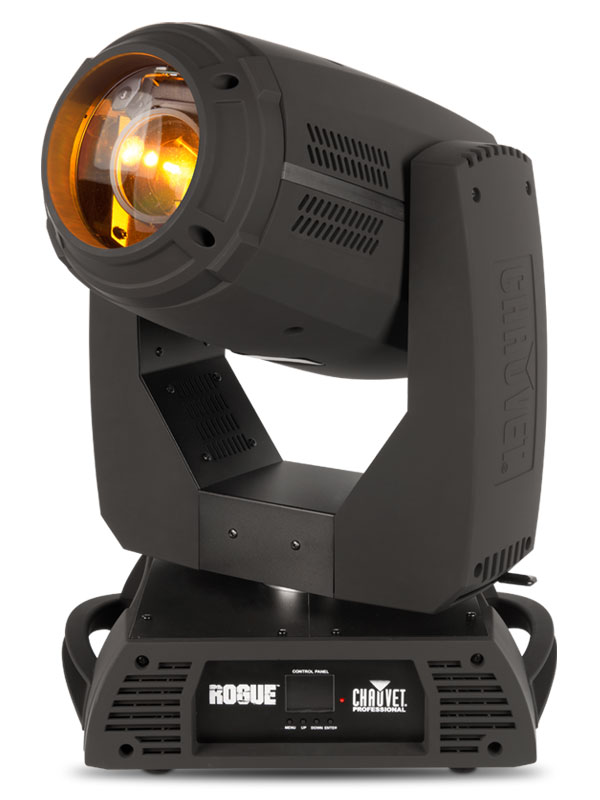

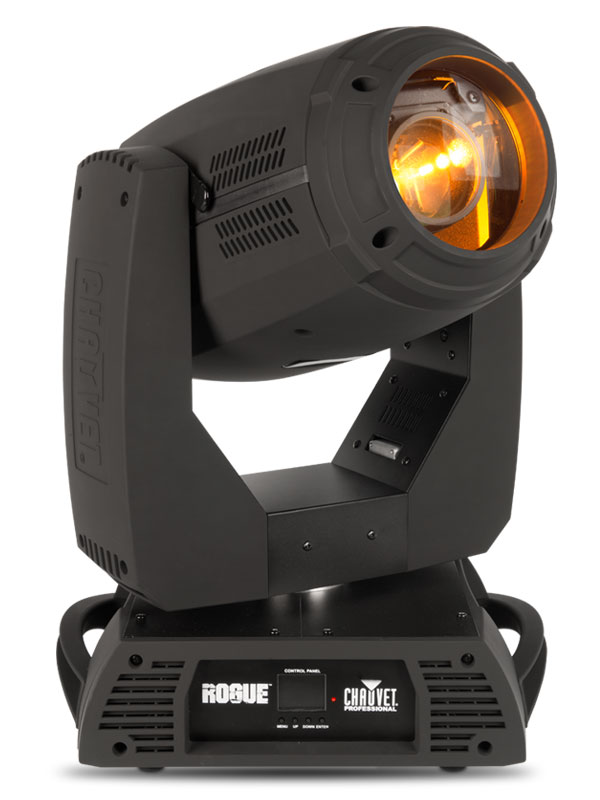

Rogue RH1 Hybrid

Rogue RH1 Hybrid beam and spot possesses an unrivaled optical system with 8-facet and 6-facet prisms that are completely layerable and controllable. Powered by a 330 W Osram Sirius lamp, Rogue RH1 Hybrid delivers an ultra-intense output of 111,000 lux @ 15 m with tight beam angles of 2.5º – 8° in Beam mode and a zoom range of 5 – 19° in Spot mode and 18° – 38° in Wash mode. Indexing and static scrolling gobo wheels and a 13-hue color wheel add to the stunning visual effects that this amazing tool can create.

parnelli_2015

At a Glance

  • Osram Sirius lamp, 330 W X8, 8,000 K, 1,500 hours life expectancy

  • 3- and 5-pin DMX input/output connections

  • Fast, smooth, and precise pan and tilt operation

  • 111,000 lux at 15 m in beam mode

  • Omega mounting bracket, fits all Rogue, Next, and Legend fixtures

  • Two prisms, 6-facet and 8-facet, independently controllable for and overlapable amazing gobo effects

  • Two gobo wheels, 1 rotating and 1 static wheel for dynamic projection images

  • 2.5° to 8° zoom in beam mode, 5° to 19° zoom in spot mode for variable beam size options

Specifications

Optical

  • Light Source: Osram Sirius 330 W X8 lamp, 8000 K, 1,500 hours life expectancy
  • Color Temperature (at full): 6655 K
  • Beam Angle: 3° to 10° (Spot mode)
  • Field Angle: 5° to 19° (Spot mode)
  • Beam Angle: 1° to 4.5° (Beam mode)
  • Field Angle: 2.5° to 8° (Beam mode)
  • Beam Angle: 10° to 20° (Wash mode)
  • Field Angle: 18° to 38° (Wash mode)
  • Zoom Angle (Spot mode): 5° to 19°
  • Zoom Angle (Beam mode): 2.5° to 8°
  • Zoom Angle (Wash mode): 18° to 38°
  • Lumens – Source: 12,500
  • Lumens – Output: 9,500
  • Illuminance (5°): 112,200 lux @ 5 m
  • Illuminance (18°): 5,120 lux @ 5 m
  • Illuminance (19°): 8,230 lux @ 5 m
  • Illuminance (38°): 925 lux @ 5 m
  • Illuminance (2.5°): 111,000 lux @ 15 m
  • Illuminance (8°): 7,320 lux @ 15 m

Dynamic Effects

  • Pan and Tilt: 540°/260°
  • Pan and Tilt Ranges: 180°, 360°, 540°pan/90°, 180°, 260° tilt
  • Colors: 13 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 13 + open (13 metal), continuous scroll at variable speeds
  • Gobos (2): 9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 2 (rotating glass): 15.6 mm (outside), 13.4 mm (image), 1.1 mm (max. thickness)
  • Dimmer: Motorized
  • Shutter/Strobe: Motorized
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Prism (1): 6 Facets, motorized, rotating
  • Prism (2): 8 Facets, motorized, rotating
  • Move in Black: Yes
  • Dim Modes: 2

Construction / Physical

  • Dimensions: 16.1 x 12.9 x 25.8 in (409 x 327 x 638 mm)
  • Weight: 55.2 lb (25.1 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

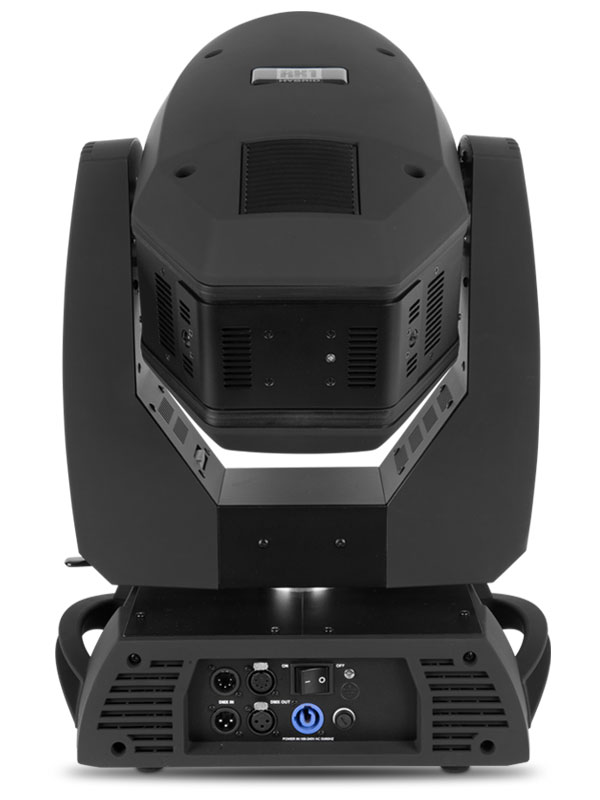

Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX
  • DMX Channels: 20 or 25
  • Modes/Personalities: 2 personalities

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 548 W, 4.53 A @ 120 V, 60 Hz
  • Power and Current: 545 W, 2.54 A @ 208 V, 60 Hz
  • Power and Current: 522 W, 2.30 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location

What's Included

Required Accessories

Optional Accessories

Download Product Specs

Downloads

Videos

Prism Power! ROGUE RH1 Hybrid from CHAUVET Professional

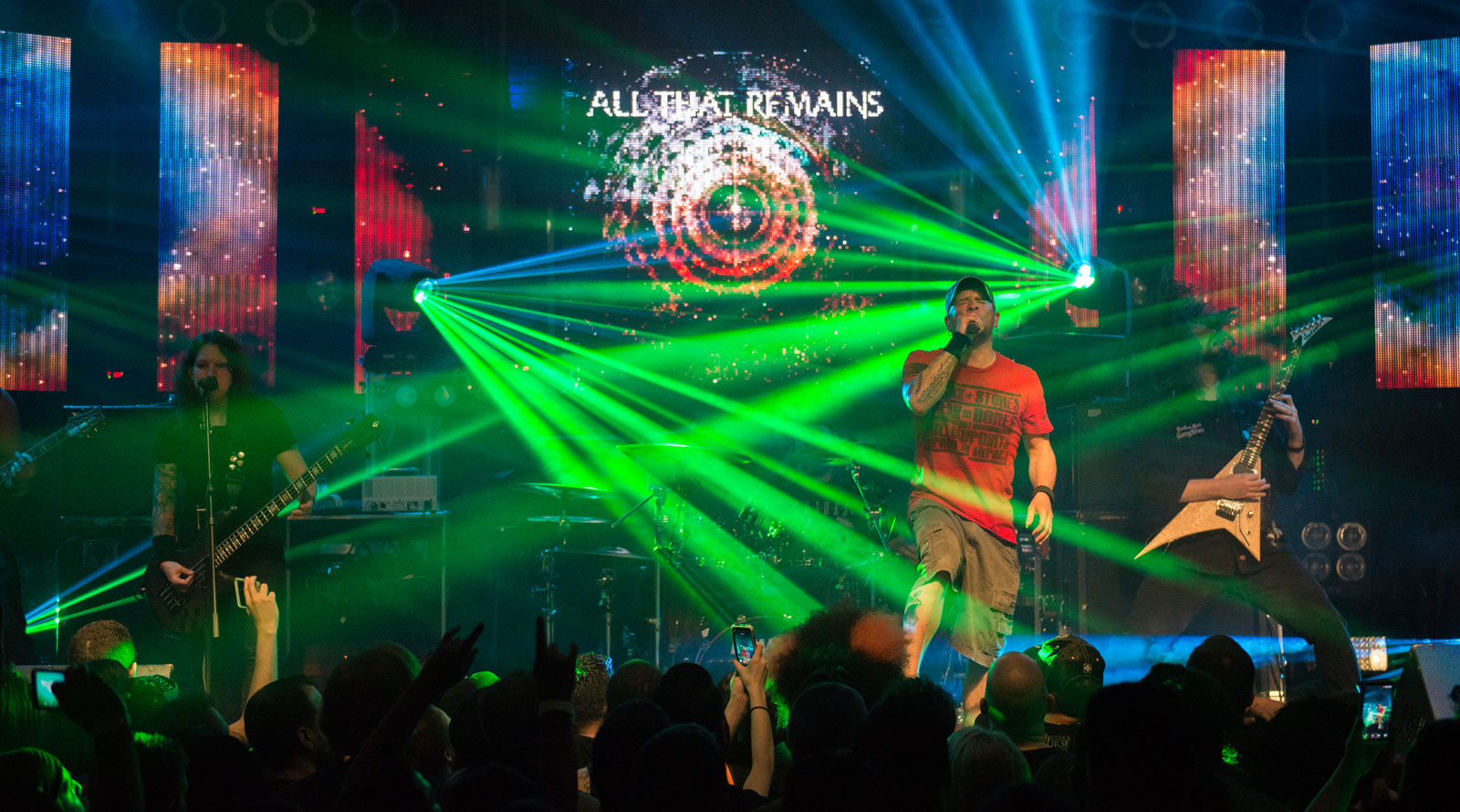

Behind the Scenes with All That Remains -- CHAUVET Professional
