Color STRIKE M

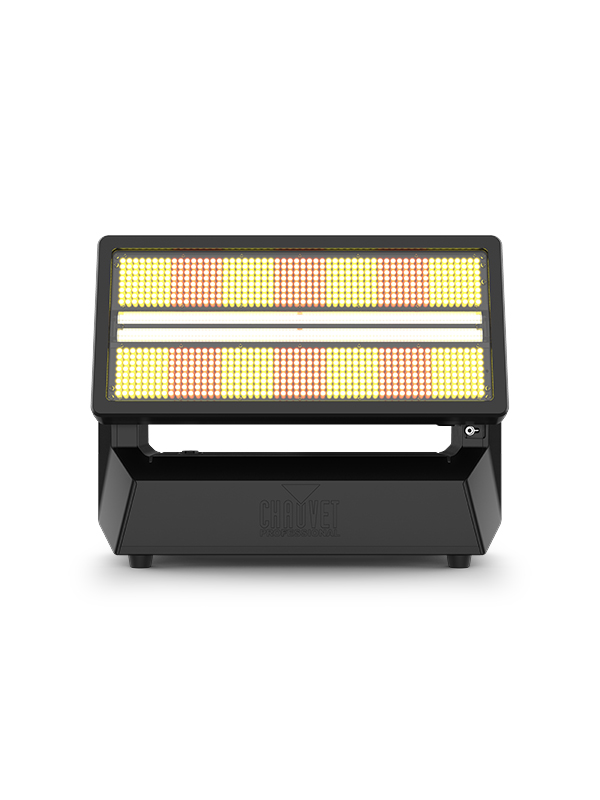

Color STRIKE M is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need. The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle. Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements. DMX, Art-net, and sACN control. All LEDs feature 16-bit dimming for smooth fades and Pulse Width Modulation for on-camera use.


At a Glance

  • High-power, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use.

  • 14 controllable sections of RGB LEDs and 28 sections of control of the white strobe LEDs.

  • Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options in vertical and horizontal orientations

  • Multitude of built-in effect macros with control parameters

  • DMX, ArtNet and sACN control capability

  • 16-bit dimming control for smooth, perfect fades

  • Easy to use OLED display

  • Rugged design for years of rough use in the most extreme conditions.

  • Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility

  • USB port for fixture software updates

  • Built-in alignment pins to insure perfectly straight linear arrays

Specifications

Optical

  • Light Source: 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy
  • Light Source: 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy
  • Color Temperature (at full): 7757 K
  • CRI: 90.3
  • Beam Angle (Combine): 98° x 57°
  • Beam Angle (Plate): 123°
  • Beam Angle (Beam): 95° x 50°
  • Field Angle (Combine): 146° x 122°
  • Field Angle (Plate): 160°
  • Field Angle (Beam): 138° x 100°
  • Lumens (Combined): 71,620
  • Lumens (Plate): 18,600
  • Lumens (Beam): 54,381
  • Illuminance (Combined): 1591 lux @ 5 m
  • Illuminance (Plate): 231 lux @ 5 m
  • Illuminance (Beam): 1432 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

  • Tilt: 180°
  • Tilt Ranges: 0° to 180°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)
  • Weight: 26.6 lb (12.1 kg)
  • Exterior Color: Black
  • Housing Material: Magnesium alloy

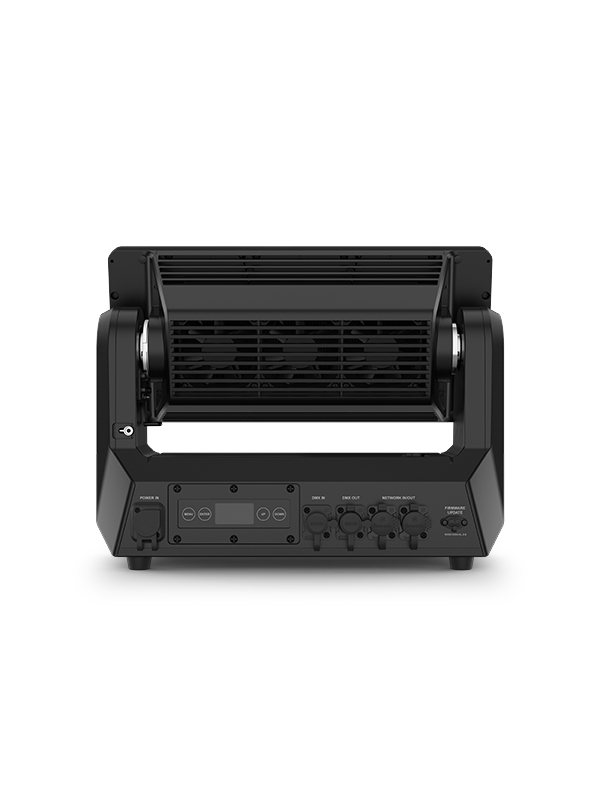

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, DMX, RDM, sACN
  • DMX Channels: 8, 11, 13, 24, 30, 47, 74 or 97
  • Art-Net Channels: 8, 11, 13, 24, 30, 47, 74 or 97
  • Modes/Personalities: 8 personalities (8, 11, 13, 24, 30, 47, 74, 97)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz
  • Power and Current: 740 W, 6.36 A @ 120 V, 60 Hz
  • Power and Current: 716 W, 2.35 A @ 208 V, 60 Hz
  • Power and Current: 696 W, 3.27 A @ 230 V, 50 Hz
  • Power and Current: 709 W, 3.02 A @ 240 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC,
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included

  • Color STRIKE M
  • Seetronic Powerkon IP65 power cord
  • Omega bracket

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • IP Rated Seetronic® Powerkon Extensions
  • IP Rated DMX cables
  • IP Rated EtherCon Cables
  • UPLOAD 03 software uploader
