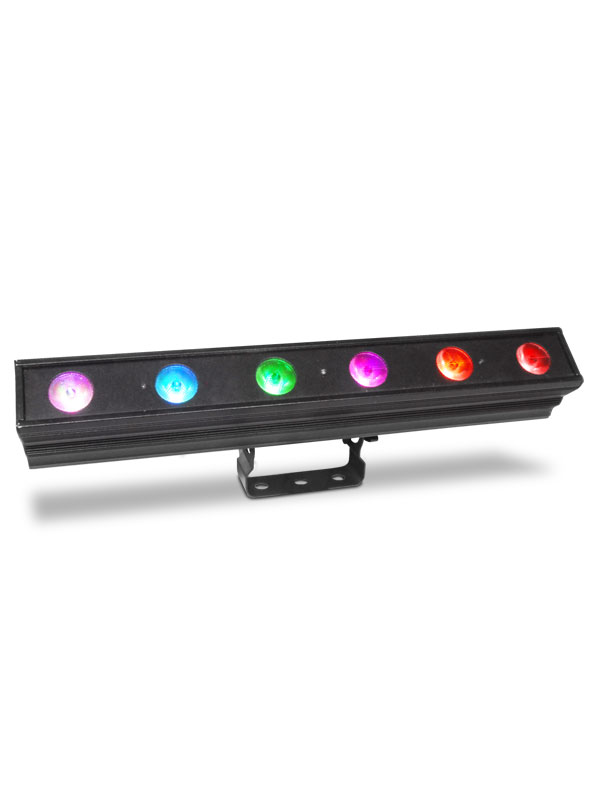

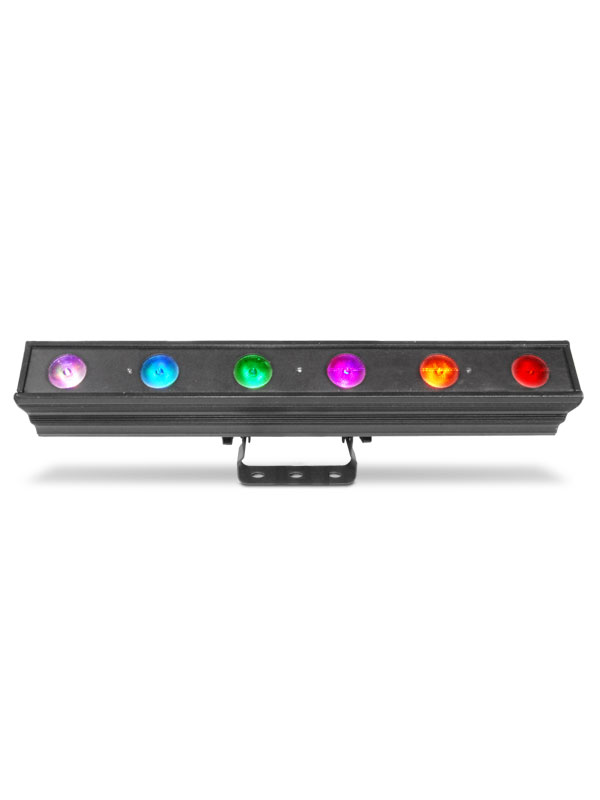

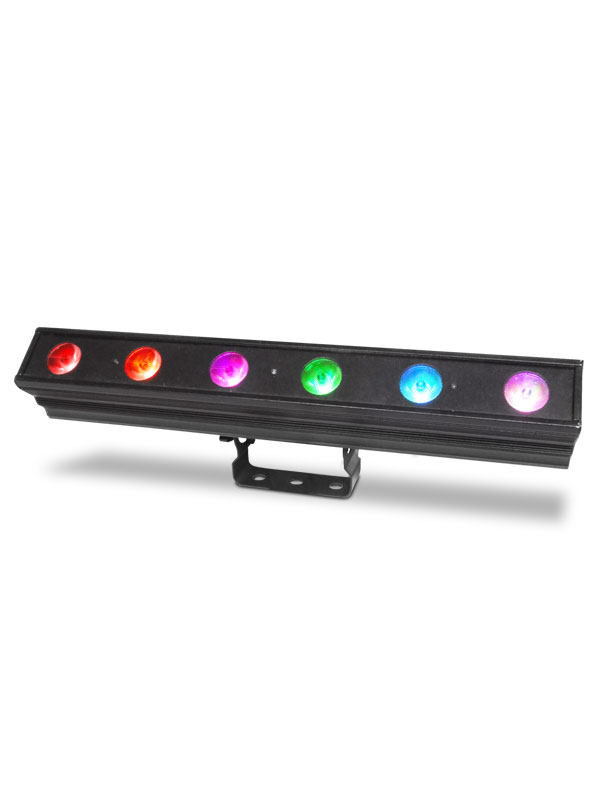

COLORdash Batten-Quad 6

COLORdash Batten-Quad 6 is a linear wash fixture with 6 individually controllable quad-colored RGBA LEDs outputting any variation of white as well as richly saturated colors, thanks to the inclusion of amber LEDs. It pixel maps beautifully when used in multiples because it maintains an even pixel pitch. Setup is easy with a hanging bracket, floor trunnions, 3- and 5-pin DMX connectors and secure Neutrik® powerCON® power in and out.


At a Glance

  • Metal construction for added durability

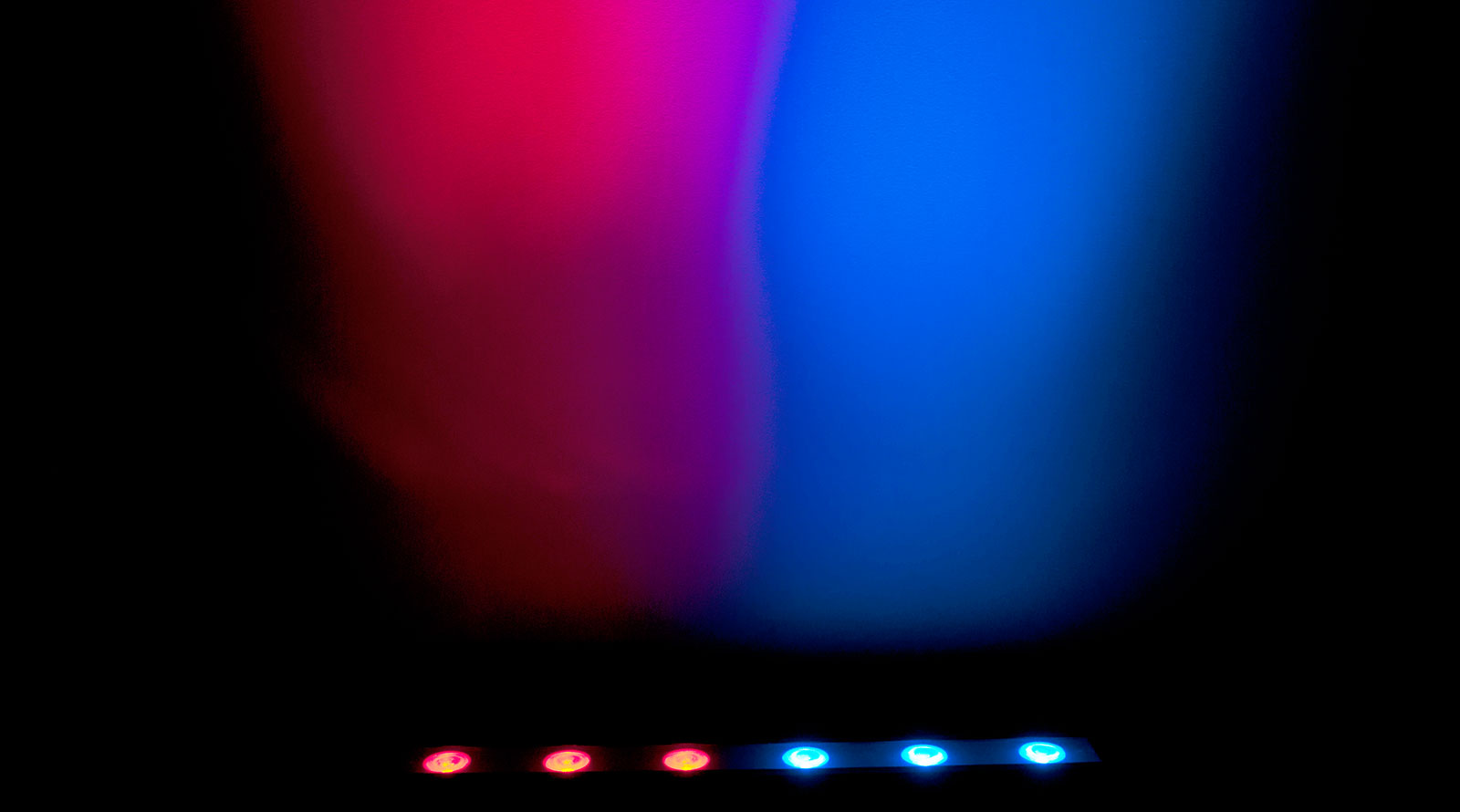

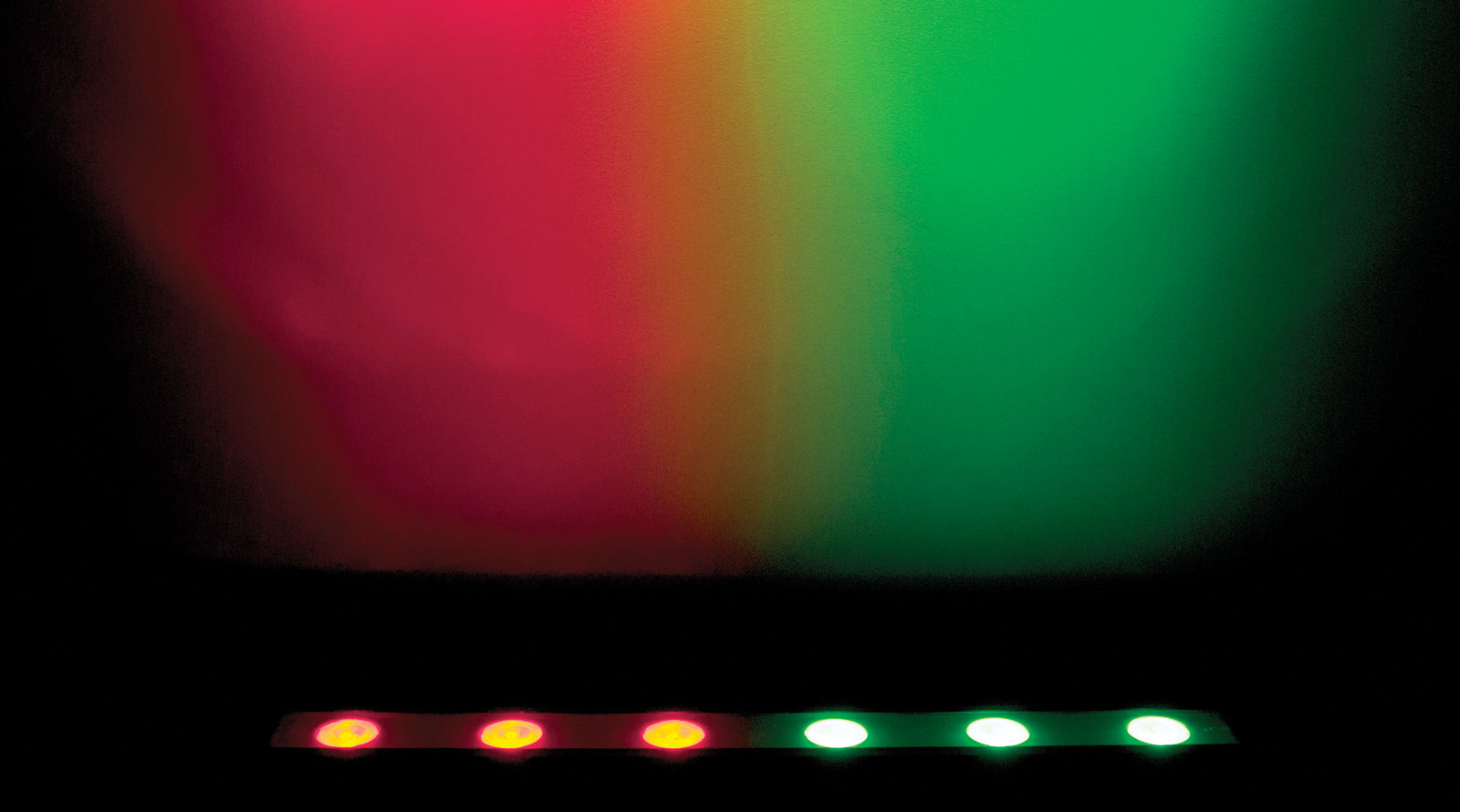

  • Individual pixel control

  • Silent flicker-free operation

  • Simple and complex DMX channel profiles for programming versatility

  • Mount multiple units in stack or end-to-end to maintain pixel pitch

Specifications

Optical

  • Light Source: 6 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2,800 to 10,000 K
  • Installed Optics: 20°
  • Beam Angle: 17°
  • Field Angle: 33°
  • Illuminance (total): 390.7 lux @ 5 m
  • PWM Frequency: 600 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 22 x 2.6 x 6.5 in (560 x 65 x 164 mm)
  • Weight: 5 lb (2.3 kg)
  • Exterior Color: Black

Connections

  • Power Connection: Edison plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX
  • DMX Channels: 4, 6, 10, 24 or 28
  • Modes/Personalities: 5 personalities (4, 6, 10, 24, 28)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 17 units @ 120 V; 30 units @ 208 V; 33 units @ 230 V
  • Power and Current: 90 W, 0.76 A @ 120 V, 60 Hz
  • Power and Current: 94 W, 0.45 A @ 208 V, 50 Hz
  • Power and Current: 96 W, 0.41 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location
