ÉPIX Strip IP

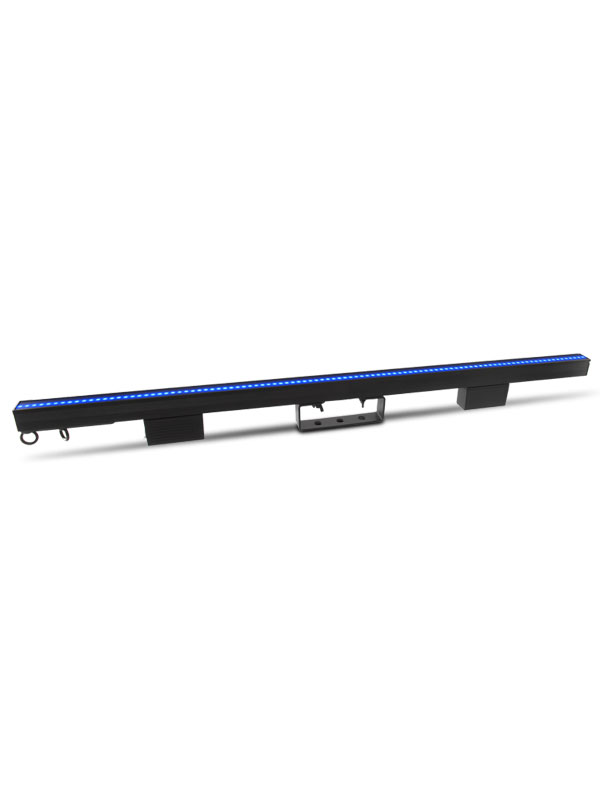

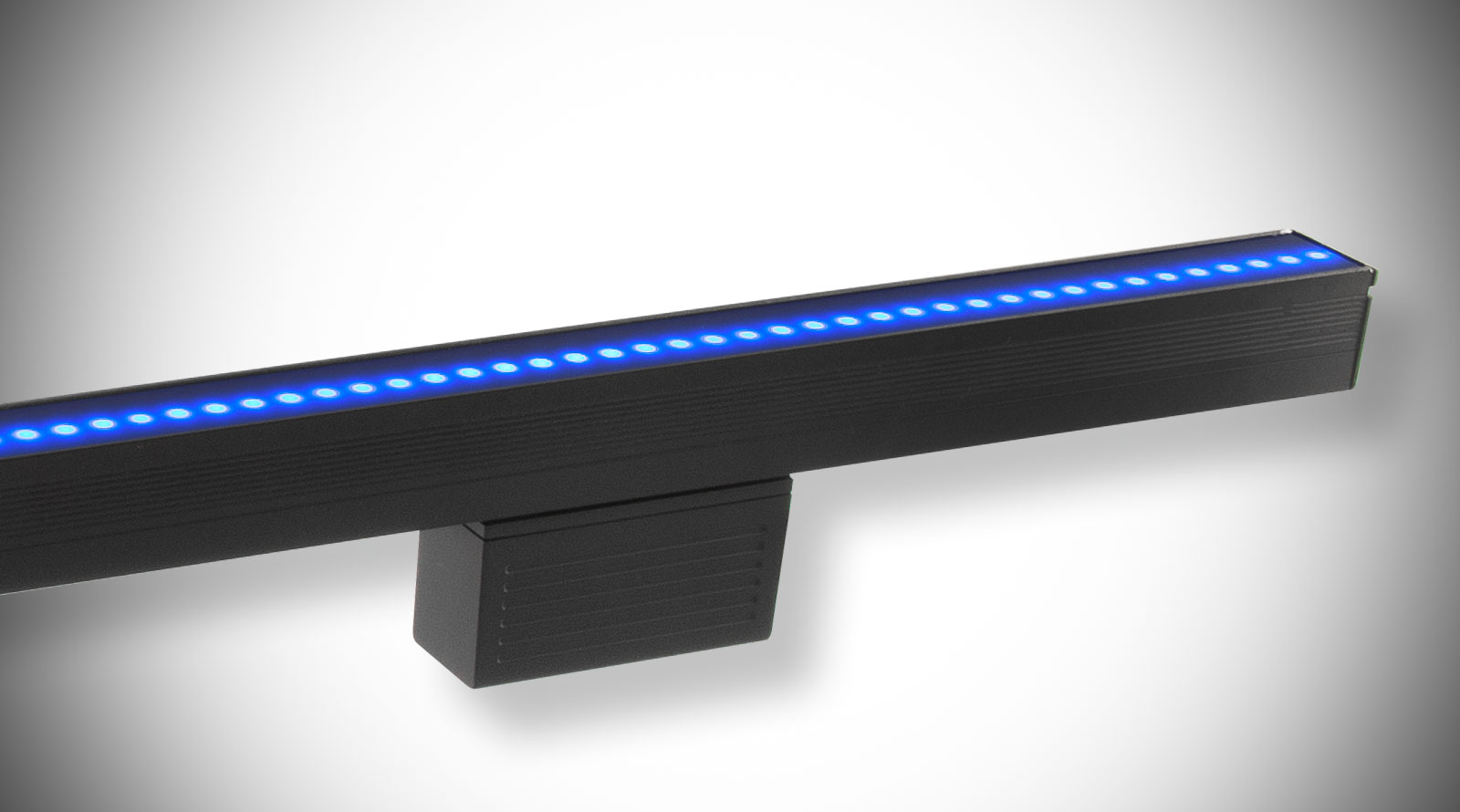

Épix Strip IP is an outdoor pixel-mapping 1-meter LED strip, featuring 100 LEDs in a row, ideal for festivals, concert touring, and installations. Power and control it through the Épix Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN). Quickly and easily configure and program shows in minutes with minimal time/effort to create stunning looks. For added versatility and more creative options, dome and flat accessories are included.

At a Glance

  • Pixel-mapping 1-meter 100 x 1 IP65 rated LED strip for showing video and/or motion graphics

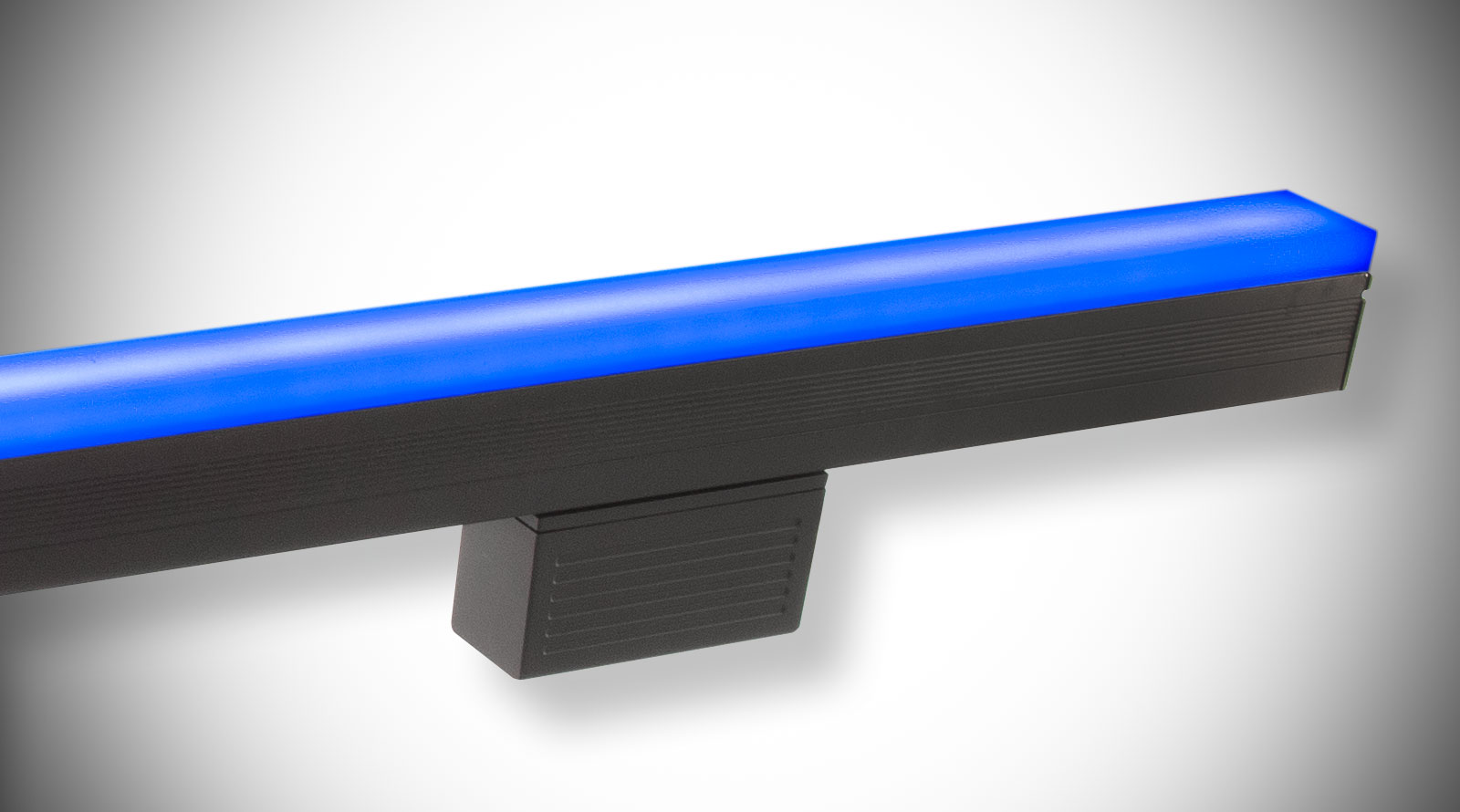

  • Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.

  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets

  • Reduce programming time and increase application by using the alternate personalities of 17 channel, 5, 10, 20, and 50 sections, or use the Pixel personality for use with video servers

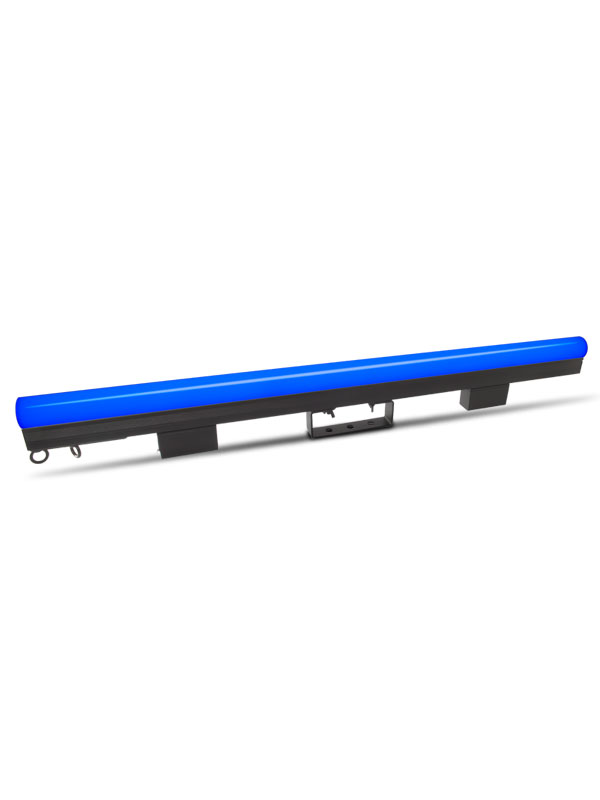

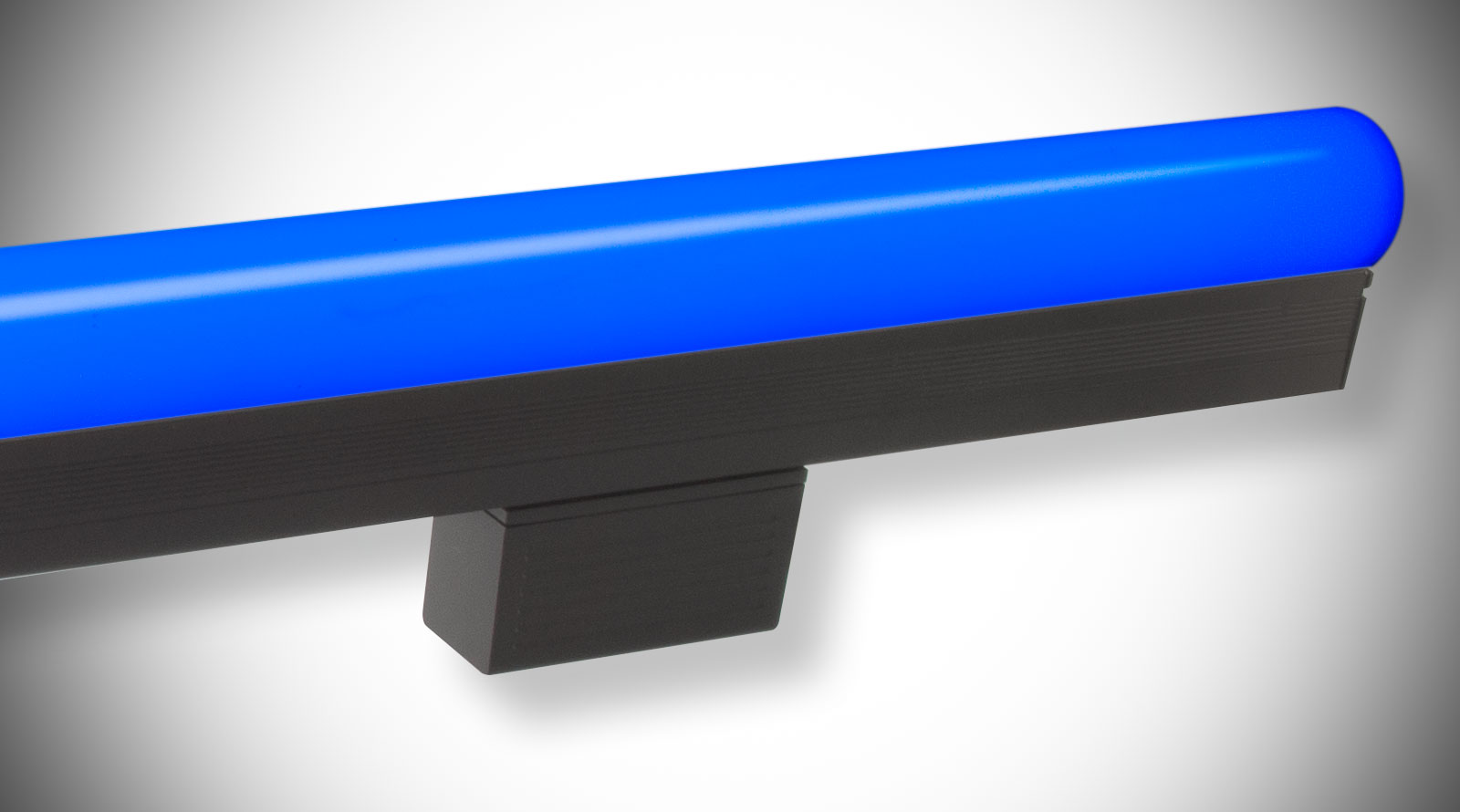

  • Increase viewing angle by using the optional dome accessory

  • Epix Drive 2000 IP required for operation

Specifications

Optical

  • Light Source: 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
  • Viewing Angle (with installed square milky filter): 160°
  • Viewing Angle (with optional dome filter): 160°
  • Pixels: 100 x 1
  • Pixel Pitch: 10 mm
  • Refresh Rate: 4800 Hz

Construction / Physical

  • Dimensions (with installed square milky filter ): 39.37 x 3.93 x 1.33 in (1000 x 100 X 34 mm)
  • Dimensions: (with included black stealth filter) 39.37 x 3.46 x 1.33 in (1000 x 88 x 34 mm)
  • Dimensions (with optional dome filter): 39.37x 5.03 x 1.77 in (1000 x 128 X 45 mm)
  • Weight: 6 lb (2.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum

Connections

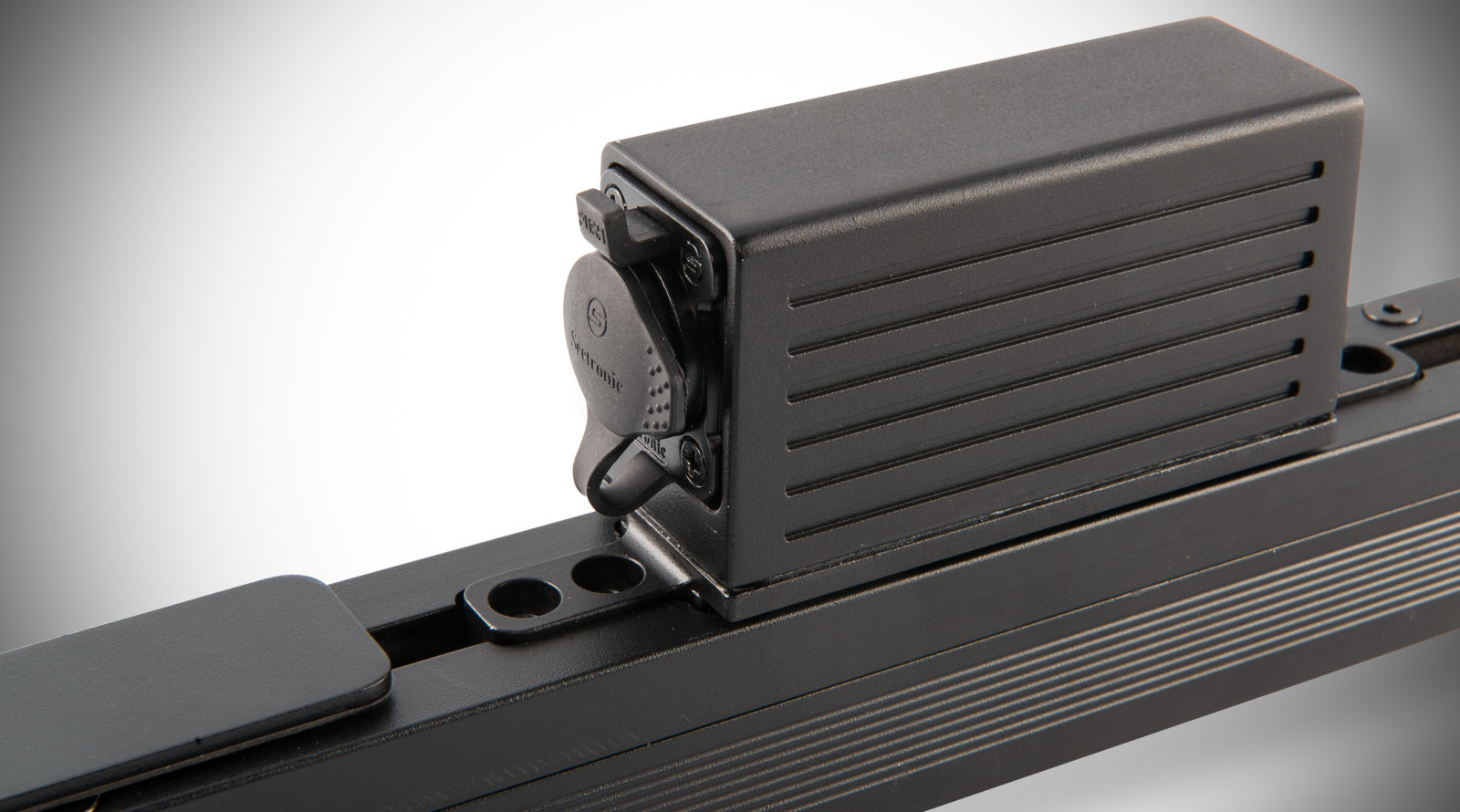

  • Data Connectors: 4-pin XLR
  • Physical Linking: 10 inline Epix Strip IP per port of Drive 2000IP
  • Total max. cable length (shielded cables) between Epix Drive 2000 IP and last Epix IP fixture: 210 ft (64 m)
  • Max. cable length (shielded cables) between Epix Drive 2000 IP and first Epix IP fixture: 65 ft (20 m)
  • Max. cable length (shielded cables) between Epix IP fixtures: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between Epix Drive 2000 IP and last Epix IP fixture: 300 ft (91 m)
  • Max. cable length (unshielded cables) between Epix Drive 2000 IP and first Epix IP fixture: 150 ft (45 m)
  • Max. cable length (unshielded cables) between Epix IP fixtures: 100 ft (30 m)

Control

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Channels Art-net, sACN): 15, 17, 30, 60, or 300

Electrical

  • Power and Current: 35 W, 0.292 A @ 120 V, 60 Hz
  • Power and Current: 44 W, 0.210A @ 208 V, 60 Hz
  • Power and Current: 44 W, 0.195 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • EPIX Strip IP
  • Square milky filter(installed)
  • Round milky filter
  • Black stealth filter (included in box)

Required Accessories

  • Controller (required): EPIX Drive 2000 IP
  • Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)
