WELL STX 360

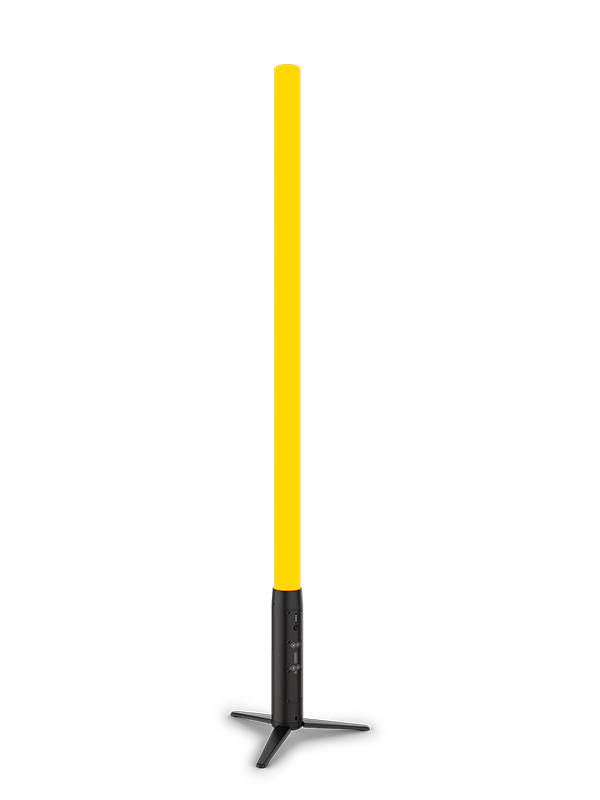

WELL STX 360 is a large freestanding, battery-operated, and outdoor-ready LED tube that emits 360° of ultra-bright, high-quality, pixel-mappable light. Wireless control of 16 zones of the RGBWW LED’s produce exceptional eye-candy effects with high CRI – so it will look as great on camera as it does in person. In addition to being IP65 rated, WELL STX 360 can also be oriented in any position so you can fully utilize the wireless freedom this fixture is capable of. The unit is packaged as part of a complete kit that includes: 4 WELL STX 360, 4 eyebolts for suspended hanging options, 4 folding floor stands, 1 IR Remote, and 1 charging flight case. The device is also controllable via W-DMX, which can be used with almost any standard lighting controller, including the WELL COM with its built in W-DMX receiver.


At a Glance

  • (4) Pixel-mapping, battery operated, 1.5 meter, IP65 rated LED sticks with 360 degree viewing angle, including (4) mounting stands, (4) hanging eye bolts, (1) IR remote, and (1) charging case

  • 16 individual zones of control for pixel mapping effects

  • High CRI LEDs for fantastic skin tone rendering

  • Simple and complex operational modes

  • Built in editable pre-programmed effects that are controllable from the menu and over DMX

  • 3, 5, 8, and 12 hour settings for optimizing performance time

  • Included accessories for several mounting options

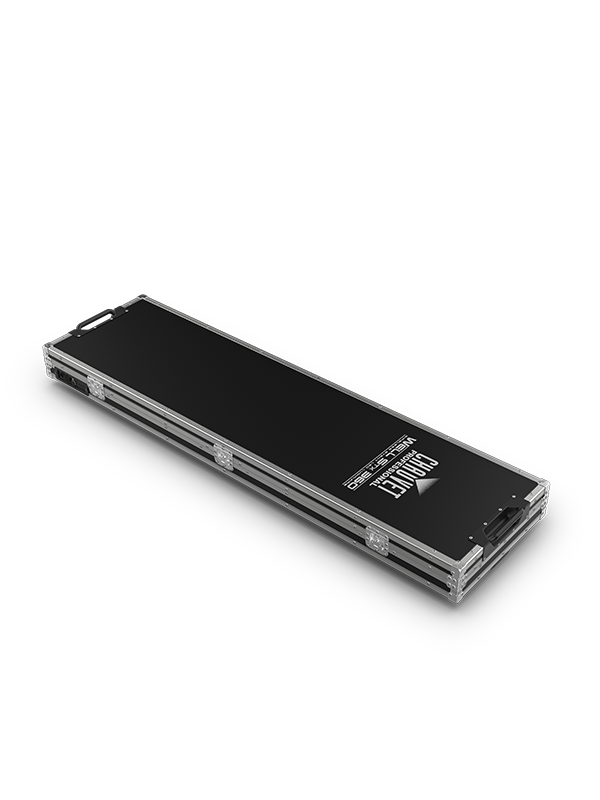

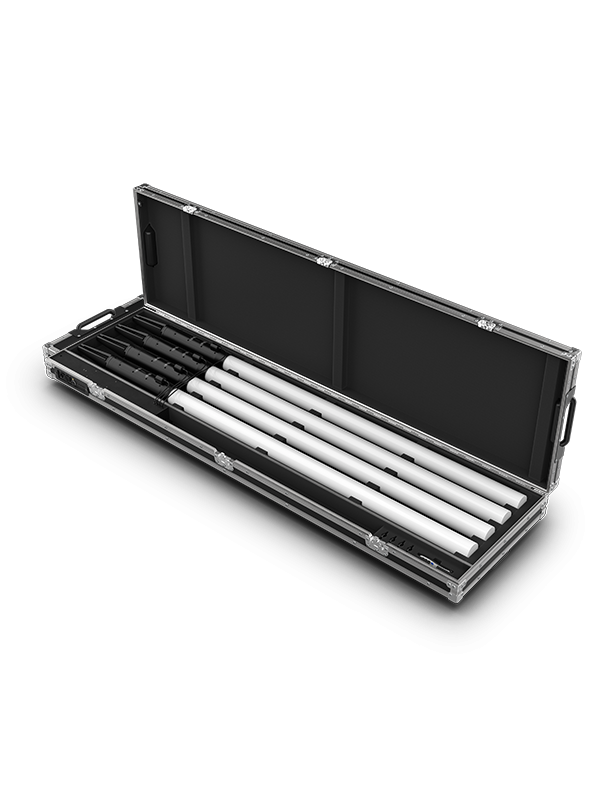

  • Included charging flight case for easy transportation and charging of fixtures

  • Update software over USB-C connection in flight case (upload all 4 fixtures at once)

  • Works in both stand-alone modes as well as under DMX over W-DMX

  • Works perfectly with the WELL-COM controller and app

Specifications

Optical

  • Light Source: 512 LEDs (256 RGB / 256 WW) SMD 5050, 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • Color Temperature (at full): 9670 K
  • CRI: 91.9 @ 4000 K
  • Beam Angle: 360°
  • Field Angle: 360°
  • Illuminance (total): 5 lux @ 5 m – 3 hr run time
  • Lumens – Output : 1,718 lm – 3 hr run time
  • PWM Frequency: Scrambled PWM

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 28 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 59.09 x 2.75 x 2.75 in (1501 x 70 x 70 mm)
  • Dimensions (charging case): 69.8 x 19.5 x 6.4 in (1773 x 495 x 163 mm)
  • Weight: 9 lb (4.1 kg)
  • Weight (charging case): 85 lb (38.6 kg)
  • Threaded Bolt: M12-1.75
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Plastic

Connections

  • Power Connection (single charger): Edison (Local) plug to Seetronic Powerkon IP65
  • Power Connection (charging case): Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input (single charger): Seetronic Powerkon IP65
  • Power Input (charging case): Seetronic Powerkon IP65
  • Power Output (charging case): Seetronic Powerkon IP65
  • Cable Length power (single charger): 5 ft (1.5 m)
  • Cable Length power (charging case): 5 ft (1.5 m)

Control

  • Control Protocol: W-DMX
  • DMX Channels: 4, 15, 64 or 67
  • Modes/Personalities: 4 personalities

Electrical

  • Input Voltage (charging case): 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Input Voltage (single charger): 24 VDC, 2.5 A, 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking (charging case): 8 units @ 100 V; 10 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V; 12 units @ 230 V
  • Power and Current (single charger): 41 W, 0.403 A @ 100 V, 60 Hz
  • Power and Current (charging case): 164 W, 1.612A @ 100 V, 60 Hz
  • Power and Current (single charger): 40 W, 0.331 A @ 120 V, 60 Hz
  • Power and Current (charging case): 160 W, 1.324 A @ 120 V, 60 Hz
  • Power and Current (single charger): 66 W, 0.315 A @ 208 V, 60 Hz
  • Power and Current (charging case): 264 W, 1.260 A @ 208V, 60 Hz
  • Power and Current (single charger): 67 W, 0.291 A @ 230 V, 50 Hz
  • Power and Current (charging case): 268 W, 1.188 A @ 230 V, 50 Hz
  • Power and Current (single charger): 67 W, 0.281 A @ 240 V, 50 Hz
  • Power and Current (charging case): 268 W, 1.124 A @ 240 V, 50 Hz
  • Power and Current (resting w/single charger): 3 W, 0.035 A @ 100 V, 60 Hz
  • Power and Current (resting w/charging case): 12 W, 0.140 A @ 100 V, 60 Hz
  • Power and Current (resting w/single charger): 4 W, 0.036 A @ 120 V, 60 Hz
  • Power and Current (resting w/charging case): 16 W, 0.144 A @ 120 V, 60 Hz
  • Power and Current (resting w/single charger): 9 W, 0.043 A @ 208 V, 60 Hz
  • Power and Current (resting w/charging case): 36 W, 0.172 A @ 208 V, 60 Hz
  • Power and Current (resting w/single charger): 9 W, 0.041 A @ 230 V, 50 Hz
  • Power and Current (resting w/charging case): 36 W, 0.164 A @ 230 V, 50 Hz
  • Power and Current (resting w/single charger): 10 W, 0.042 A @ 240 V, 50 Hz
  • Power and Current (resting w/charging case): 40 W, 0.168 A @ 240 V, 50 Hz

Battery

  • Battery type: Lithium Ion
  • Quantity of cells: 5 cells
  • Rechargeable: Yes
  • Watt Hours: 185.9 Wh
  • Battery Charge Time: 4 hours
  • Battery Life: 3,5,8,12 hours
  • Battery Power: 18.5 V, 10.05 Ah

Certifications / Qualifications

  • CE, FCC
  • IP Rating: IP65, for temporary outdoor use
  • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
  • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

What's Included

  • (4) WELL STX 360
  • True 1 style power cord with Edison plug (EU bare end)
  • Charging flight case
  • (4) tripod stands
  • (4) hanging eye bolts
  • (1) IR Remote
  • Quick Reference Guide

Optional Accessories

  • Safety Cable: SC-07
  • IP Rated Seetronic® Powerkon Extensions

Downloads

 WELL STX 360 Quick Reference Guide
 WELL STX 360 User Manual
 WELL STX 360 Line Drawings
 WELL STX 360 CAD Files
 WELL STX 360 IES Files
 WELL STX 360 DMX Chart
 WELL STX 360 Standard Optics Photometrics Report
 WELL STX 360 No Filter Photometrics Report
