DRB-F50CMIP

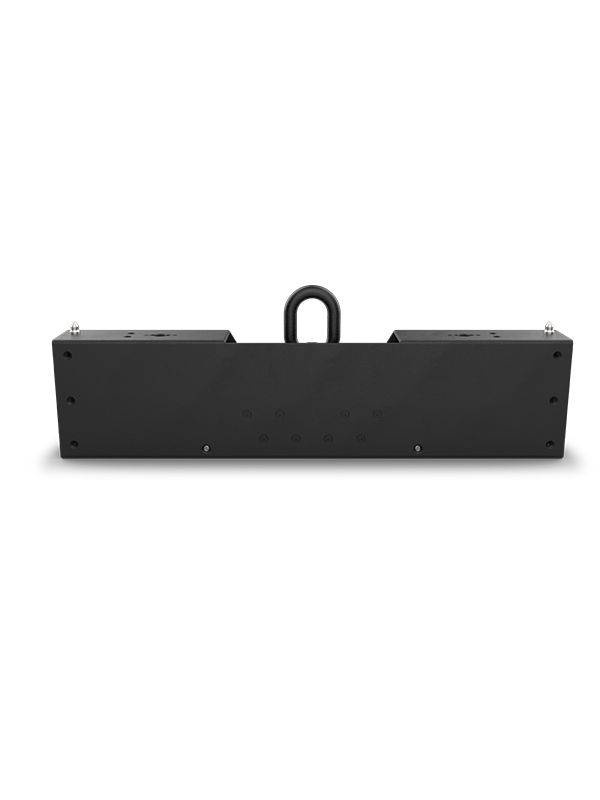

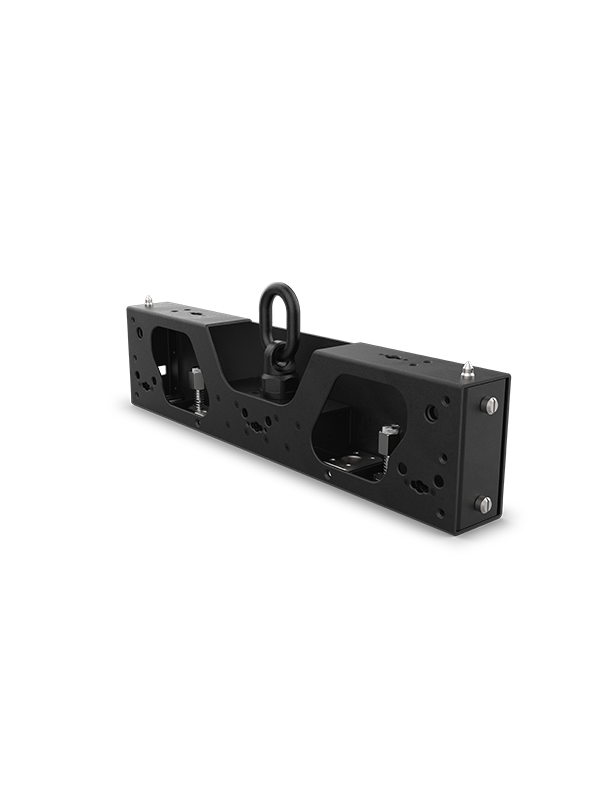

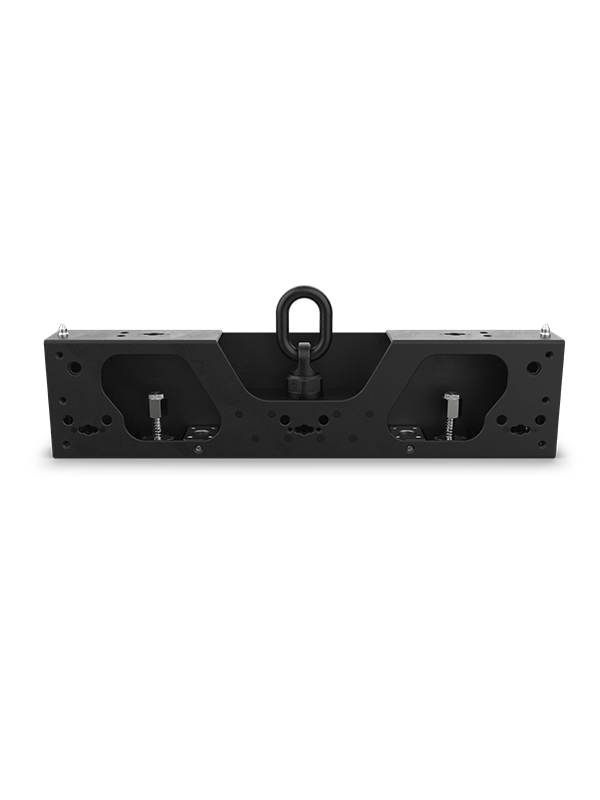

DRB-F50CMIP and DRB-F100CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.
At a Glance
F-series Dual Function Rig Bar, used to hang video panels vertically or horizontally
Works for overhead hanging, as well as ground support/stacking applications
Works with CHAUVET F-series video panels (F2, F3X, F5IP, F4XIP)
Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2" and 5/8" shackles)
Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps
using TRUSST CTC-50HC
Specifications
Construction / Physical
- Dimensions: 19.6 x 2.3 x 4.3 in (499 x 60 × 120 mm)
- Weight: 8.8 lb (3.99 kg)
- Exterior Color: Black
- Housing Material: Aluminum extrusion, stainless steel
Clamp
- Load Capacity (Hanging): 970 lb (440 kg)
- Load Capacity (Stacking): 2,204.6 lb (1,000 kg)
- Recommended Shackle Sizes: 1/2", 5/8"
Certifications / Qualifications
- ROHS
- IP Rating: IP65, temporary outdoor/wet use
What's Included
- 1pcs F-series Dual Function Rig Bar-50 cm (DRB-F50CMIP)
- 1pcs 0° Linking Plate
- 1pc clamp attachment brackets (DRB-CTC)
- 1pc clamp bolts for TRUSST CTC-50HC
Required Accessories
- Compatible Mounting Options: Shackle (Sizes: 1/2", 5/8"), Pipe Clamp (M12 threaded bolt)
Optional Accessories

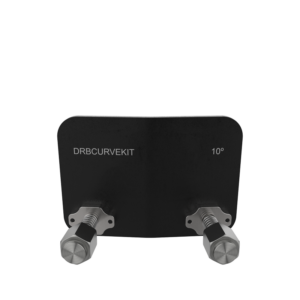

- DRB-CURVEKITX2
