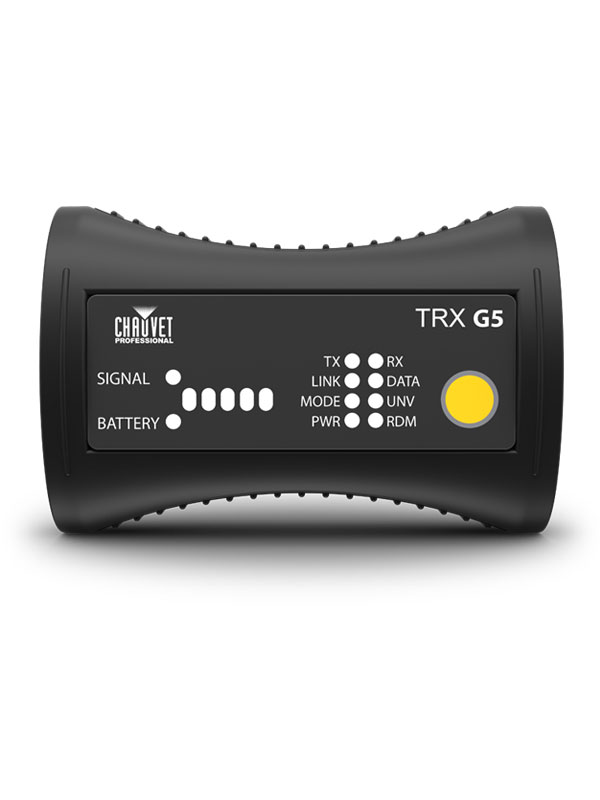

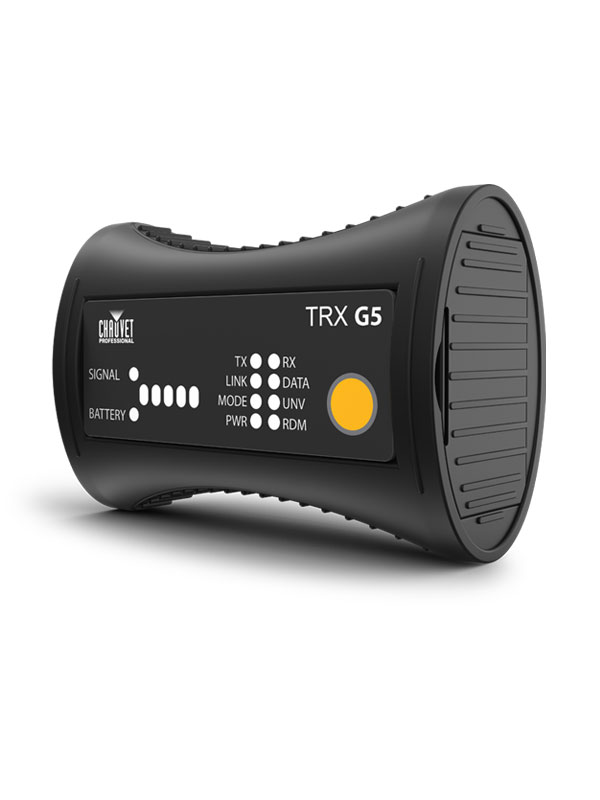

W-DMX Micro T-1 TRX G5

Wireless Solutions Micro T-1 Transceiver works with W-DMX wireless wash lights, including all WELL and Maverick fixtures, to generate a wireless control signal for both DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX signals to make any fixture or rig wireless. It also features a 5 V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.


At a Glance

  • Transmit and receive 1 universe of W-DMX and RDM protocols

  • Power with included 5V USB power supply or (4) AAA batteries (not included)

  • Batteries last for up to 8 hours in receiver mode and 4 hours in transceiver mode

  • Built in indicator lights for signal and battery strength, as well as operation modes

  • Can be used directly with any Maverick or WELL fixtures

  • Can be used to make any lighting system wireless for data

Specifications

Construction / Physical

  • Dimensions: 3.94 x 1.57 x 2.65 in (100 x 40 x 65 mm)
  • Weight: 1.67 lb (800 g)
  • Exterior Color: dark gray
  • Housing Material: High-impact flame-retardant polymer

Connections

  • Power Connection: 5V micro USB connector (micro B) to wall wart adapter
  • Data Connectors: 5-pin XLR

Control

  • Control Protocol: W-DMX, RDM
  • Frequency (operating): # 2.4 GHz
  • Universes per device: 1
  • Number of DMX channels: 512
  • DMX Latency: <5 ms
  • Max universe in coexistence: 16
  • Error correction: yes
  • DMX Fidelity: yes
  • Adaptive Frequency Hopping: Yes
  • W-DMX G3 &G4S compatibility: Yes
  • Standard range: up to 650 ft (200 m)
  • Internal antenna: Yes
  • Sensitivity (0.1% PER): -97 dBm
  • Modulation method: GFSK

Electrical

  • Input Voltage: 9 VDC 1000 mA, (external power supply: 100-230 V 50/60 Hz)

What's Included

  • W-DMX Micro T-1 TRX G5
  • Micro USB to wall wart adapter
  • Velcro attachment strap
