New

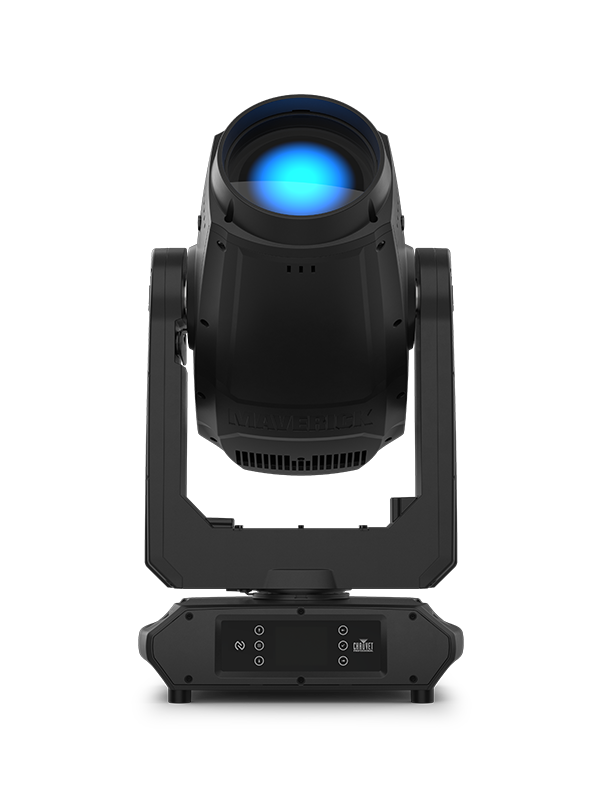

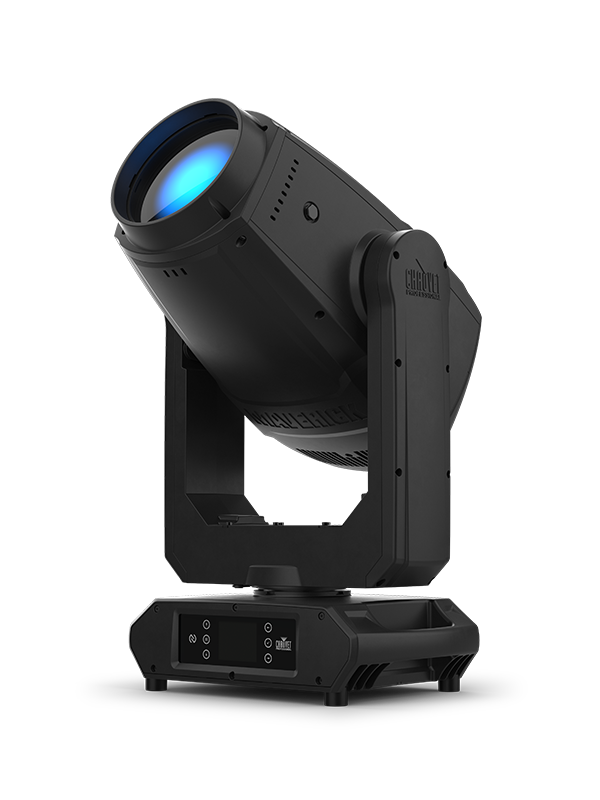

Maverick Storm 1 Flex

Outperform expectations with the intense brightness of this compact member of our Maverick Storm family of lighter, brighter, stadium-power moving heads built to rugged IP65 standards. No lamp. No hot spot. Only perfectly even output at every angle from a multifunctional LED powerhouse. Maverick Storm 1 Flex goes flat out from narrow beams to wide spots, while producing excellent color rendering and offering lighting designers a full effects wheelhouse for layering gobo, prism and animation effects. Draw on Maverick Storm 1 Flex to release stunning textured looks, send totally solid beams and hit the deepest colors.


At a Glance

  • Fully featured, IP65 rated, high powered Spot/Beam/Wash combination fixture with a 520W LED source, CMY+CTO color mixing, an animation wheel, 2 gobo wheels, 2 layerable prisms, large zoom range, and lightweight aluminum/magnesium housing

  • 16-bit dimming of master dimmer for smooth control of fades

  • Variable CMY + CTO color mixing system to create a wide palette of colors

  • CRI and CTB filters on color wheel for added flexibility

  • 1 rotating and 1 static gobo wheel

  • An animation wheel for kinetic textured effects

  • Tight 2.6° narrow beam angle for focused air effects

  • 7 rotating and 10 static gobos for massive visual effect

  • DMX, CRMX, sACN, and Art-Net for full flexibility of control options

  • RDM control over DMX for fixture reporting

  • True 1 compatible power input

  • Integrated sun shield for protecting the optical path from sunlight when the fixture is off

  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

  • USB-C slot for software uploads

  • Battery backup display with auto-rotate depending on fixture orientation

  • Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost

  • Built in Sky Tracker mode allows for up to 4 fixtures to work together to create sky tracker effects

Specifications

Optical

  • Light Source: 1 Led, 6595K, up to 50,000 hours life expectancy*
  • *Test lab conditions. May vary depending on several factors including but not limited to:
  • Environmental conditions, power/voltage, usage patterns, (on/off power cycling), control, and dimming.
  • Color Temperature (at full): 6595 K
  • Front lens diameters: 165 mm
  • Beam Angle: 3.1° to 46.6° (Spot mode)
  • Field Angle: 4.1° to 57.9° (Spot mode)
  • Cutoff Angle: 4.5° to 55.5 ° (Spot mode)
  • Beam Angle: 2.6° to 43 ° (Beam mode)
  • Field Angle: 3° to 47.3° (Beam mode)
  • Cutoff Angle: 3.4° to 50.7° (Beam mode)
  • Beam Angle: 2.8° to 45.8 ° (Wash mode)
  • Field Angle: 3.7° to 53.1° (Wash mode)
  • Cutoff Angle: 3.9° to 57° (Wash mode)
  • Zoom Range: 3.1° to 55.5° (Spot mode)
  • Zoom Range: 2.6° to 50.7° (Beam mode)
  • Zoom Range: 2.8° to 57° (Wash mode)
  • Lumens : 33587 lm
  • Illuminance : (3.1 °) 154,697 lux @ 5 m (Spot mode)
  • Illuminance : (55.5 °) 2,675 lux @ 5 m (Spot mode)
  • Illuminance : (2.6°) 17,538 lux @ 15 m (Beam mode)
  • Illuminance : (50.7 °) 295 lux @ 15 m (Beam mode)
  • Illuminance : (2.8°) 146,171lux @5 m (Wash mode)
  • Illuminance : (57 °) 2478 lux @ 5 m (Wash mode)

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags
  • Gobos (1): 7+ open (1 empty slot + 6 glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds) and (1) steel dual layer non-removable rotating, continuous scroll at variable speeds)
  • Gobos Static: 10 + open (11 metal), rotating, continuous scroll at variable speeds
  • Gobo Size (1): Gobo Wheel 1 (rotating): 23.9 mm (outside), 20 mm (image), 1.1 mm (max. thickness)
  • Animation Wheel: 1
  • Dimmer: Motorized
  • Shutter/Strobe: Motorized
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Prism (1): 6 Facets, motorized, rotating
  • Prism (2): 8 Facets, motorized, rotating
  • Move-in-Black: Yes
  • Built in Sky Tracker Mode: Yes

Construction / Physical

  • Dimensions: 15.27 x 10.55 x 10.55 in (388 x 268 x 738 mm)
  • Weight: 63.5lb (28.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

Connections

  • Power Connection: Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)
  • Software Connection: Type-C USB

Control

  • Control Protocol: Art-Net, sACN, RDM, DMX, CRMX
  • DMX Channels: 26 or 33
  • Art-Net/sACN Channels: 26 or 33
  • Modes/Personalities: 2 personalities (26, 33)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 754 W, 6.25 A @ 120 V, 60 Hz
  • Power and Current: 734 W, 3.60 A @ 208 V, 60 Hz
  • Power and Current: 738 W, 3.30 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC, CB, UKCA
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
  • Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

What's Included

  • Maverick Storm 1 Flex
  • Seetronic Powerkon IP65 power cord to Edison Plug
  • (2) 140 Omega brackets with mounting hardware

Optional Accessories

  • Clamps
  • PowerKon IP65 cables
  • etherCON cables
  • 5 Pin DMX Cables
  • Flight Cases
