    Rogue R1E Spot

    A compact and lightweight moving yoke spot that delivers intense output from a 200W LED engine, offering a full effects package with a rotating prism, dual gobo wheels, motorized iris, and frost for versatile beam shaping.
    Perfect for mobile entertainers, small to medium-sized venues, and lighting designers seeking to expand an existing rig with a feature-packed yet compact spot fixture.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    User Manual
    		 Download
    DMX Chart
    		 Download
    IES files
    		 Download
    Photometrics Report
    		 Download
    Firmware
    		 Download
    2D CAD Files
    		 Download
    3D CAD Files
    		 Download

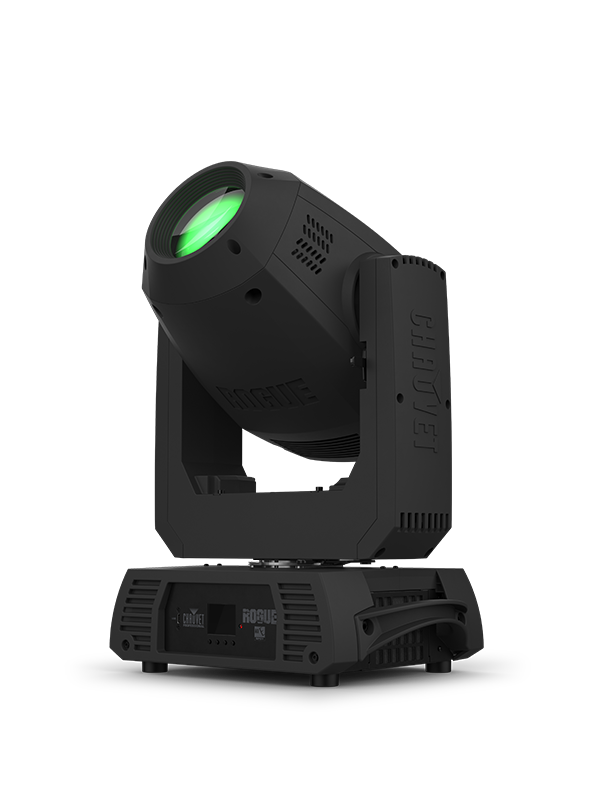

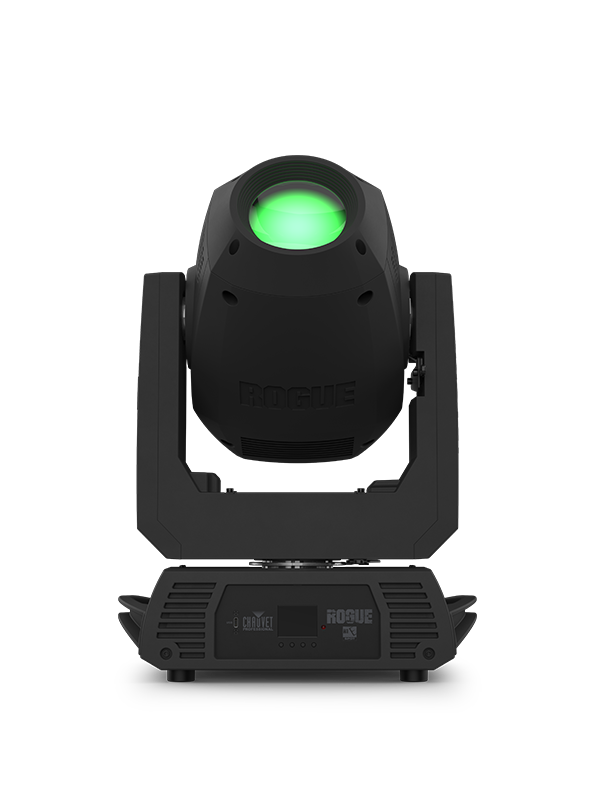

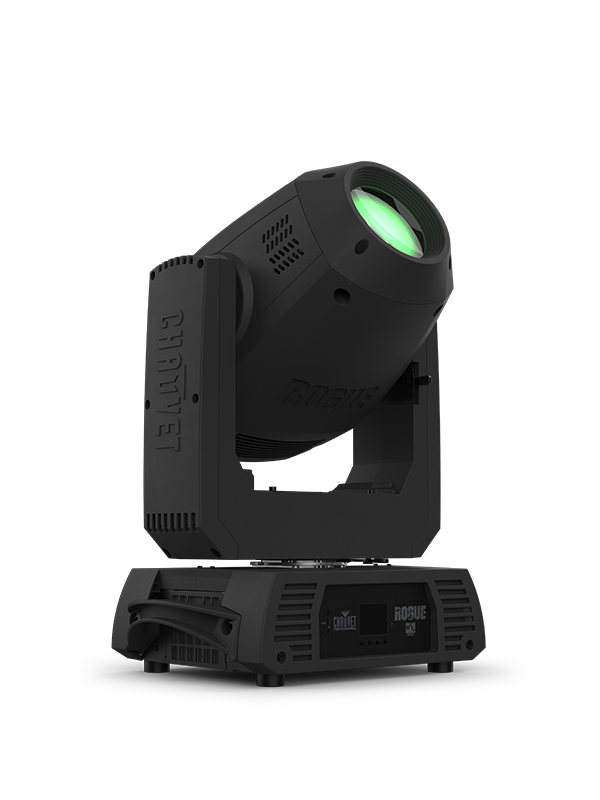

    Rogue R1E Spot

    SKU: ROGUER1ESPOT

    Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a color wheel with eight brilliant colors + white + split colors. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R1X Spots in your rig.

    Features

    Compact 200W LED Spot

    A fully featured and lightweight moving yoke fixture powered by an intense 200W LED light engine.

    Dual Gobo Wheels

    Includes one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel for dynamic pattern effects.

    Seamless Gobo Morphing

    Create perfect visual transitions by morphing between the two gobo wheels.

    Advanced Beam Shaping

    Utilize the built-in iris, 3-facet prism, and frost filter for total beam control.

    Smooth 16-Bit Dimming

    Achieve exceptionally smooth fades with precise 16-bit control of the master dimmer.

    Power Linking Connections

    True 1 compatible power input and output connections allow for linking multiple fixtures.

    Flexible DMX Connections

    Equipped with both 3-pin and 5-pin DMX input and output connections for versatile setups.

    RDM Enabled

    Allows for remote addressing and troubleshooting, simplifying fixture management.

    Selectable LED Output

    Match the output of legacy Rogue R1X Spots with selectable maximum power settings.

    Flicker-Free On Camera

    Selectable PWM settings ensure flicker-free operation for video and broadcast applications.

    Versatile DMX Profiles

    Choose between simple and complex DMX channel profiles for programming flexibility.

    Specifications

    Download Product Specs

    Optical

    • Light Source

      1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy

    • Color Temperature (at full)

      7423 K

    • Front lens diameter

      90mm

    • CRI

      68

    • Beam Angle

      15.3°

    • Field Angle

      18.7°

    • Cutoff Angle

      20.3°

    • Lumens – Source

      17,900

    • Lumens – Output

      12,210

    • Illuminance (total)

      9,021 lux @ 5 m

    • Selectable PWM

      600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz

    Dynamic Effects

    • Pan and Tilt

      540°/270°

    • Pan and Tilt Ranges

      540°, 360°, 270° pan/270°, 180°, 90° tilt

    • Colors

      8 + white, split colors, continuous scroll at variable speeds

    • Gobos (1)

      7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

    • Gobos (2)

      8 + open (8 metal), continuous scroll at variable speeds

    • Gobo Size

      Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)

    • Dimmer

      Electronic

    • Shutter/Strobe

      Electronic

    • Focus

      Motorized

    • Iris

      Motorized

    • Prism

      3 Facets, motorized, rotating

    • Strobe Rate

      0 to 22 Hz

    • Move in Black

      Yes

    Construction/Physical

    • Dimensions (single unit)

      14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)

    • Weight (single unit)

      31.2 lb (14.2 kg)

    • Exterior Color

      Black

    • Housing Material

      Aluminum die-cast, High-impact flame-retardant polymer, Steel

    • Software update

      USB-C

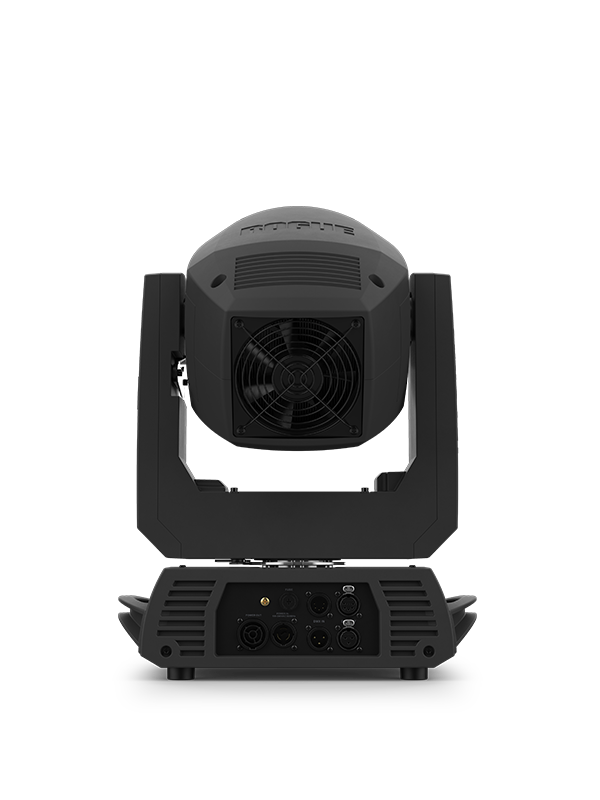

    Connections

    • Power Connection

      Edison (local) plug to Seetronic PowerKon

    • Power Input

      Seetronic PowerKon

    • Power Output

      Seetronic PowerKon

    • Data Connectors

      3- and 5-pin XLR

    • Cable Length (power)

      5 ft (1.5 m)

    Control

    • Control Protocol

      DMX, RDM

    • DMX Channels

      16 or 19

    • Modes/Personalities

      2 personalities (16, 19)

    Electrical

    • Input Voltage

      100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power Linking

      4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V

    • Power and Current

      315 W, 2.63 A @ 120 V, 60 Hz

    • Power and Current

      306 W, 1.50 A @ 208 V, 60

    • Power and Current

      303 W, 1.36 A @ 230 V, 50 Hz

    Certifications/Qualifications

    • Certifications

      CE, MET, FCC, UKCA

    • IP Rating

      IP20, dry location

    Compatible Accessories

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • TRUE1 Power Extension Cables
    • DMX Cables
    • Flight Cases
    • CP Rack

    What's Included

    • Rogue R1E Spot
    • Seetronic PowerKon power cord
    • 2 140D Omega brackets with mounting hardware

    Questions or Concerns?

    Let us know, we’re here to help! Contact Us

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Downloads

      Download All
      Manuals
      Rogue R1E Spot – Quick Reference Guide
      		Download
      Manuals
      Rogue R1E Spot – User Manual
      		Download
      Manuals
      Rogue R1E Spot – DMX Chart
      		Download
      Manuals
      Rogue R1E Spot – IES files
      		Download
      Manuals
      Rogue R1E Spot – Photometrics Report
      		Download
      Other
      Rogue R1E Spot – Firmware
      		Download
      Drawings
      Rogue R1E Spot – 2D CAD Files
      		Download
      Drawings
      Rogue R1E Spot – 3D CAD Files
      		Download

      Learn How To Use Your Rogue R1E Spot

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • Light Snacks: A Closer Look at the New Rogue R1E, R2E, and R3E Spots

        CHAUVET Professional introduces the new Rogue E Spot series in this quick overview. See how the R1E, R2E, and R3E Spot fixtures deliver increased lumen output, USB software updates, and adjustable fan speeds for brighter, lighter, and more powerful performance.

      Video Library

      Latest Articles

      Browse Articles

      Rogue R1E Spot FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the Rogue R1E Spot
      What kind of effects can the Rogue R1E Spot create?

      The Rogue R1E Spot is designed for creating dynamic visual effects. It can project crisp patterns (gobos) and even morph between different patterns for unique looks. You can also split the light beam into three with its rotating prism for stunning mid-air effects, add vibrant colors with its color wheel, and adjust the beam’s focus and shape using its motorized iris and frost features.
