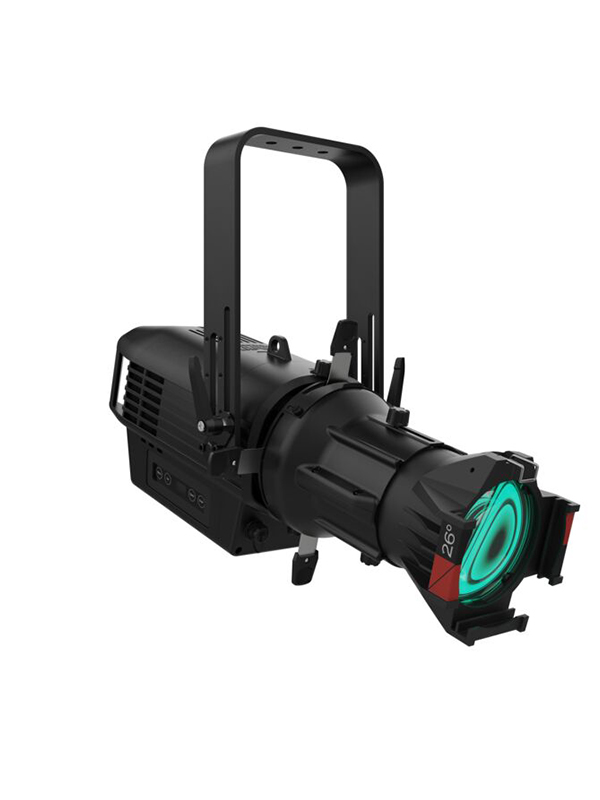

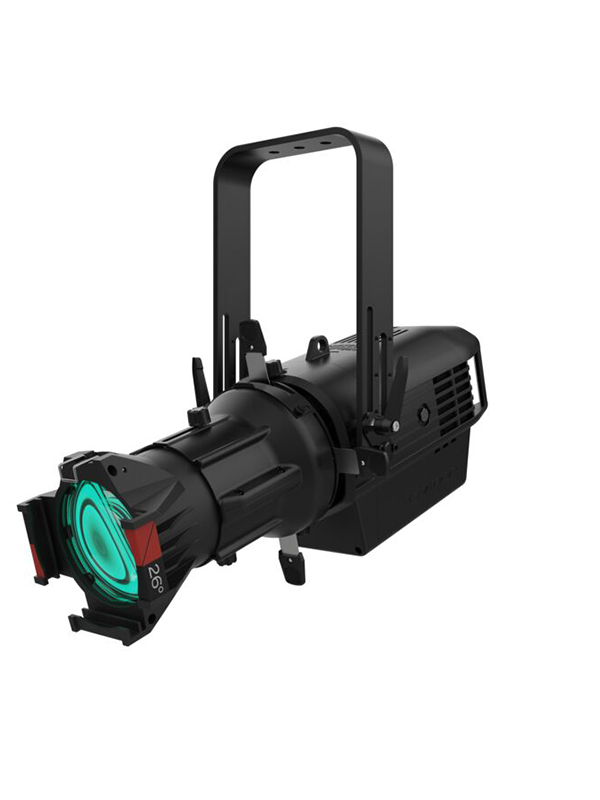

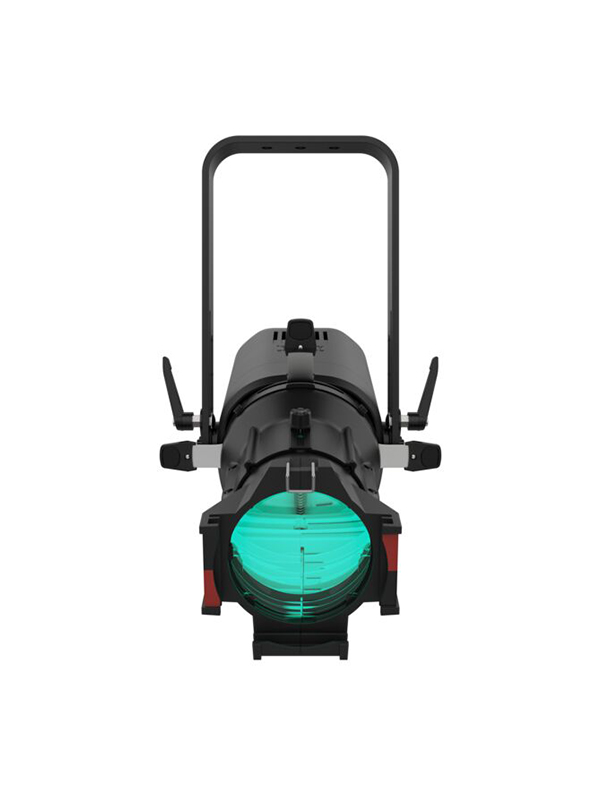

Ovation Rêve E-3 IP
Ovation Rêve E-3 IP is an outdoor-ready, LED ERS-style lighting fixture. Virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications – both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme, anywhere.
At a Glance
Full-spectrum, high-power LED ERS-style lighting fixture for theatre, film, and production
Fully IP65 rated for seasonal use indoors or out
Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
Virtual color wheel with color matched to popular gel colors
+/- Green adjustment and emulated red-shift via DMX or on-board control
RDM (Remote Device Management) for added flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
Virtually silent operation for use in studio, film, and theatre applications
Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme.
Innovative adjustable yoke for mounting in low clearance areas
Direct power/data connection and control options for the Ovation GR-1 gobo rotator
USB port for fixture software updates
Specifications
Optical
- Light Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 6,428 K
- CRI: 93.5
- Beam Angle (w/5° lens): 6.7°
- Beam Angle (w/10° lens): 11.1°
- Beam Angle (w/14° lens): 14.2°
- Beam Angle (w/19° lens): 17.6°
- Beam Angle (w/26° lens): 26°
- Beam Angle (w/36° lens): 32.8°
- Beam Angle (w/50° lens): 50°
- Beam Angle (w/15°–30° lens)(Narrow): 14.3°
- Beam Angle (w/15°–30° lens)(Wide): 23.8°
- Beam Angle (w/25°–50° lens)(Narrow): 24.7°
- Beam Angle (w/25°–50° lens)(Wide): 41.1°
- Field Angle (w/5° lens): 7.9°
- Field Angle (w/10° lens): 12.8°
- Field Angle (w/14° lens): 16.9°
- Field Angle (w/19° lens): 20.8°
- Field Angle (w/26° lens): 28.2°
- Field Angle (w/36° lens): 37°
- Field Angle (w/50° lens): 54.2°
- Field Angle (w/15°–30° lens)(Narrow): 17.3°
- Field Angle (w/15°–30° lens)(Wide): 33.2°
- Field Angle (w/25°–50° lens)(Narrow): 27.3°
- Field Angle (w/25°–50° lens)(Wide): 44.7°
- Lumens (w/5° lens): 8,335
- Lumens (w/10° lens): 11,092
- Lumens (w/14° lens): 10,700
- Lumens (w/19° lens): 10,185
- Lumens (w/26° lens): 12,178
- Lumens (w/36° lens): 11,888
- Lumens (w/50° lens): 11,274
- Lumens (w/15°–30° lens)(Narrow): 9,166
- Lumens (w/15°–30° lens)(Wide): 11,395
- Lumens (w/25°–50° lens)(Narrow): 11,810
- Lumens (w/25°–50° lens)(Wide): 14,328
- Illuminance (w/5° lens): 28,740 lux @ 5 m
- Illuminance (w/10° lens): 15,108 lux @ 5 m
- Illuminance (w/14° lens): 8,823 lux @ 5 m
- Illuminance (w/19° lens): 5,377 lux @ 5 m
- Illuminance (w/26° lens): 3,300 lux @ 5 m
- Illuminance (w/36° lens): 1,977 lux @ 5 m
- Illuminance (w/50° lens): 864 lux @ 5 m
- Illuminance (w/15°–30° lens)(Narrow): 7,731 lux @ 5 m
- Illuminance (w/15°–30° lens)(Wide): 2,484 lux @ 5 m
- Illuminance (w/25°–50° lens)(Narrow): 3,174 lux @ 5 m
- Illuminance (w/25°–50° lens)(Wide): 1,502 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Focus: Manual
- Strobe Rate: 0 to 28.6 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions (fixture only, yoke up): 20.83 x 12.71 x 19.75 in (529.3 x 323 x 501.7 mm)
- Dimensions (w/5° lens extended, yoke up): 42.25 x 14.5 x 19.75 in (1073.15 x 368.3 x 501.7 mm)
- Dimensions (w/10° lens extended, yoke up): 33.5 x 12.71 x 19.75 in (850.9 x 323 x 501.7 mm)
- Dimensions (w/14° lens extended, yoke up): 30.25 x 12.71 x 19.75 in (768.35 x 323 x 501.7 mm)
- Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up): 27.5 x 12.71 x 19.75 in (698.5X 323 X 501.7 mm)
- Dimensions (w/15°–30° lens, yoke up): 33.75 x 12.71 x 19.75 in (857.25 x 323 x 501.7 mm)
- Dimensions (w/25°–50° lens, yoke up): 26.5 x 12.71 x 19.75 in (673.1x 323 x 501.7 mm)
- Weight: 20.6 lb (9.34 kg)
- Weight (w/5° lens): 25.2 lb (11.43 kg)
- Weight (w/10° lens): 23.8 lb (10.79 kg)
- Weight (w/14° lens): 26 lb (11.79 kg)
- Weight (w/26° lens): 24.4 lb (11.06 kg)
- Weight (w/15°–30° lens): 30.2 lb (13.69 kg)
- Weight (w/25°–50° lens): 26.8 lb ( 12.15 kg)
- Exterior Color: Black
- Housing Material: Magnesium alloy
- Gobo Size (Optional): “A”: 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
- Gobo Size (Optional): “B”: 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
- Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
- Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
- Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
- Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
- Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
- Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

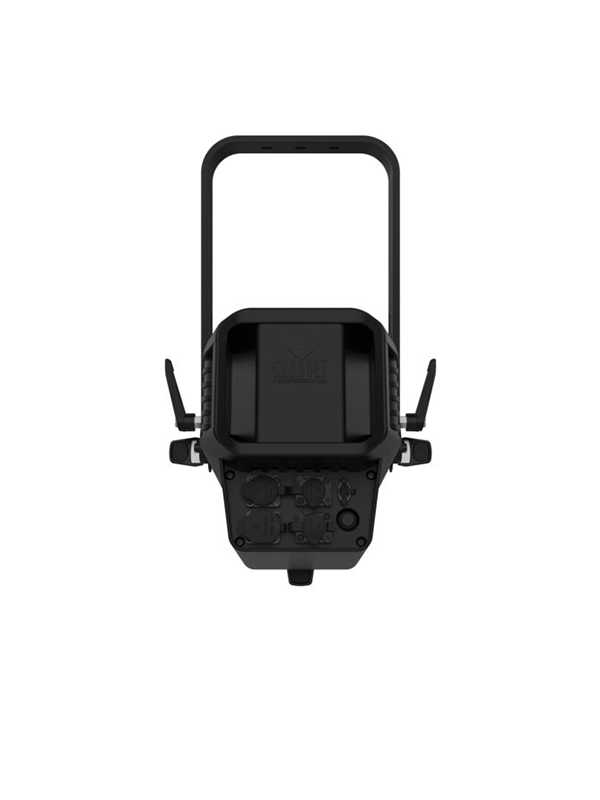

Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: Type-C USB
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
- Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V
- Power and Current: 354 W, 2.999 A @ 120 V, 60 Hz
- Power and Current: 345 W, 1.707 A @ 208 V, 60 Hz
- Power and Current: 342 W, 1.555 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
- Noise Level (Idle): 11.4 dB(A) @ 1 m
- Noise Level (Auto): 30.3 dB(A) @ 1 m
- Noise Level (On): 36.1 dB(A) @ 1 m
- Noise Level (Off): 0.7 dB(A) @ 1 m
- Noise Level (Silent): 26.5 dB(A) @ 1 m
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- Ovation Rêve E-3 IP
- Seetronic Powerkon power cable
- Ovation Metal Gobo Holder
- Soft Focus Filter
Required Accessories
- Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Safety Cable: SC-07
- TRUE1 Style Power Extension Cables
- 5-pin IP65 DMX Cables
- RDM2go
- Ovation Glass Gobo Holder
- Ovation Metal Gobo Holder
- Ovation Iris
- Ovation GR-1 IP Gobo Rotator
- USB Jump Drive
Downloads
- Ovation Rêve E-3 IP Quick Reference Guide
- Ovation Rêve E-3 IP 2D CAD File
- Ovation Rêve E-3 IP 3D CAD File
- Ovation Rêve E-3 IP – Photometrics Report
- Ovation Rêve E-3 IP – IES File
- Ovation Rêve E-3 IP – User Manual
- Ovation Rêve E-3 IP – DMX Chart
- Ovation Rêve E-3 IP – Firmware
