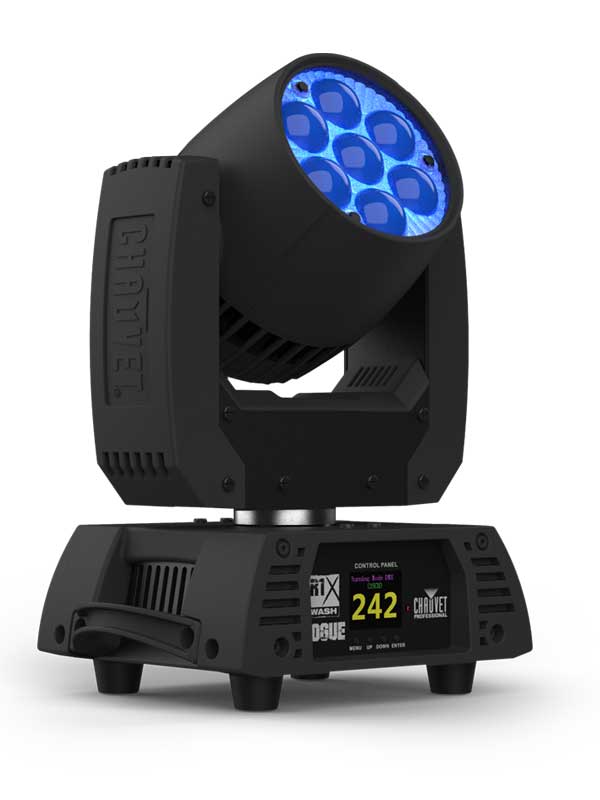

Rogue R1X Wash

Rogue R1X Wash distinguishes itself by offering a combination of performance features unique to its price class. Powered by seven RGBW 25 W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique “bubble” lens design for excellent color rendering and stunning visual effects. Other standout features include an incredible 7.9° to 62.7° zoom range, incredibly fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors. Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.


At a Glance

  • Fully featured RGBW LED yoke wash fixture with zoom

  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

  • 7 RGBW LEDs, 25 W each

  • 3- and 5-pin DMX input/output connections

  • Unique lens design for excellent color blending

  • Fast, smooth pan and tilt movement

  • RDM enabled for remote addressing and trouble shooting

  • Selectable LED maximum output to match legacy Rogue R1 Washes

  • Selectable PWM settings for camera operation

  • 6 distinct dimming modes for advanced control

  • User-selected calibrated white for 7500 K at full output

  • Omega mounting bracket, fits all Rogue and Maverick fixtures

  • Easy to read OLED display with simple, effective menu options

  • Simple and complex DMX channel profiles for programming versatility

Specifications

Optical

  • Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K Beam Angle: 8° to 30°
  • Beam Angle: 7.9° to 35.5°
  • Field Angle: 11.5° to 50.8°
  • Cutoff Angle: 19.3° to 62.7°
  • Zoom Range: 7.9° to 62.7°
  • Lumens – Source: 4,000
  • Lumens – Output: 2,455
  • Illuminance (11°): 2,872 lux @ 5 m
  • Illuminance (50.8°): 279 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

Construction / Physical

  • Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
  • Weight: 13.6 lb (6.2 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

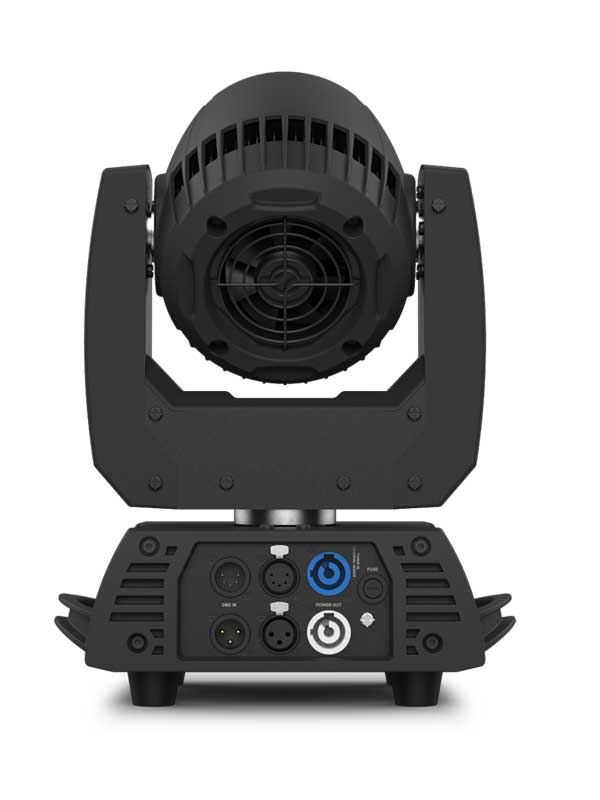

Connections

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 14, 15, 19 or 21
  • Modes/Personalities: 4 personalities (14, 15, 19, 21)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 8 units @ 208 V; 10 units @ 230 V
  • Power and Current: 303 W, 2.34 A @ 120 V, 60 Hz
  • Power and Current: 297 W, 1.35 A @ 208 V, 60 Hz
  • Power and Current: 299 W, 1.20 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location

What's Included

  • Rogue R1X Wash
  • Neutrik® powerCON® power cord
  • Omega bracket with mounting hardware

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • Neutrik® powerCON® cables
  • DMX Cables
  • Flight Case: CP6CASER1W
  • UPLOAD 08
