Synapse 4

Synapse 4 functions as an intelligent relay pack to control the power sent to individual lighting units. Synapse 4 can de-power entire sections of an installation, which prolongs the lifespan of lighting fixtures and decreases overall power consumption, saving energy and money. Rack, truss or wall mountable, Synapse 4 also offers flexible options to control its four outputs: 1) via DMX; 2) upon sensing the loss of the DMX signal; 3) via an internal scheduler that can be used to specify that individual outputs be turned on/off. As an added convenience, a 4-port DMX opto-isolator allows users to easily branch their DMX universe in multiple directions and amplify the signal after a long cable run.


At a Glance

  • Controllable powerCON relay pack and DMX optically isolated splitter/amplifier

  • Compounds the savings of LED fixtures by completely removing power when not in use

  • Individually control all 4 relays via DMX, DMX sensing or internal scheduler for specific on/off times every day

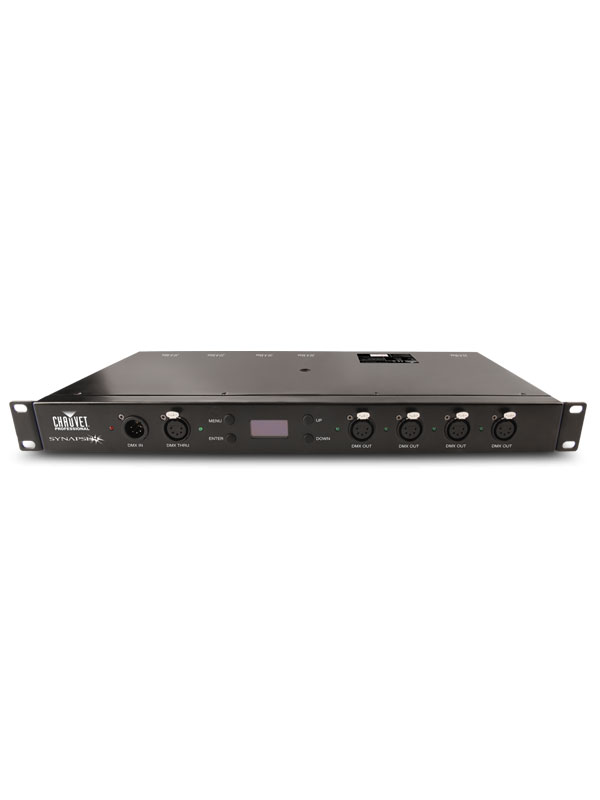

  • Optically isolated 5-pin DMX splitter provides an easy hub for running DMX to multiple locations

  • Convenient mounting options; rack mount, wall mount or clamped to truss

Specifications

Construction / Physical

  • Dimensions: 19 x 7.87 x 1.75 in (483 x 200 x 44.5 mm)
  • Weight: 6 lb (2.8 kg)
  • Exterior Color: Black
  • Rackmount: 1U

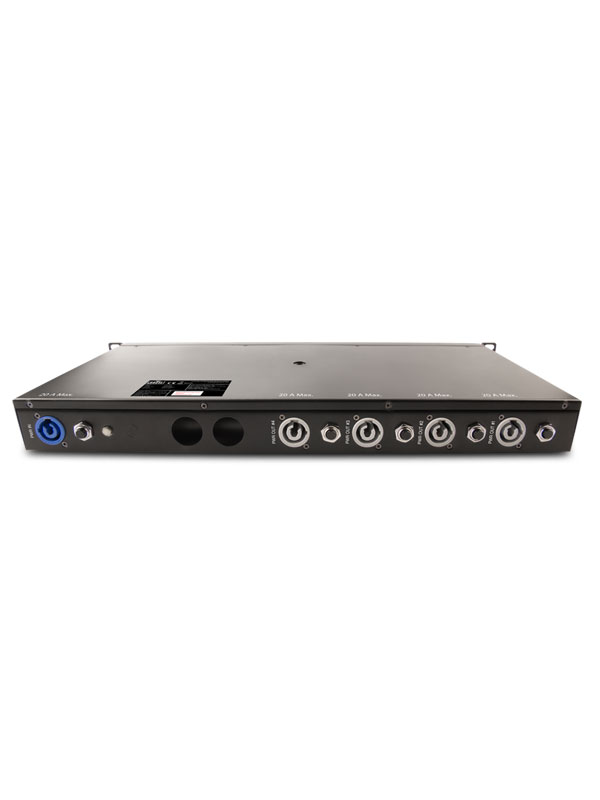

Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX
  • DMX Channels: 1 or 4

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Main breaker size: 20 A, 250 V
  • Breaker size per output: 20A, 250 V

Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location
