New

IP Tester

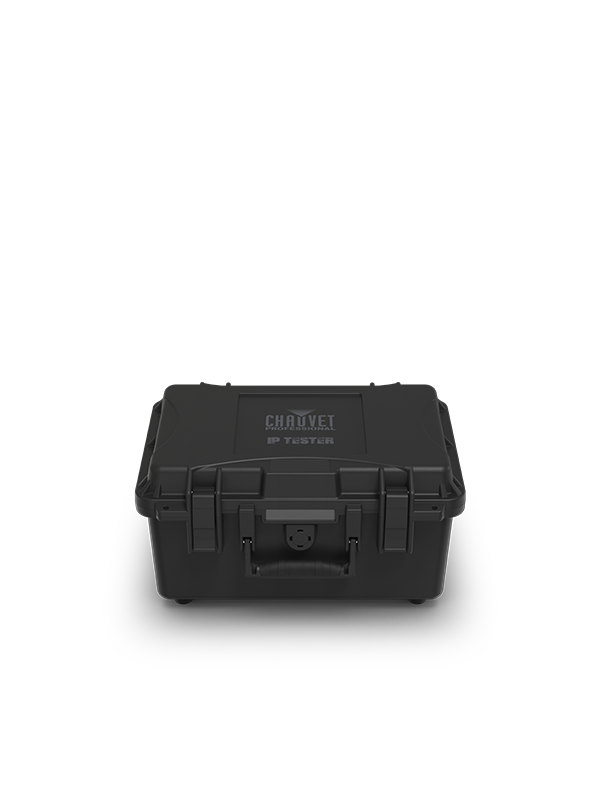

IP Tester is a portable tool capable of testing the vacuum and pressure parameters of IP rated products. It comes with pre-loaded testing personality files for CHAUVET Professional IP rated fixtures as well as offering the ability to easily create custom testing profiles. A built-in web server allows for easily connecting to PC computers for creating fixture profiles and storing information collected from tests. IP Tester is a useful tool for testing any CHAUVET Professional IP rated product fitted with Gore valves. Housed in a compact and impact resistant ABS plastic case designed with touring in mind and able to fit in tool and road cases.

Compatible with all IP rated products with Gore valves.


At a Glance

  • Portable, compact IP testing device capable of both vacuum and pressure testing parameters.

  • Pre loaded testing personality files for CHAUVET Professional IP rated products

  • Easy to build custom testing profiles

  • Built in webserver to easy connection to PC computers for creating fixture profiles and storing information from tests

  • USB-C input for easy software upgrades and for storing fixture test data

  • USB-B port for easy connection to PC

  • Compact and impact resistant ABS plastic case is designed to fit in tool and road cases with touring in mind

Specifications

Construction / Physical

  • Dimensions: 14.38 x 11 x 7.5 in (365.25 x 279.4 x 190.5 mm)
  • Weight: 9.4 lb (4.3 kg)
  • Exterior Color: Black
  • Housing Material: Injection molded case

Connections

  • Power Connection: Edison plug to Seetronic Powerkon
  • Power Input: Seetronic Powerkon
  • Quick-Release Air Hose Fitting
  • Air In/Out Vent
  • Data Connection: USB-B Port, USB-C
  • Cable Length (power): 5 ft (1.5 m)

Control

  • 6 button LCD menu
  • Built in webserver for USB connection to PC
  • remote information storage over USB-C input

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 25 W, 0.335 A @ 120 V, 60 Hz
  • Power and Current: 25 W, 0.214 A @ 208 V, 60 Hz
  • Power and Current: 25 W, 0.205 A @ 230 V, 50 Hz

What's Included

  • IP Tester
  • Seetronic powerKon IP65 Power Cord to Edison
  • USB Cable
  • M12 Threaded Brass Nozzle with Push-to-Connector Fitting
  • (2) M12 threaded metal plugs
