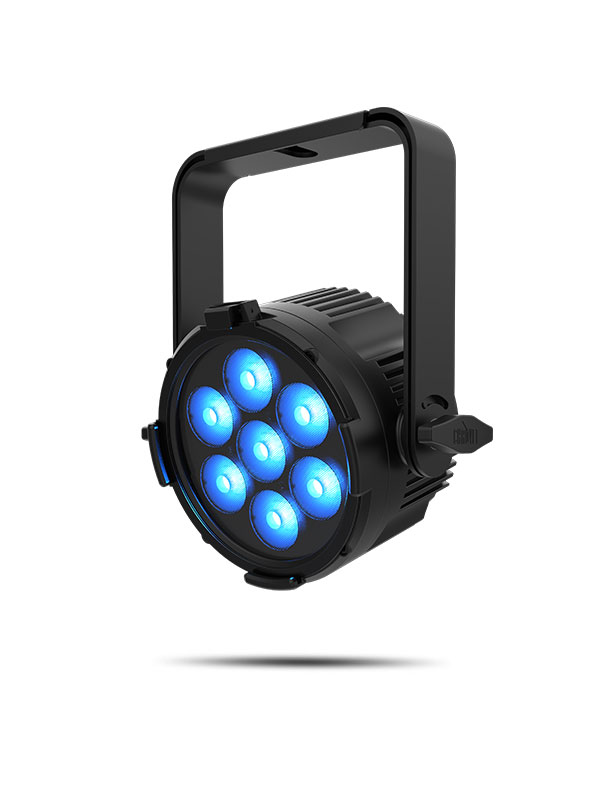

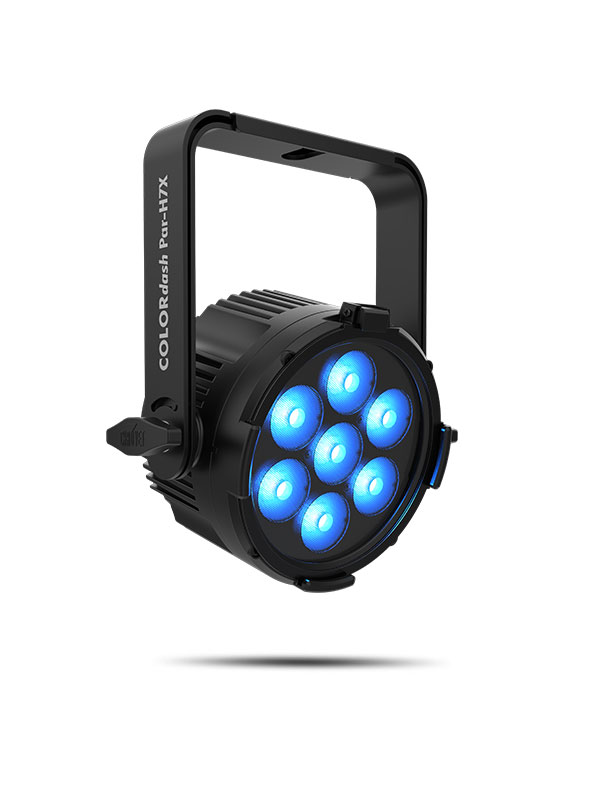

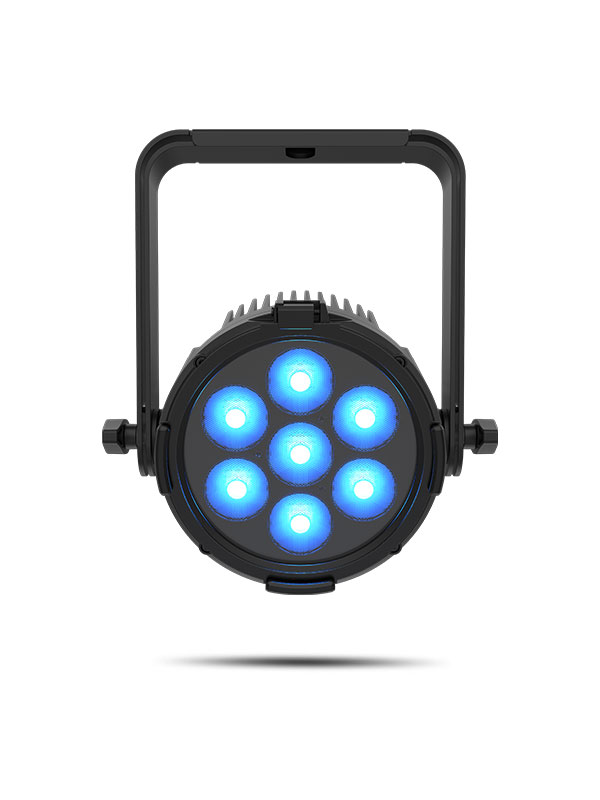

COLORdash PAR H7X

In the rig or on the floor, live or on camera, the lightweight COLORdash PAR H7X RGBWAUV LED wash is a portable six pound package that delivers a broad palette of subtle to saturated color with beautiful precision. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H7X is a die-cast workhorse that withstands the rigors of real world use while offering convenient operation and excellent performance.


At a Glance

  • Rugged RGBWA-UV LED wash for events

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • RDM (Remote Device Management) for added flexibility

  • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades

  • Easy to read OLED display with password protection and touchscreen interface

  • Advanced optics provide exceptional color mixing and high efficiency

  • Double-bracketed yoke with omega bracket doubles as floor stand

Specifications

Optical

  • Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (505 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10,000 K
  • Color Temperature (at full): 14,329 K
  • Beam Angle: 22.7°
  • Field Angle: 37.6°
  • Lumens: 2738
  • Illuminance (total): 522 lux @ 5 m
  • Selectable PWM: 600 Hz, 1.2K Hz, 2K Hz, 4K Hz, 6K Hz, 25K Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No

Construction / Physical

  • Dimensions: 10.16 x 9.45 x 4.57 in (258 x 240 x 116 mm)
  • Weight: 6 lb (2.7 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 6.5 in (165 mm)

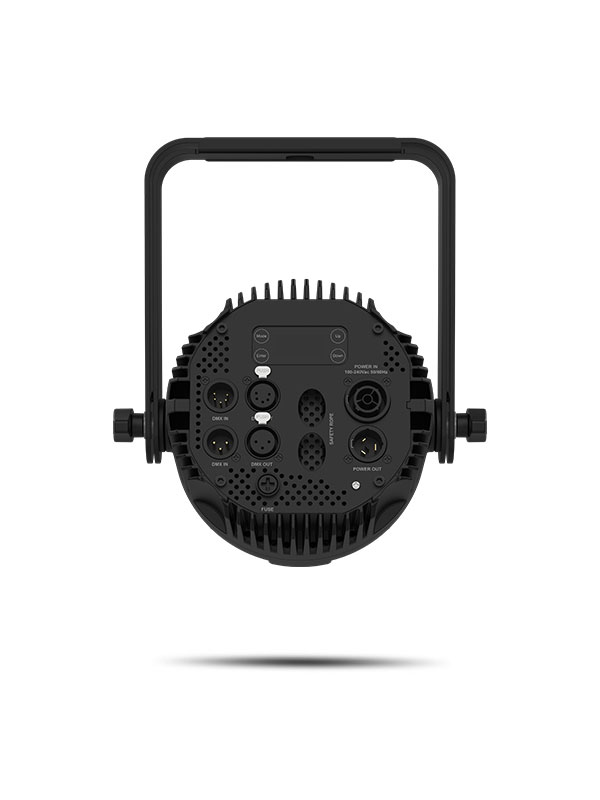

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
  • Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 20 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
  • Power and Current: 70 W, .592 A @ 120 V, 60 Hz
  • Power and Current: 67 W, .344 A @ 208 V, 60 Hz
  • Power and Current: 67 W, .312 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC, UKCA, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • Colordash Par H7X
  • Seetronic powerkon IP65 power cord
  • Gel frame holder
  • Gel frame

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 3- or 5-pin DMX Cables
