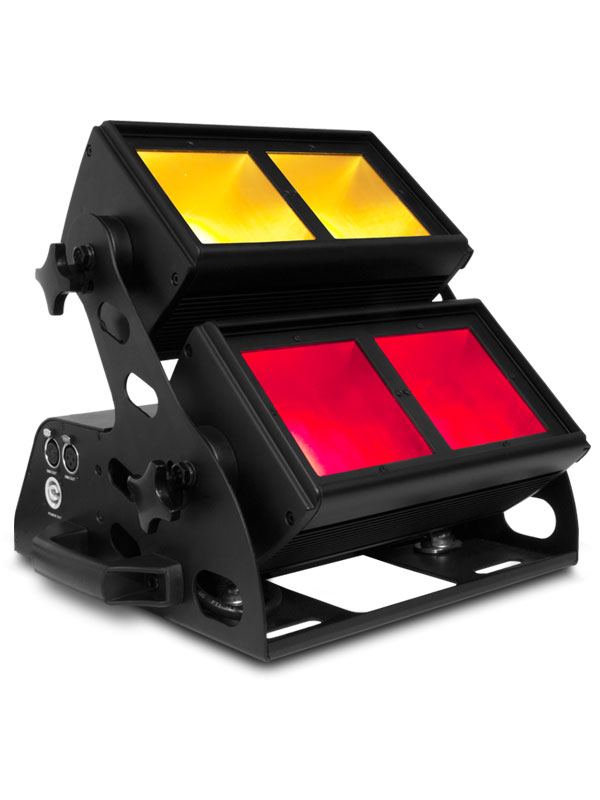

Ovation C-640FC

Ovation C-640FC is a great LED replacement for halogen cyc lights. It can create practically any color in the gel books while consuming less power than traditional fixtures. The addition of white and amber chips affords superb color rendering and a vast palette from soft pastels to saturated hues. It features the Virtual Color Wheel (VCW) that gives instant access to the industry’s most popular cyc and strip colors and is accessible in standalone or via DMX. Power linking is fast and convenient using industry standard Neutrik powerCON connectors. Ovation C-640FC is theater-ready with 16-bit dimming control (master dimmer and individual color).


At a Glance

  • Display a full spectrum of hues with RGBAW LEDs for versatility

  • Static color mixing without DMX control

  • Theatre-ready with 16-bit dimming of master dimmer and individual colors

  • Better coverage with two individually adjustable heads

  • Compact cyclorama wash lighting fixture

Specifications

Optical

  • Light Source: 64 LEDs (16 red, 16 green, 16 blue, 8 white, 8 amber) 3 to 5 W, (850 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 35°
  • Field Angle: 65°
  • Illuminance: 141 lux @ 5 m
  • PWM Frequency: 900 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

Construction / Physical

  • Dimensions: 15.3 x 12.2 x 11.7 in (390 x 310 x 298 mm)
  • Weight: 22 lb (9.98 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 5.32 x 9.65 in (135 x 245 mm)

Connections

  • Power Connection: Edison plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX
  • DMX Channels: 3, 4, 5, 6, 7, 8, 12, 18 or 24
  • Modes/Personalities: 12 personalities (TOUR, TR16, ARC1, AR1D, ARC2, ARC3, AR3D, AR3S, HSV, PIX1, PIX3, PX16)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
  • Power and Current: 175 W, 1.44 A @ 120 V, 60 Hz
  • Power and Current: 173 W, 0.83 A @ 208 V, 60 Hz
  • Power and Current: 173 W, 0.76 A @ 230 V, 50 Hz

Battery

Clamp

Cable

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location

What's Included

Required Accessories

Optional Accessories

Downloads

 Ovation C-640FC Quick Reference Guide
 Ovation C-640FC User Manual
 Ovation C-640FC DMX Chart
 Ovation C-640FC CAD File
 Ovation C-640FC ShowXpress Profile
 Ovation C-640FC Photometric File
