COLORdash Accent 3
COLORdash Accent 3 delivers a tremendous punch of evenly mixed light in a tight 9 degree beam, expandable up to 14 degrees without sacrificing any quality of light. Powered by a 20W RGBA LED, this palm-sized fixture excels at delivering saturated colors and brilliant pastels with a soft, even glow. Variable pulse width modulation allows this fixture to be used for any on camera applications without any issue of flicker and an onboard OLED display effortlessly controls and addresses the fixture via DMX or in a stand-alone mode.
At a Glance
Quad-color (RGBA) compact LED wash
Extremely compact with excellent output
Variable electronic dimmer (0–100%)
Simple and complex DMX channel profiles with RDM for programming versatility
Double-bracketed yoke doubles as floor stand

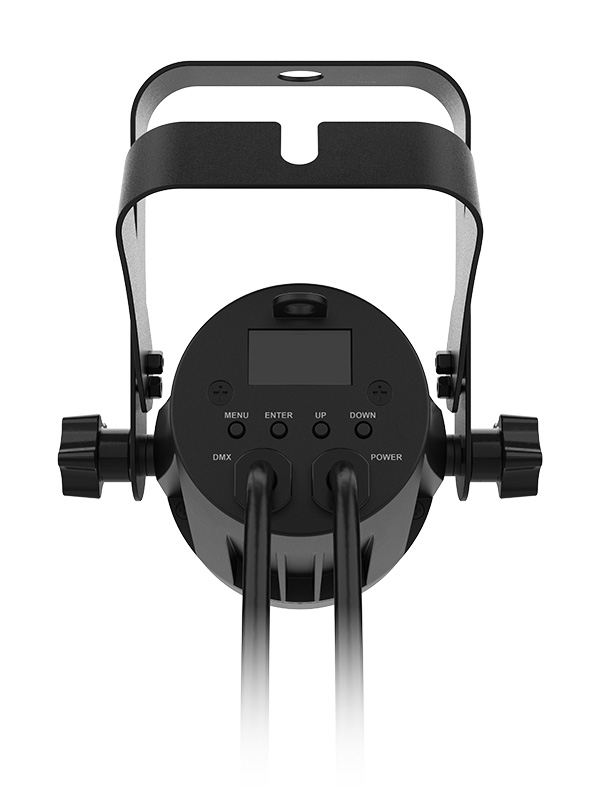

Easy to use OLED digital display
Replaceable filter for additional beam angles
Built-in auto programs recalled via DMX or Master/Slave
Specifications
Optical
- Light Source: 1 LED (quad-color RGBA) 20 W, (950 mA), 50,000 hours life expectancy.
- Installed Optics: 7°
- Beam Angle w/ filter: 14°
- Field Angle w/ filter: 27°
- Beam Angle w/o filter: 9°
- Field Angle w/o filter: 16°
- Lumens: w/o filter: 377 lm
- Lumens: w/ filter: 393 lm
- Illuminance (total) w/ filter: 175 lux @ 5 m
- Illuminance (total) w/o filter: 486 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 25 Hz
- Standalone Color Mixing: Yes
- Dim Modes: 5
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 163 x 133 x 80 mm
- Weight: 2.0 lb (0.9 kg)
- Exterior Color: Black
Connections
- Power Connection: Edison plug to hard-wired
- Power Input: Hard-wired
- Data Connectors: 5-pin XLR DMX input and output cable whips
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 4, 7 or 11
- Modes/Personalities: 3 personalities (4, 7, 11)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 18 W, 0.141 A @ 120 V, 60 Hz
- Power and Current: 21 W, 0.098 A @ 208 V, 60 Hz
- Power and Current: 20 W, 0.087 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET
- IP Rating: IP20, dry location
What's Included
- COLORdash Accent 3
Optional Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- 5-pin DMX Cables
Downloads
- COLORdash Accent 3 Quick Reference Guide
- COLORdash Accent 3 User Manual
- COLORdash Accent 3 CAD File
- COLORdash Accent 3 IES File
- COLORdash Accent 3 Photometrics Report
- COLORdash Accent 3 DMX Chart
- COLORdash Accent 3 – Firmware
- Descargar Archivo de Personalidades ChamSys
- Download ChamSys Personalities File
