New

COLORado 1QS

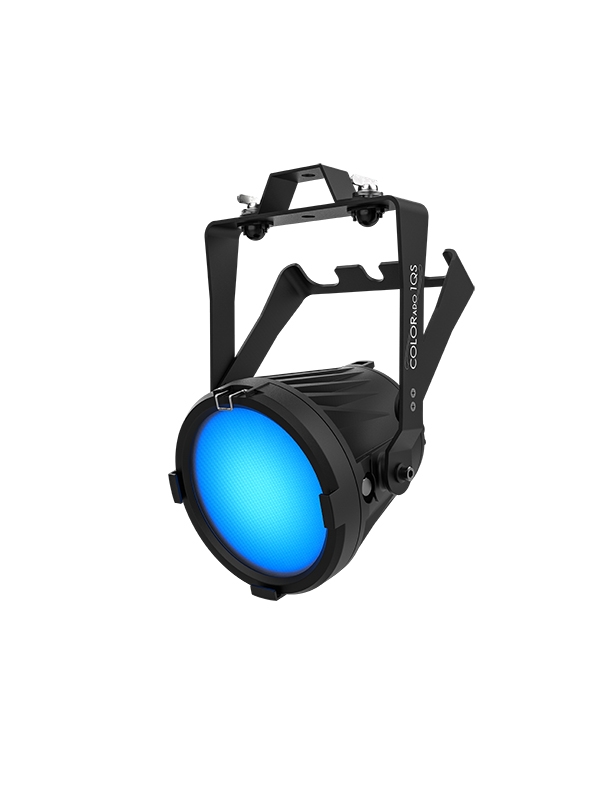

COLORado 1QS is a robust indoor/outdoor wash light that delivers fully homogenized output from a single, high-power RGBW LED source. A 17° beam angle offers versatile control and 16 bit-dimming facilitates smooth fades. The unit’s IP65 housing makes it ideal for touring, rental, and production markets. Outdoor-rated power and data connectors allow for easy connections without propriety cabling. The unit also includes an omega bracket with ¼ turn adaptors for fast and easy rigging and is compatible with all 7.5” accessories.


At a Glance

  • RGBW LED wash for touring, rental, and production, indoors or out

  • All environment operation with IP rated power and DMX connections

  • Flat, even field of light from a single source

  • RDM and variable PWM (Pulse Width Modulation) for setup ease

  • Accepts standard 7.5” beam shaping accessories

  • 16-bit dimming resolution for smooth fades

  • Double-bracket yoke doubles as floor stand

Specifications

Optical

  • Light Source: 24 LEDs (quad-color RGBW) 3 W, (900 mA), 50,000 hours life expectancy.
  • Color Temperature (range): 2800 to 10,000 K
  • Beam Angle: 17°
  • Field Angle: 30°
  • Lumens: 3401 lm
  • Illuminance (total): 1268 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 18,000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: No
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

Construction / Physical

  • Dimensions: 10.75 x 8.27 x 13.19 in (273 x 210 x 335 mm)
  • Weight: 10.8 lb (5.0 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 7, 10 or 15
  • Modes/Personalities: 5 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 18 @ units 100 V; 22 units @ 120 V; 35 units @ 208 V; 38 units @ 230 V; 40 units @ 240 V
  • Power and Current: 74 W, 0.613 A @ 120 V, 60 Hz
  • Power and Current: 79 W, 0.385 A @ 208 V, 60 Hz
  • Power and Current: 80 W, 0.350 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve

What's Included

  • COLORado 1QS
  • Seetronic Powerkon IP65 power cord
  • Gel Frame
  • Omega Bracket

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik® powerCON® cables
  • 3-pin or 5-pin DMX Cables
  • Color Blending Filters: DF60X1D, DF20D
  • Ovation F7.5” Barn door
  • Ovation 60 deg, 7.5” Honeycomb

Downloads

 COLORado 1QS Quick Reference Guide
 COLORado 1QS User Manual
 COLORado 1QS DMX Chart
 COLORado 1QS CAD Drawings
 COLORado 1QS IES Files
 COLORado 1QS Photometrics Report
