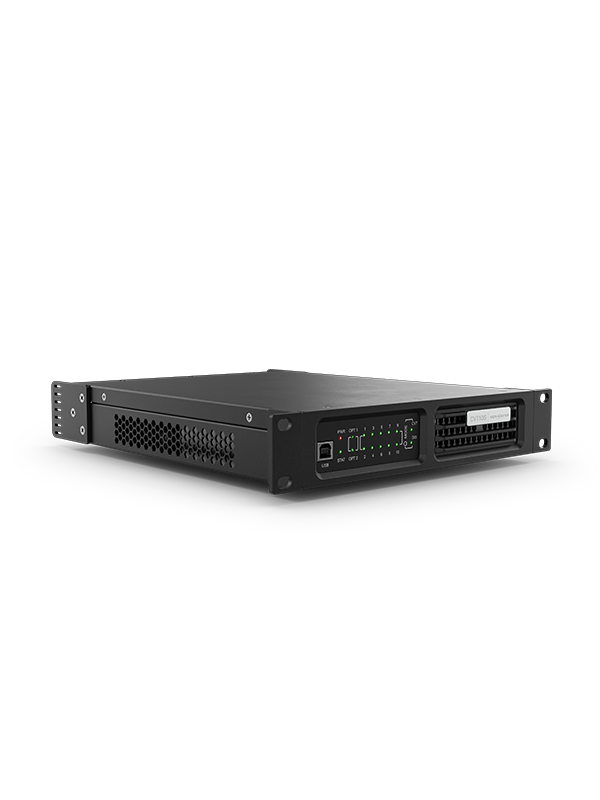

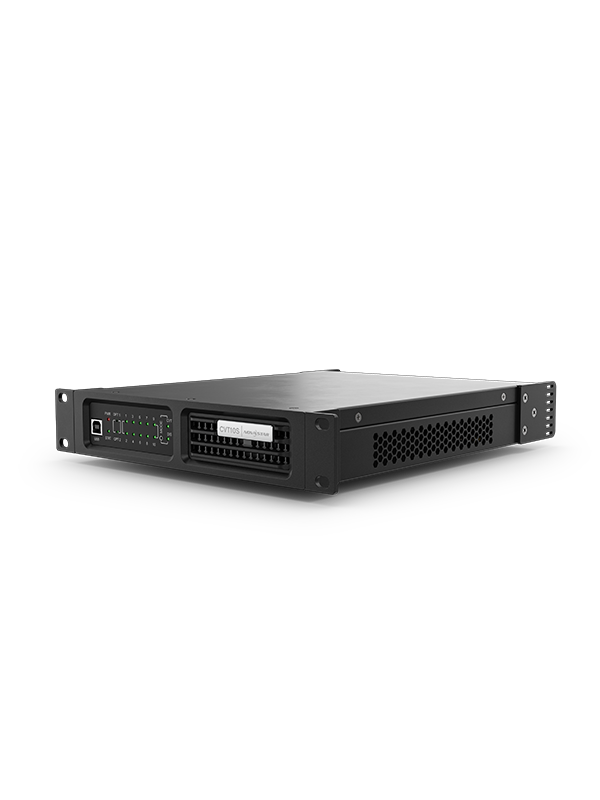

Novastar CVT-10s
NovaStar Fiber Converter CVT-10-S EO Converter offers a single-mode optical/electrical signal conversion solution for indoor use. Full-duplex low-interference data transmission makes this converter suitable for bridging long-distance signal runs. Its 19″ 1U design is both rack and desk mountable. Features include 10G optical modules, 1G Ethernet ports and a USB-B control port. Works with all NovaStar processors and supports 10x Gigabit Ethernet ports when used with the NovaStar MX40 Pro LED display controller.
At a Glance
Fiber to Ethernet converter for Novastar control protocol to distribute video panel data
10x Full Duplex Ethernet output ports
Supports Primary and Backup Fiber inputs
Supports Primary and Backup Working Mode (Ethernet)
Based on single mode, 1310nm fiber converters
Specifications
Optical
Construction / Physical
- Dimensions: 10.1x11.4x1.72 in (254.3x290x43.6mm)
- Weight: 4.63 lb (2.1 kg)
- Mounting: 1U Half Space Rackmount Screws
Connections
- Power Connection: Locking IEC to bare-ended (sold separately)
- Fiber Port(s) Type: 10 G, 1,310 nm Single Mode, 10 km Transmission Distance
- Signal Connector (Fiber): Dual LC
- Signal Connector (Ethernet): RJ-45
- Firmware Update Port: USB type-B
- Fiber Module Config: Primary (preinstalled), Backup (reserved)
- Display: LED Power/Signal Indicators
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power/Current (120V, 60 Hz): 150 W / 1.25 A
- Power/Current (208V, 60 Hz): 150 W / 0.73 A
- Power/Current (230V, 50 Hz): 150 W / 0.66 A
- Power/Current (240V, 50 Hz): 150 W / 0.63 A
Certifications / Qualifications
- Listings: RoHS, FCC, CE, IC, RCM
- IP Rating: IP20 (indoor)
- Thermal Dissipation: 512 BTU/hour
- Operating Temperature: -4 °F to 131 °F (-20 °C to 55 °C)
What's Included
- 1pc Fiber Converter
- 1pc power cord
Required Accessories
- Required Software: Novastar COEX VMP
- Controller (required): Novastar MX-series
