ÉPIX Strip IP 50

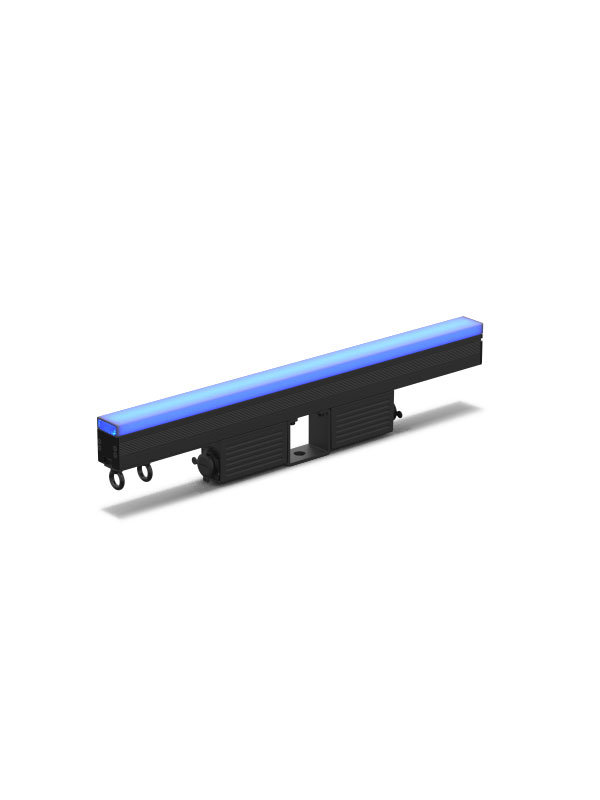

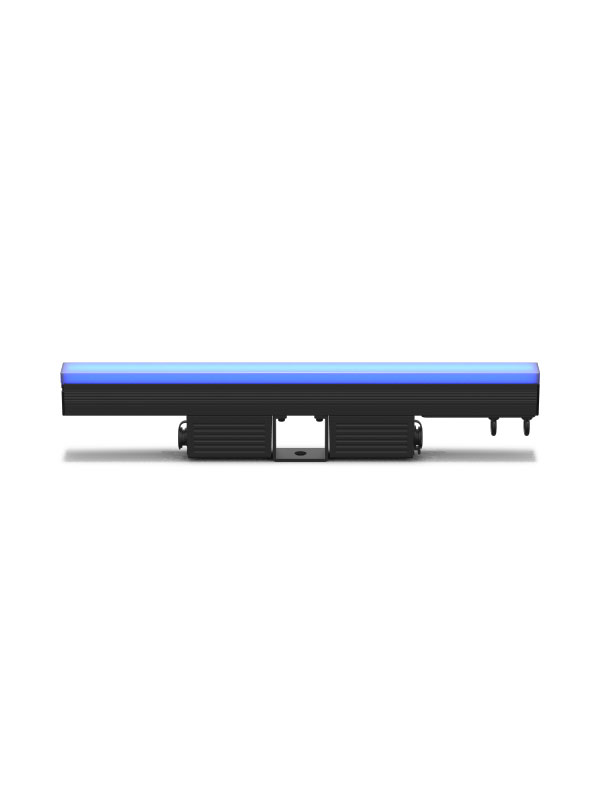

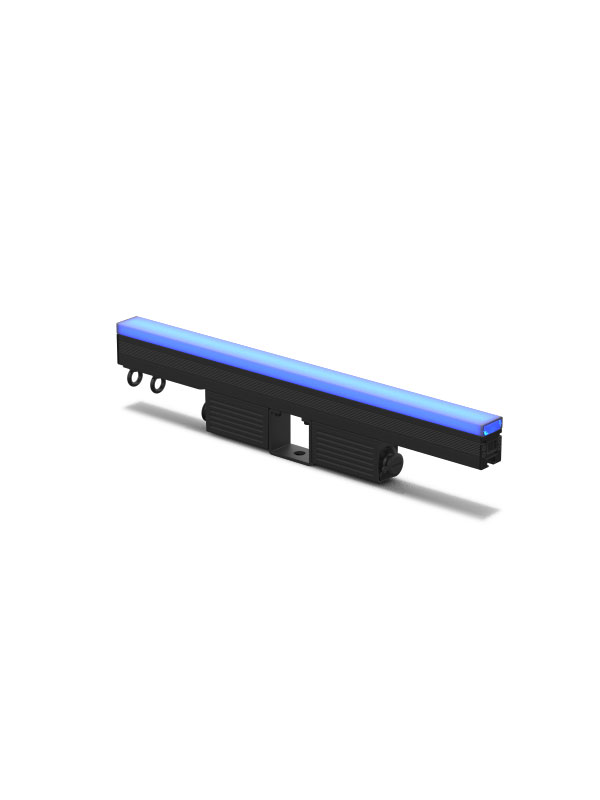

ÉPIX Strip IP 50 is an IP65 outdoor-rated pixel-mapping ½ meter LED strip fixture, featuring 50 LEDs. Ideal for use in tight spaces, this versatile fixture also comes with dome and flat accessories and stunning pre-built content to allow you to easily configure and program shows in minutes with minimum time/effort. Power and control it through our new ÉPIX Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN).


At a Glance

  • Pixel-mapping IP65 outdoor half-meter 50 x 1 LED strip for showing video and/or motion graphics

  • Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast

  • Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance.

  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets

  • Reduce programming time and increase application by using the alternate personalities of 7 channel, multi-section control (15-30 channels), or use the Pixel personality (150 channels) for use with video servers

  • Increase viewing angle by using the dome or square accessory

  • ÉPIX Drive 2000 IP required for operation

Specifications

Optical

  • Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
  • Viewing Angle (with installed Square Milky Filter): 160°
  • Viewing Angle (with optional Round Milky Filter): 160°
  • Viewing Angle (with optional Black Stealth Filter): 125°
  • Illuminance – open: 8,640 NITS
  • Illuminance - Square Milky Filter (installed): 2,470 NITS
  • Illuminance - Black Stealth Filter (included): 1,455 NITS
  • Illuminance – Round Milky Filter (included): 1,360 NITS
  • Pixels: 50 x 1
  • Pixel Pitch: 10 mm
  • Refresh Rate: 4,800 Hz (S-PWM)

Construction / Physical

  • Dimensions (with installed Square Milky Filter ): 19.68 x 1.33 x 3.93 in (500 x 34 X 100 mm)
  • Dimensions: (with included Black Stealth Filter) 19.68 x 1.33 x 3.46 in (500 x 34 x 88 mm)
  • Dimensions (with included Round Milky Filter): 19.68 x 1.77 x 5.03 in (500 x 45 X 128 mm)
  • Weight: 3.4 lb (1.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum

Connections

  • Data Connectors: IP-65 4-pin XLR
  • Physical Linking: 20 inline ÉPIX Strip IP per port of Drive 2000 IP
  • Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
  • Total max. cable length (shielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 210 ft (64 m)
  • Max. cable length (shielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 65 ft (20 m)
  • Max. cable length (shielded cables) between ÉPIX IP fixtures: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 300 ft (91 m)
  • Max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 150 ft (45 m)
  • Max. cable length (unshielded cables) between ÉPIX IP fixtures: 100 ft (30 m)

Control

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Channels Art-net, sACN: 7, 15, 30, 75, or 150

Electrical

  • Power and Current: 16 W, 0.133 A @ 120 V, 60 Hz
  • Power and Current: 17 W, 0.082 A @ 208 V, 60 Hz
  • Power and Current: 17 W, 0.073 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, outdoor/wet
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • ÉPIX Strip IP 50
  • Square milky filter (installed)
  • Round milky filter (included in box)
  • Black stealth filter (included in box)

Required Accessories

  • Controller (required): ÉPIX Drive 2000 IP
  • Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)
