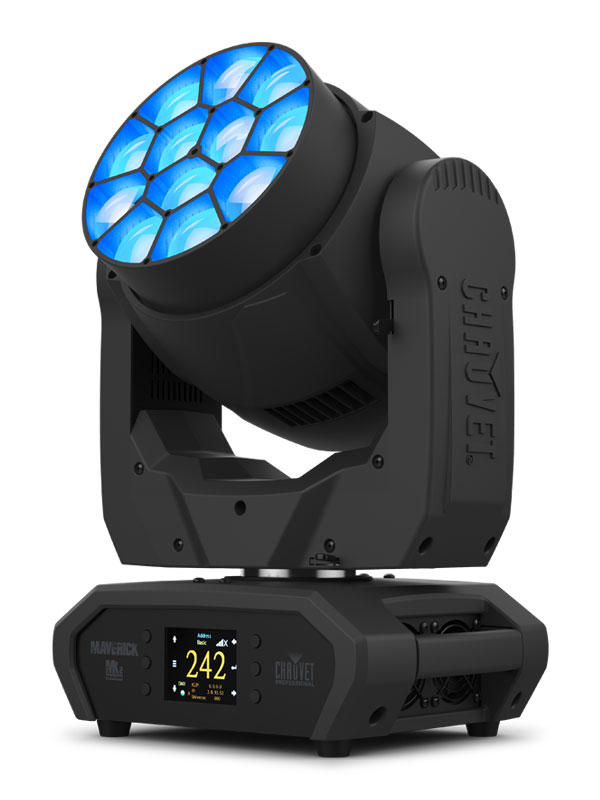

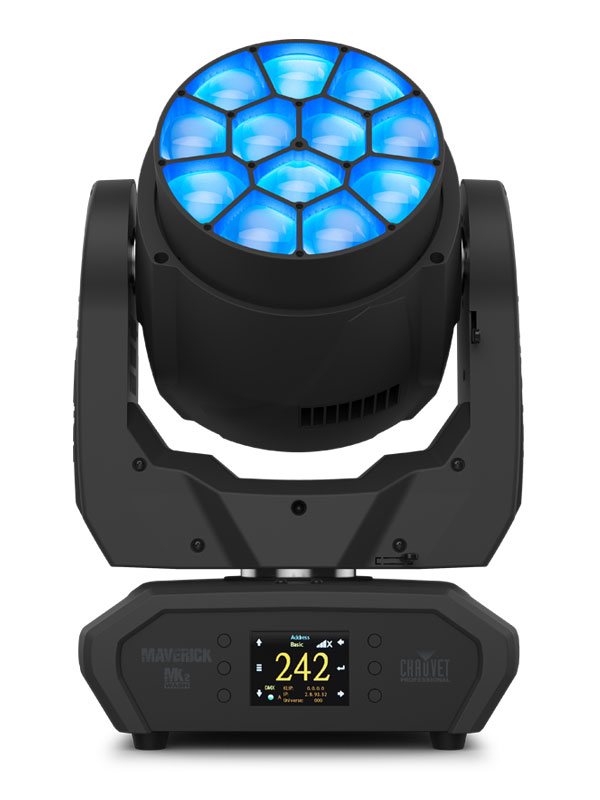

Maverick MK2 Wash

Maverick MK2 Wash rewrites the rules on wash fixtures with its flawlessly even output, custom designed optics, full pixel mapping, virtual gobo wheel with background colors, pre-programmed colors and 4.7° – 65.5° zoom range. Powered by 12 (40 W) Osram RGBW LEDs, it can handle any application, even aerial washing, with ease. Take control with DMX, sACN, Art-Net, Kling-Net or W-DMX.


At a Glance

  • Fully featured RGBW LED yoke wash fixture with pixel mapping and zoom

  • 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades

  • Virtual Color wheel with instantaneous access to 21 colors

  • Built in colors for quick design possibilities

  • Built in virtual gobo wheel with background colors for impressive atmospheric effects fast movement of pan, tilt, and zoom

  • Quiet operation for a wide range of installation situations

  • DMX, WDMX, S ACN, Art-Net, and Kling-Net control for full flexibility

  • 4.7° - 65.5° Zoom range for variable beam sizes

  • User selectable calibrated white for 7500 K at full output

  • True 1 compatible power input

  • Battery backup display with auto rotate depending on fixture orientation

  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

Specifications

Optical

  • Light Source: 12 LEDs (quad-color RGBW) 40 W, (2.6 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: : 4.7° to 37.5°
  • Field Angle: 7.9° to 55.1°
  • Cutoff Angle: 9.2° to 65.5°
  • Zoom Range: 4.7° to 65.5°
  • Lumens – Source: 8,800
  • Lumens – Output: 5,900
  • Illuminance (7.9°): 19,972 lux @ 5 m
  • Illuminance (55.1°): 807 lux @ 5 m
  • PWM Frequency: 600 Hz, 1,200 Hz, 2,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Curves: 4

Construction / Physical

  • Dimensions: 12.72 x 9.17 x 18.54 in (323 x 233 x 471 mm)
  • Weight: 32.8 lb (14.8 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

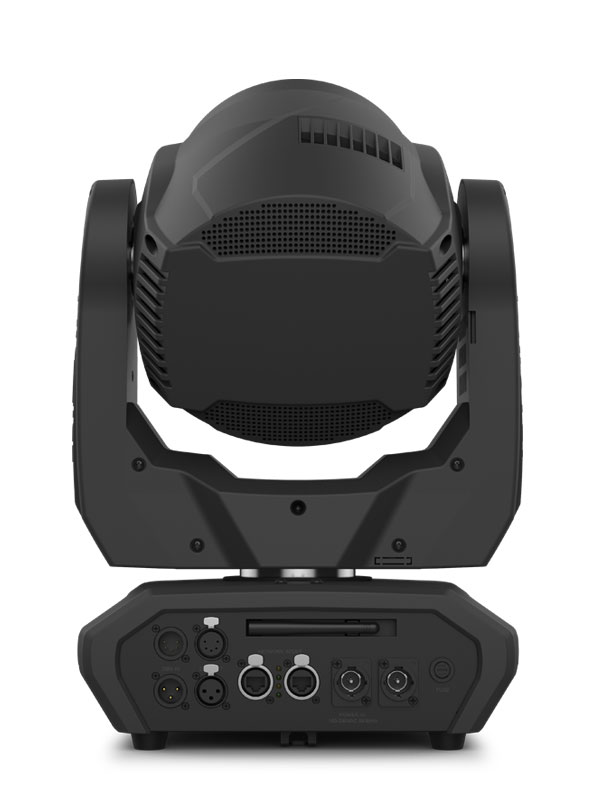

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input/Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
  • DMX Channels Single Mode: 20, 69, 115
  • DMX Channels Dual Mode – Function: 8, 20, 26
  • DMX Channels Dual Mode – Pixel: 36, 48, 60
  • Art-Net Channels Single Mode: 20, 69, 115
  • Art-Net Channels Dual Mode – Function: 8, 20, 26
  • Art-Net Channels Dual Mode – Pixel: 36, 48, 60

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
  • Power and Current: 503 W, 4.08 A @ 120 V, 60 Hz
  • Power and Current: 506 W, 2.33 A @ 208 V, 60 Hz
  • Power and Current: 509 W, 2.17 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP20, dry location

What's Included

  • MK2 Wash
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware

Required Accessories

Optional Accessories

Downloads

 Maverick MK2 Wash Quick Reference Guide
 Maverick MK2 Wash User Manual
 Maverick MK2 Wash CAD File
 Maverick MK2 Wash IES Files
 Maverick MK2 Wash Photometric Report
 Maverick MK2 Wash DMX Chart
