Ovation F-915FC

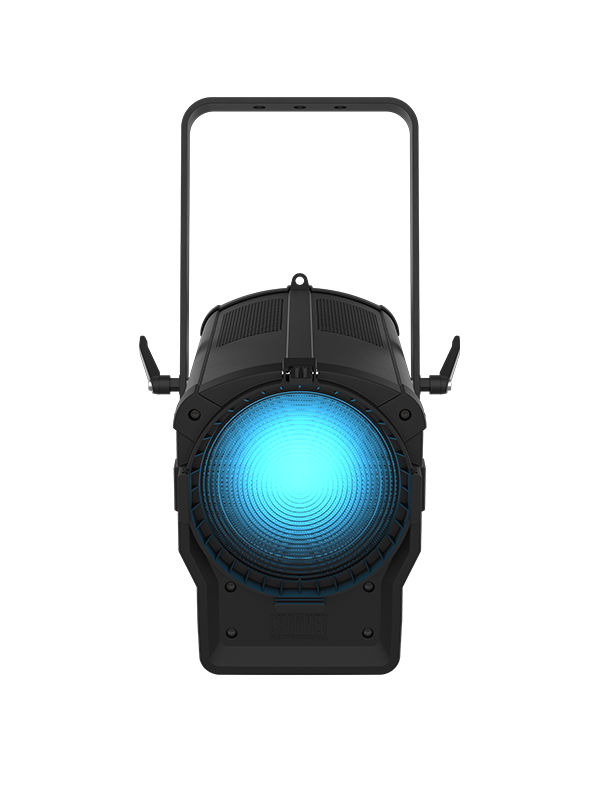

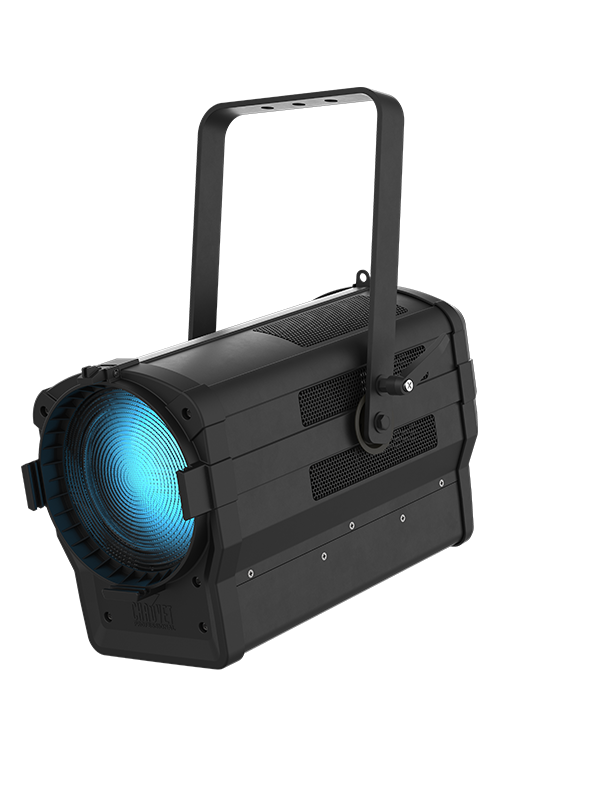

Ovation F-915FC is a high-power, full color mixing Fresnel style fixture that utilizes our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorized zoom with a 17° – 85° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials.


At a Glance

  • Full Color LED (RGBAL) Fresnel lighting fixture for theatre, film and production

  • Soft and even field of light

  • Smooth, motorized zoom from 17° to 85°

  • Beautiful 16-bit dimming of master dimmer and individual colors

  • Easy to use on board control of color, zoom and dimming

  • Virtual Color wheel with color matched to popular gel colors

  • Color Temperature Presets from 2800 K to 6500 K

  • RDM (Remote Device Management) for added flexibility

  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

  • Virtually silent operation for use in studio and theatre applications

Specifications

Optical

  • Light Source: 89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 6500 K
  • CRI (3200 K): 90
  • Beam Angle: 17° to 54°
  • Field Angle: 30° to 85°
  • Zoom Range: 17° to 85°
  • Lumens (30°): 4,294
  • Lumens (73°): 6,661
  • Illuminance (30°): 1,980 lux @ 5 m
  • Illuminance (85°): 433 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 27 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 22.41 x 12.59 x 10.82 in (569.44x 320 x 275 mm)
  • Weight: 19 lb (8.6kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast

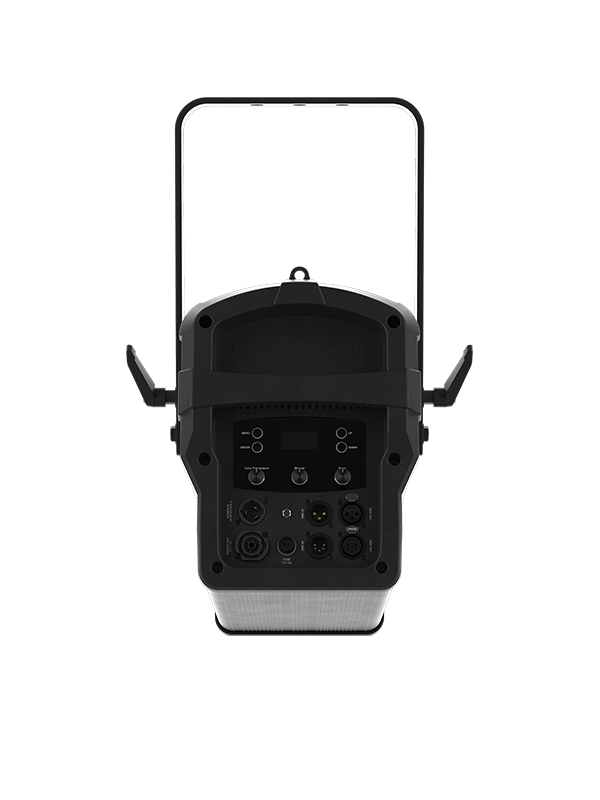

Connections

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 5, 7, 11, 13, 14 or 17
  • Modes/Personalities: 8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
  • Power and Current: 304 W, 2.576 A @ 120 V, 60 Hz
  • Power and Current: 293 W, 1.490 A @ 208 V, 60 Hz
  • Power and Current: 293 W, 1.358 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET, FCC
  • IP Rating: IP20, dry location

What's Included

  • Ovation F-915FC
  • Neutrik® powerCON® power cord
  • Gel frame (7.5 in/191 mm accessories)

Optional Accessories

ORDERING INFO

  • Item Code: 03031389
