Ovation GR-1 Adapter

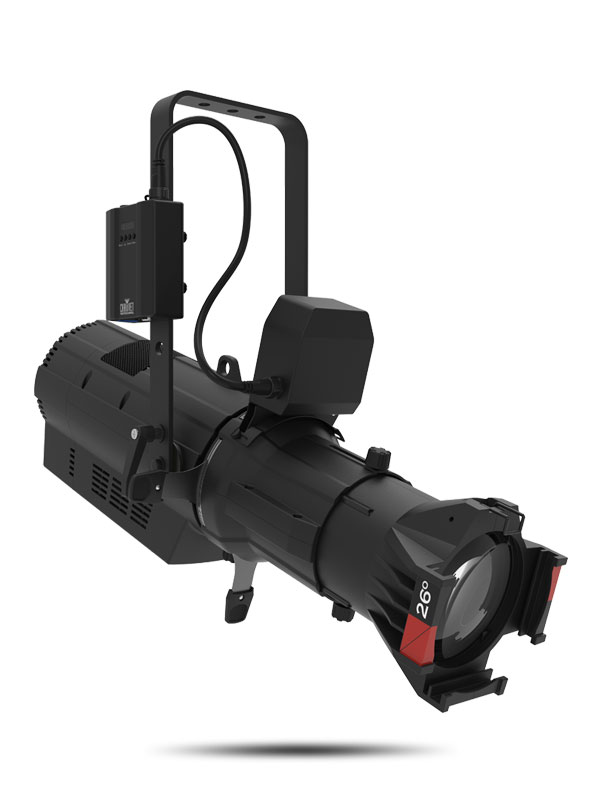

Ovation GR-1 Adapter allows the outdoor rated Ovation GR-1 IP  gobo rotator to function with any ERS-style fixture! The durable, power and data interface adapter is lightweight and can be easily mounted and secured to the yoke of any ERS-style fixture. Power up the adapter for the Ovation GR-1 IP via powerCON output and DMX in and thru is also available for easy control from your console.


At a Glance

  • Power and data interface to adapt Ovation GR-1IP to any ERS-style fixture

  • Utilize power from powerCON output of the ERS-style fixture

  • Easily secure to the yoke of the ERS-style fixture

  • On-board display for simple manual operation or DMX addressing

  • 5-pin DMX in and thru for easy control from your console

  • Requires Ovation GR-1 IP for operation (sold separately)

Specifications

Construction / Physical

  • Dimensions: 3.7 x 2.1 x 5.3 in ( 95 x 53.1 x 135.7 mm)
  • Weight: 0.6 lb (0.3 kg)
  • Exterior Color: Black
  • Housing Material: High-impact, flame retardant polymer, Steel

Connections

  • Power Connection: Neutrik powerCON linking
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 2ft 6 in (0.792 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1
  • Modes/Personalities: 1 personalities (1Ch)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 6 W, .092 A @ 120 V, 60 Hz
  • Power and Current: 5 W, .063 A @ 208 V, 60 Hz
  • Power and Current: 5 W, .060 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • Ovation GR-1 Adapter
  • Neutrik powerCON power linking cord
