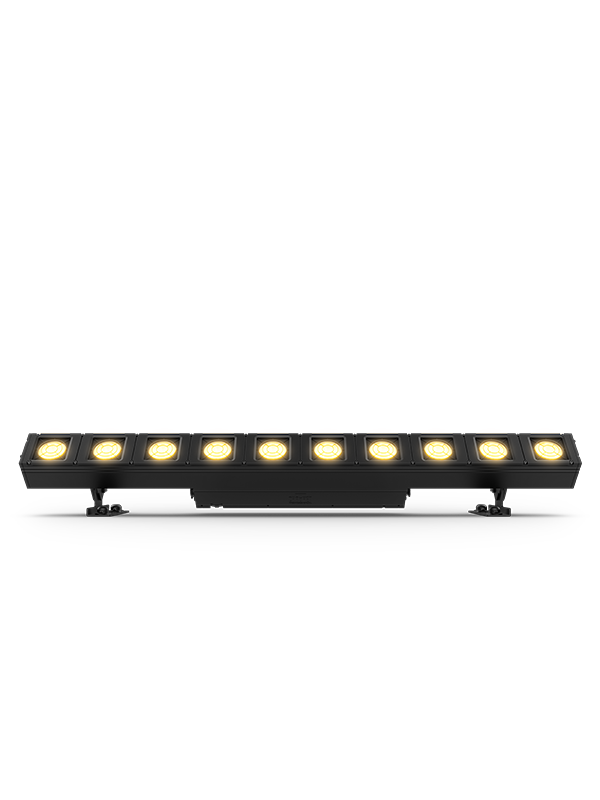

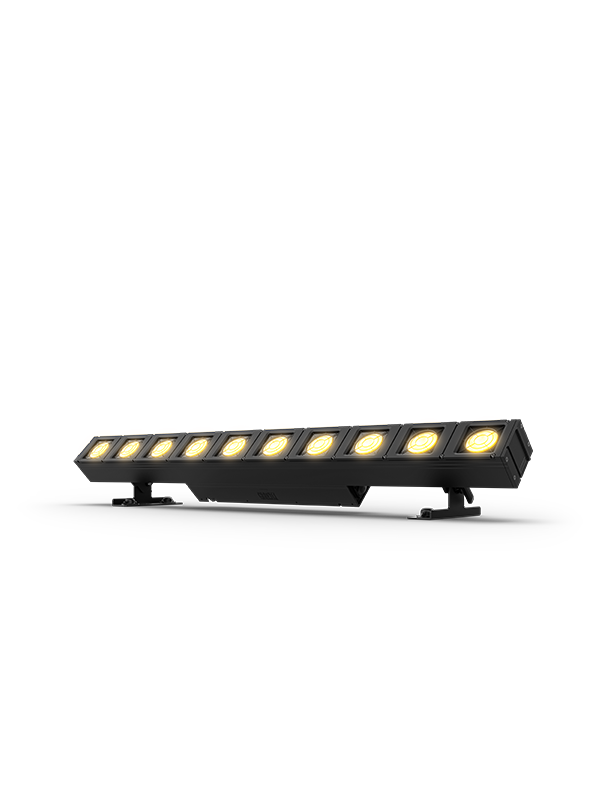

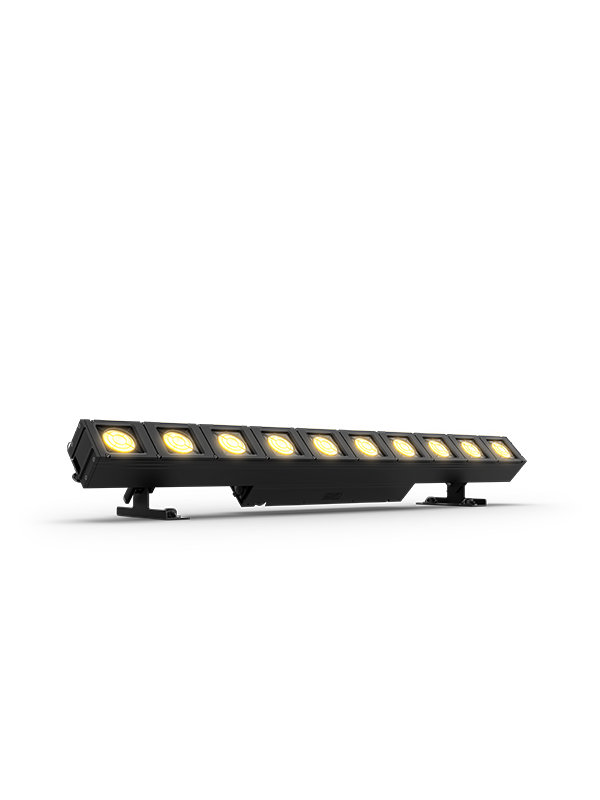

STRIKE Saber 10

The newest member of our tour-dominating STRIKE family is a ten-cell pixel-mappable IP65-rated WW/Amber batten that delivers the golden look of classic tungsten with emulated “red shift” that perfectly mimics the warmth of incandescent dimming. STRIKE Saber 10 is a blinder bright enough to dazzle the world’s largest arenas and its fast tool-free end-to-end interlocking system make it tour-ready. High CRI tunable warm white light and adjustable floor mount feet also make it a superb footlight. Whether strobing, chasing, or washing a scene in the warmest amber-white hues, its 16-bit dimming and selectable PWM produces the smoothest looks, live or on camera.


Specifications

Optical

  • 10 LEDs (Warm White/Amber)
  • Color Temperature (at full): 2792 K
  • CRI: 92.9
  • TLCI: 91
  • Beam Angle vertical: 20.9
  • Beam Angle horizontal: 20.9
  • Field Angle vertical: 25.1
  • Field Angle horizontal: 25.1
  • Lumens: 5,959
  • Illuminance: 1686 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Strobe: Electronic
  • Strobe Rate: 0 to 26.7 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 39.3 x 3.08 x 6.18 in (1000 x 78.4 x 157 mm)
  • Weight: 14.6 lb. (8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast

Connections

  • Power Connection: Edison (Local) plug to Seetronic Tru1
  • Power Input Seetronic Tru1
  • Power Output: Seetronic Tru1
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 6, 13, 22, 26Ch1 or 26Ch2
  • Modes/Personalities: 6 personalities (1Ch, 3Ch, 6Ch, 13Ch, 22Ch, 26Ch1, 26Ch2)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 6 units @ 110 V; 16 units @ 208 V; 1 units @ 230 V
  • Power and Current: 183 W, 1.83 A @ 100 V, 60 Hz
  • Power and Current: 181 W, 1.52 A @ 120 V, 60 Hz
  • Power and Current: 178 W, .86 A @ 208 V, 60 Hz
  • Power and Current: 177 W, .78 A @ 230 V, 50 Hz
  • Power and Current: 178 W, .75 A @ 240 V, 60 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • STRIKE Saber
  • Seetronic Powerkon – Bare Wire

Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Seetronic Powerkon power linking cables
  • 5-pin DMX Cables

ORDERING INFO

  • Item Code: 03032353
