COLORdash Accent 5X IP
A compact, IP65-rated wash fixture powered by a single 40W hex-color RGBAW+UV LED for a tremendous punch of evenly mixed, saturated color.
Its palm-sized, weatherproof design and flicker-free output make it ideal for discreet, high-impact accent lighting in broadcast, event, and architectural applications.
-
Hex-color (RGBWAUV) compact LED wash
-
Extremely compact with excellent output and IP65-rated versatility
-
Variable electronic dimmer (0–100%)
-
Simple and complex DMX channel profiles with RDM for programming versatility
-
Double-bracketed yoke doubles as floor stand
-
Easy to use OLED digital display
-
Replaceable filter for additional beam angles
-
Built-in auto programs recalled via DMX or Master/Slave
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
COLORdash Accent 5X IP
COLORdash Accent 5X IP delivers a tremendous punch of evenly mixed light with a tight 11.4° beam that can be expanded to 21.5° with its included filter. Powered by a 40W Hex-color RGBAW+UV LED, this versatile IP65-rated palm-sized fixture can be used indoors and out to deliver saturated colors and brilliant pastels with a soft, even glow. Variable pulse width modulation ensures flicker-free on-camera use. Convenient addressing for DMX control and easy menu navigation in stand-alone mode are offered via onboard OLED display.
Features
Rich Hex-Color Spectrum
A single 40W RGBAW+UV LED source delivers a wide palette of saturated colors, pastels, and true ultraviolet effects from a compact housing.
Powerful All-Weather Design
The IP65-rated, palm-sized body delivers impressive output for versatile accent lighting indoors or out, regardless of weather conditions.
Smooth Dimming Control
Achieve seamless fades and precise intensity adjustments with a variable electronic dimmer that offers five distinct dimming modes for ultimate control.
Flexible DMX and RDM
Utilize simple or complex DMX channel profiles and RDM for remote addressing, ensuring versatile integration into any professional lighting rig.
Versatile Mounting Options
A double-bracketed yoke allows for conventional truss mounting or use as a convenient floor stand for flexible uplighting applications.
Clear OLED Display
Easily navigate menus and configure settings directly on the fixture using the high-contrast OLED display, even in low-light environments.

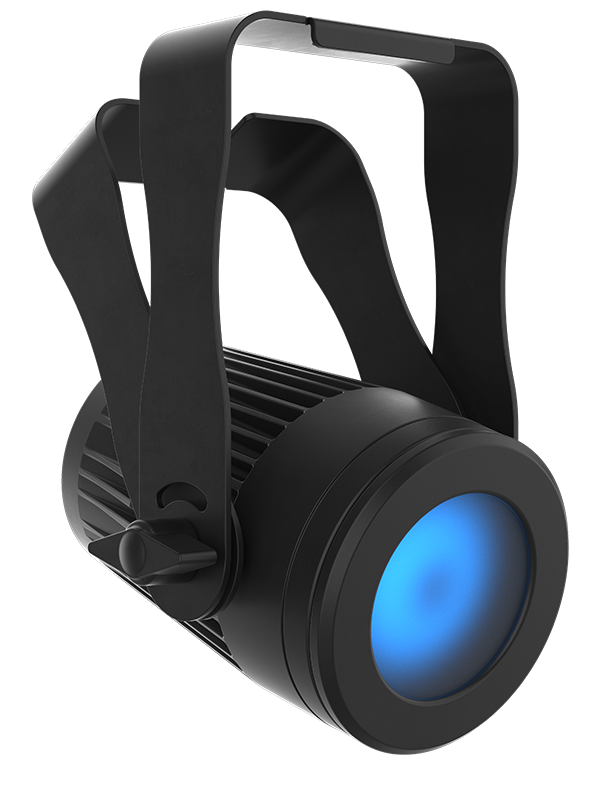

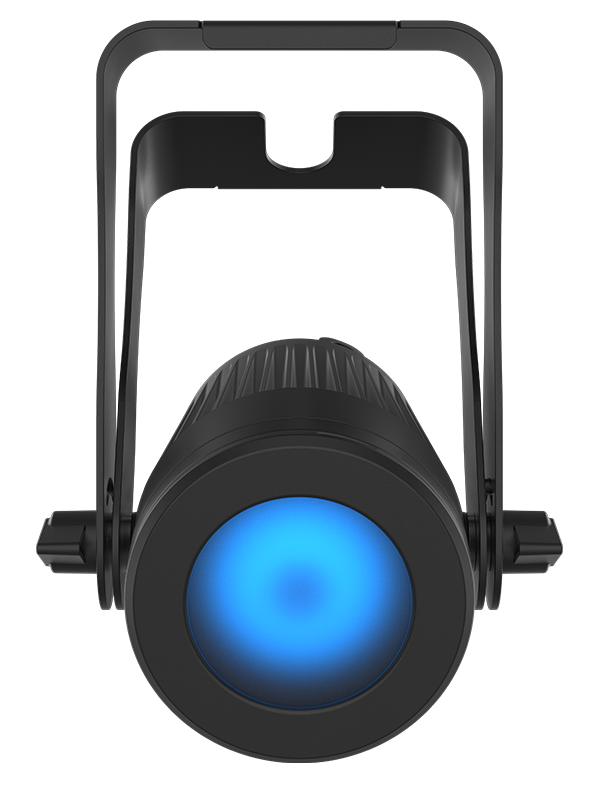

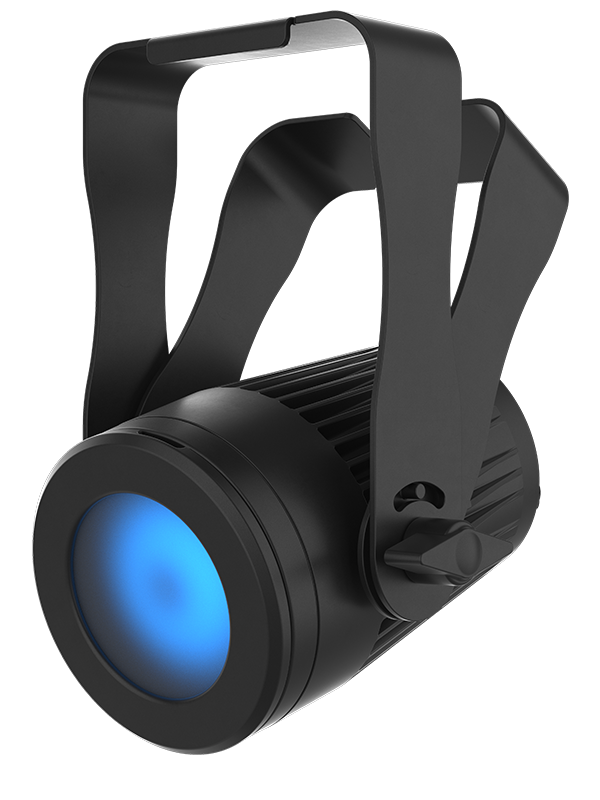

Included Beam-Shaping Filter
Expand the tight 11.4° beam to a wider 21.5° wash with the included filter, adapting the light for different coverage needs.
Standalone Automated Programs
Access built-in automated programs via DMX or Master/Slave mode for dynamic looks without the need for complex programming.
Complete Your Rig
Specifications
Optical
-
Light Source
1 LED (Hex-color RGBWA+UV) 40 W, (950 mA), 50,000 hours life expectancy.
-
Beam Angle w/ filter
21.5°
-
Field Angle w/ filter
47.1°
-
Beam Angle w/o filter
11.4°
-
Field Angle w/o filter
20.4°
-
Lumens
w/o filter: 890 lm
-
Lumens
w/ filter: 733 lm
-
Illuminance (total) w/ filter
126 lux 5 m
-
Illuminance (total) w/o filter
618 lux @ 5 m
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Strobe Rate
0 to 20 Hz
-
Standalone Color Mixing
Yes
-
Dim Modes
5
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
7.24 x 5.70 x 3.46 in (184 x 145 x 88 mm)
-
Weight
2.8 lb. (1.3 kg)
-
Exterior Color
Black
Connections
-
Power Connection
Edison plugs to hard-wired
-
Power Input
Hard-wired
-
Data Connectors
5-pin XLR DMX input and output cable whips
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
6, 8, 9, 13 or 14
-
Modes/Personalities
5 personalities (6, 8, 9, 13 or 14)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current
44 W, 0.68 A @ 120 V, 60 Hz
-
Power and Current
44 W, 0.48 A @ 208 V, 60 Hz
-
Power and Current
43 W, 0.44 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, RoHS
-
IP Rating
IP65, temporary outdoor/wet use with pressure equalizing M6 GORE valve
-
Temperature (Ambient)
14 °F to 113 °F (-10 °C to 45 °C)
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- 5-pin DMX Cables
What's Included
- COLORdash™ Accent 5XIP
- Frosted filter
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
COLORdash Accent 5X IP FAQ’s
This fixture is IP65-rated, meaning it is fully protected against dust ingress and low-pressure water jets from any direction. It is designed for temporary outdoor use in events, concerts, and architectural installations where weather is a factor.
Yes. The fixture comes standard with a tight 11.4° native beam angle. An included frosted filter can be easily attached to widen the beam to 21.5° for broader wash applications.
Absolutely. It features selectable Pulse Width Modulation (PWM) settings up to 25,000 Hz to ensure flicker-free operation on camera, making it a reliable choice for broadcast studios, livestreams, and film sets.
