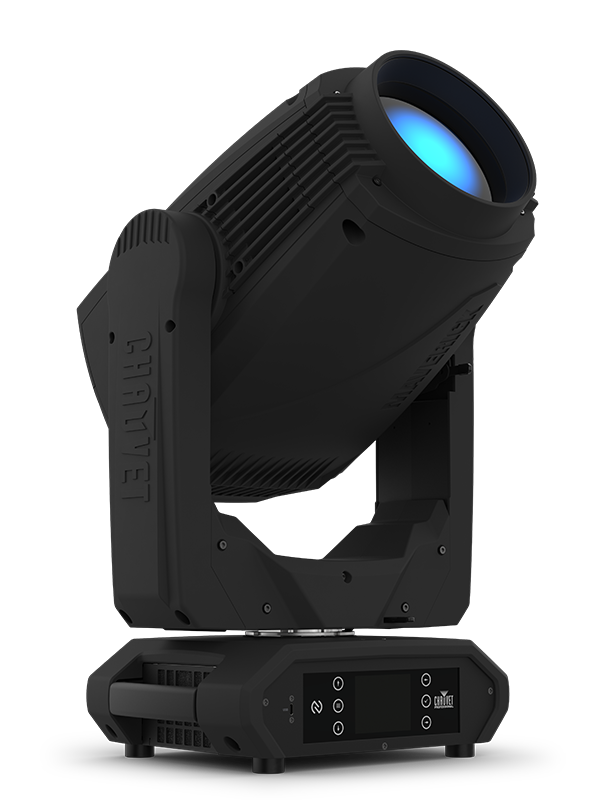

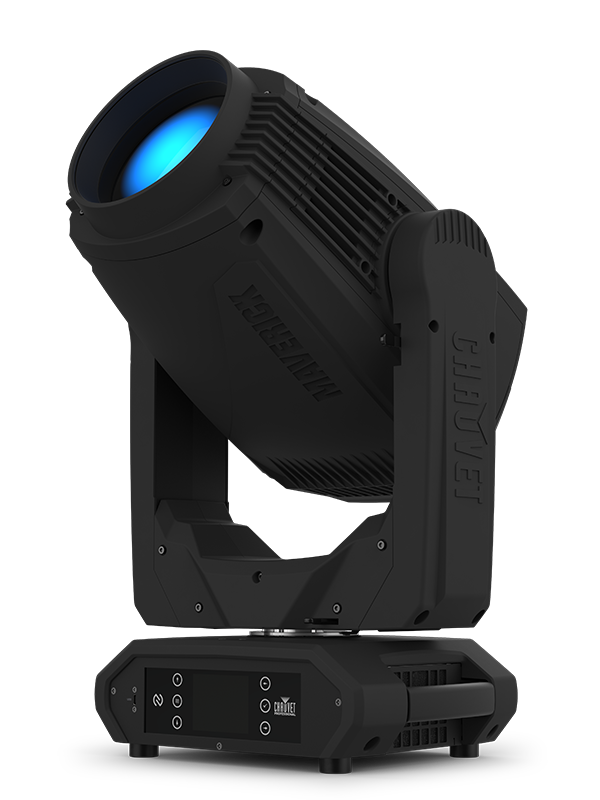

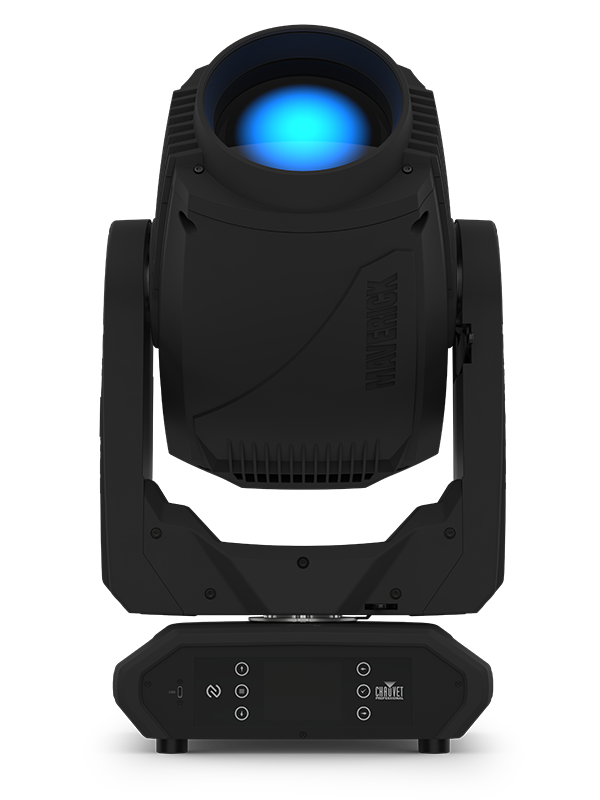

Maverick Force X Spot

This powerful yet lightweight fixture combines the latest technical advancements of the Maverick series to achieve 17,325 lumens of output in a design that maintains a flat field of focus from its narrow 3.5° beam to its wide 57.7° beam. Color calibration and gobo selection are comparable to other Force fixtures, and its design includes a variable CMY color mixing system, renowned for its true reds, a color wheel with CRI and CTB filters, static and rotating gobo wheels, a five-facet prism, iris, and frost. With excellent dimming performance, a wide 18:1 zoom, and a comprehensive array of features, the Maverick Force X Spot is a compact LED moving head, ideal for a wide range of short- and long-throw applications. Control via DMX, RDM, sACN, Art-Net, or CRMX.


Specifications

Optical

  • Light Source: 1 LED (CW) 520 W, (4.2 A), 6462 K, 50,000
  • Color Temperature (at full): 6462 K
  • Front lens diameters: 145 mm
  • CRI: 72.2
  • CRI with CRI filter: 90
  • Beam Angle: 3.5° to 51.3°
  • Field Angle: 3.7° to 56.3°
  • Cutoff Angle: 3.9° to 57.7°
  • Zoom Range: 3.5° to 57.7°
  • Lumens - Output: 17,325
  • Illuminance(3.5°) : 93,084 lux @ 5 m
  • Illuminance (57.7°) : 1,135 lux @ 5 m
  • Selectables PWM : 600Hz, 1500Hz, 2000Hz 65000Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY wheels
  • Color Macros: # macros
  • Gobos (1) open (9 metal), rotating, continuous scroll at variable speeds
  • Gobos (2): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 24 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobo: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5-facet, motorized, rotating
  • Strobe Rate: 0 to 25 Hz
  • Move-in-Black: yes
  • Dim Curves: 5

Construction / Physical

  • Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
  • Weight: 44.2 lbs (20 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

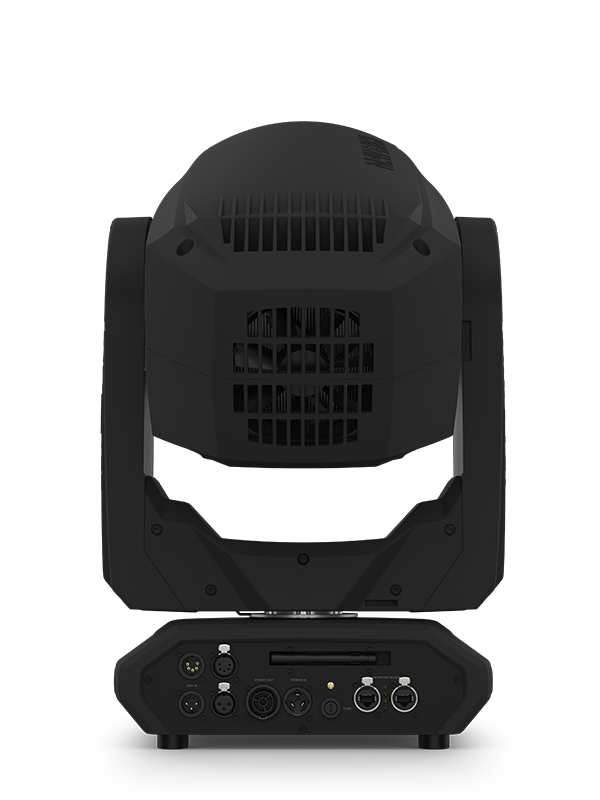

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
  • Cable Length (signal): 5 ft (1.5 m)

Control

  • DMX Channels: 22 or 29
  • Art-Net Channels : 22 or 29
  • Modoes/Personalities: 2 personalities (22, 29)

Electrical

  • Input Voltage: 100 a 240 VAC, 50/60 Hz
  • Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
  • Power and Current: 554 W, 4.64 A @ 120 V, 60 Hz
  • Power and Current: 541 W, 2.68 A @ 208 V, 60 Hz
  • Power and Current: 542 W, 2.44 A @ 230 V, 50 Hz

Battery

  • Battery type: Lithium Ion (display screen backup)
  • Rechargable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: 1 hour
  • Battery Power: 3.7 V, 500 mAh

Certifications / Qualifications

  • CE, MET, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient):-4 °F to 113 °F ( -20 °C a 45 °C )

What's Included

  • Maverick Force X Spot
  • Seetronic Powerkon power cable
  • Omega brackets with mounting accessories

Optional Accessories

  • Clamps
  • RigLink IP65 powerCON cables
  • RigLink etherCON cables
  • DMX cables
  • Flight Cases
  • CP Rack
  • PowerStream 4 IP
