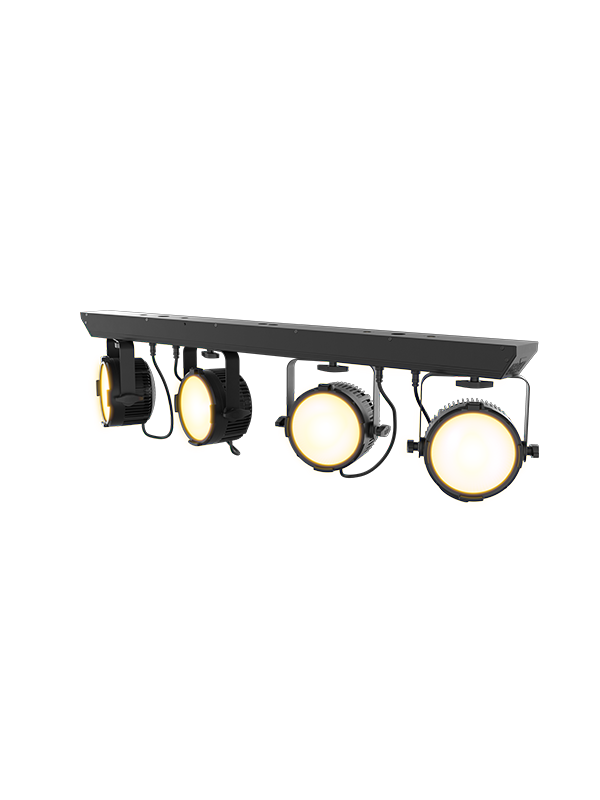

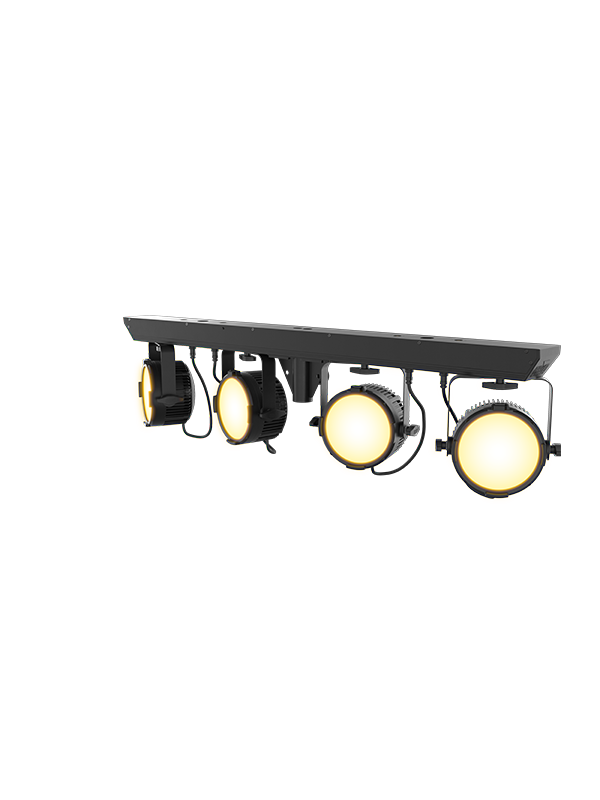

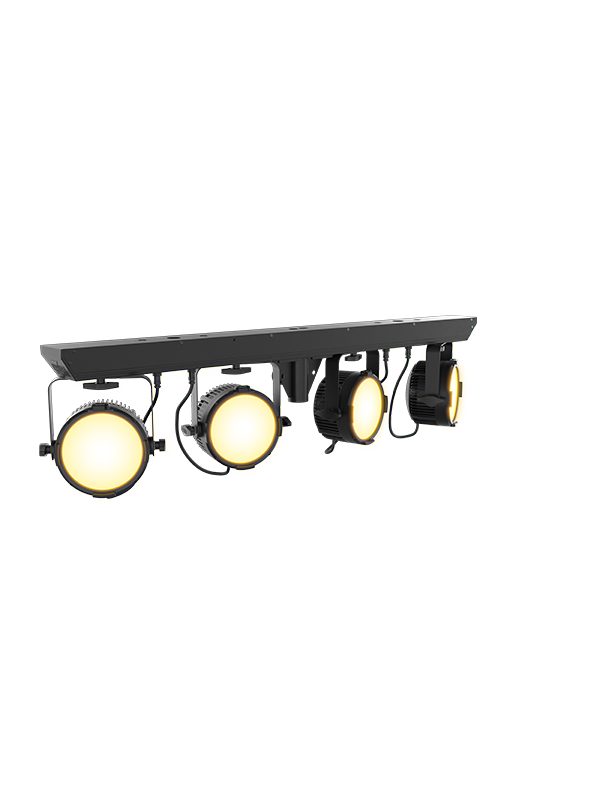

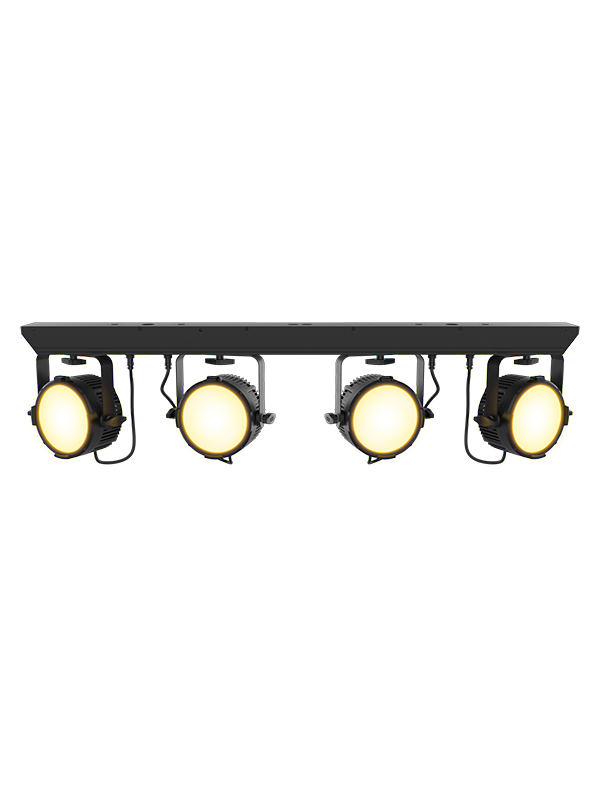

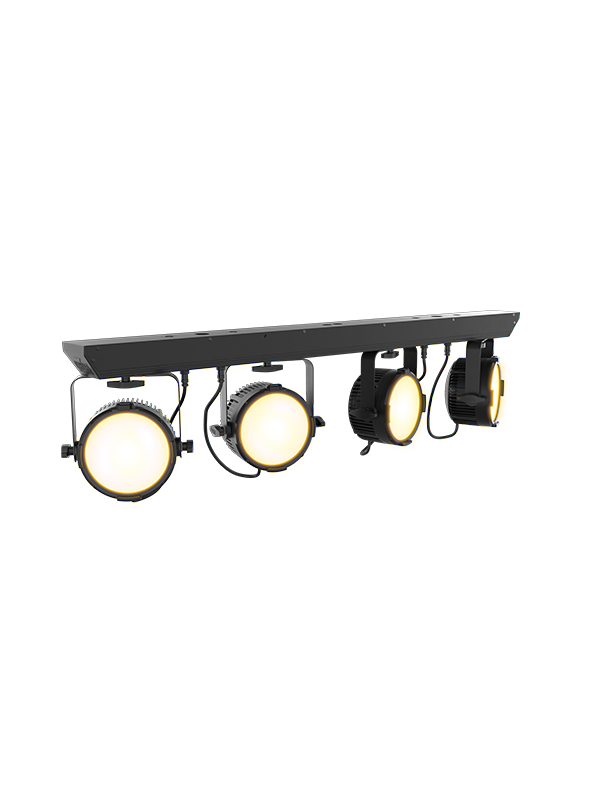

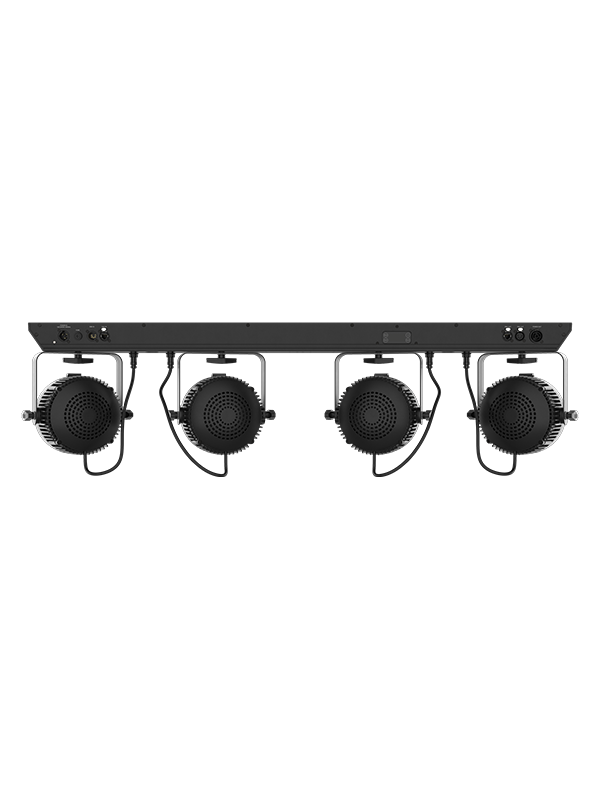

COLORdash PAR Bar 4
A complete wash light solution designed with convenience and versatility in mind for small theatres, events and multi-use spaces. COLORdash Par Bar 4 comes with all the features and accessories to shape light coverage to your needs. Independently focus each of four RGBAW-UV LED heads, change beam angles from 15° to 30° with the included wide filter, and keep light where it’s wanted with four-leaf barndoors. Selectable dimming curves mean fades are always smooth, and superior optics produce smooth color mixes. Advanced electronics with adjustable pulse width modulation make for flicker-free on-camera performance. Connect to DMX control via 5-pin XLR or with standard CAT6 Ethernet cable. A touchscreen interface and multiple mounting options complete this versatile package.
*includes Mexico & Canada
At a Glance
Complete, 4-head wash lighting solution with high-power RGBAW-UV LED Arrays
Multiple, convenient mounting options for maximum versatility
Independently focusable heads allow for customizable stage coverage

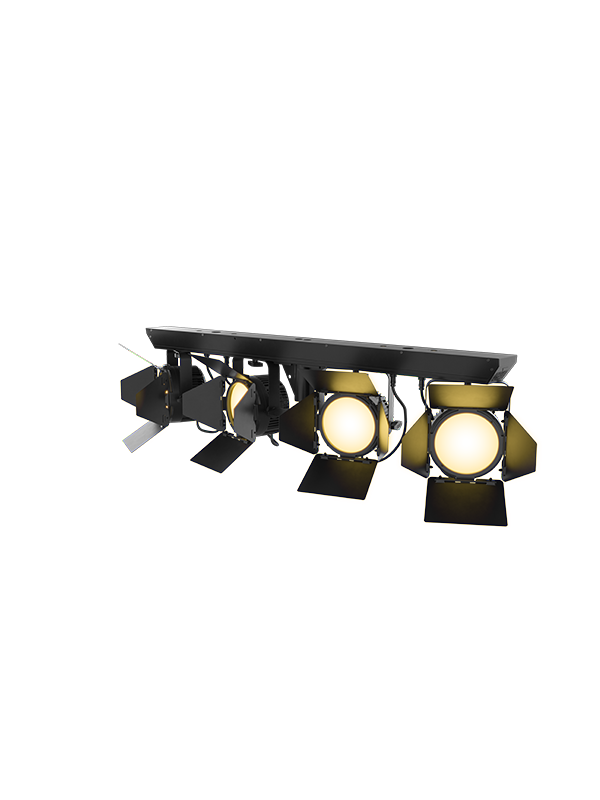

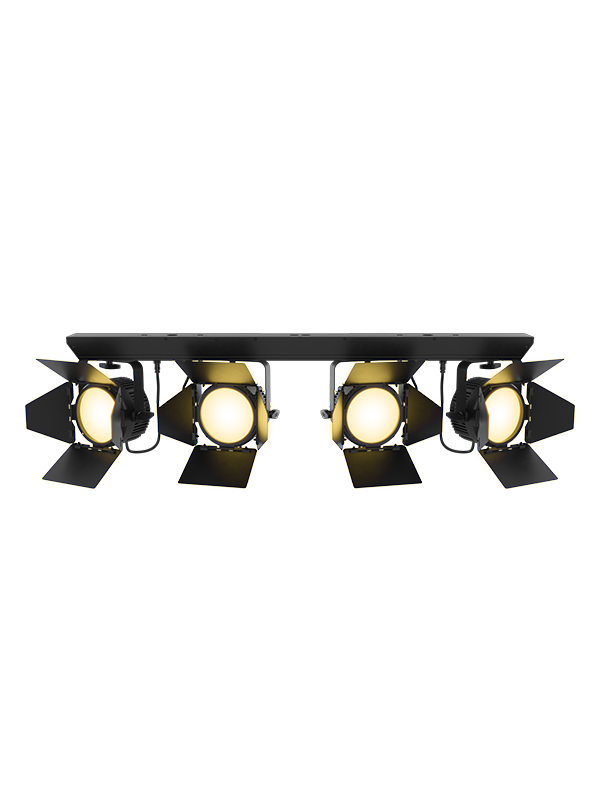

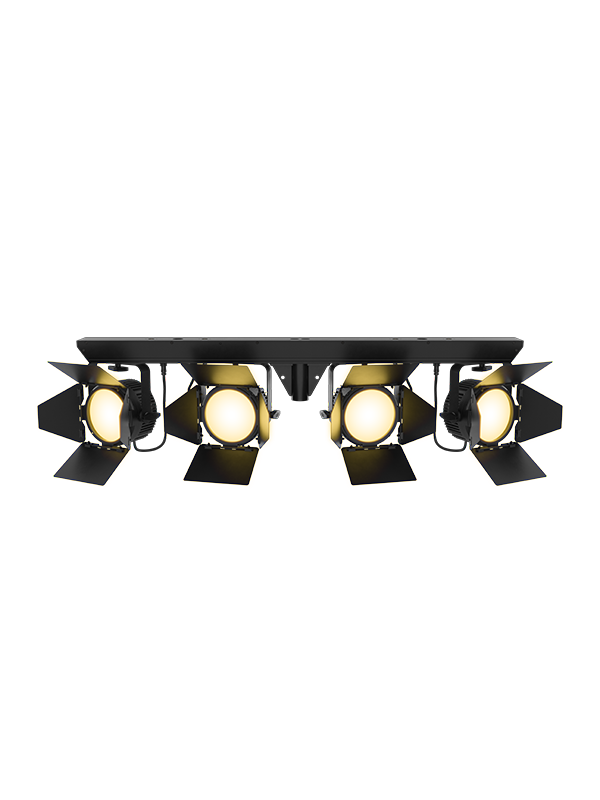

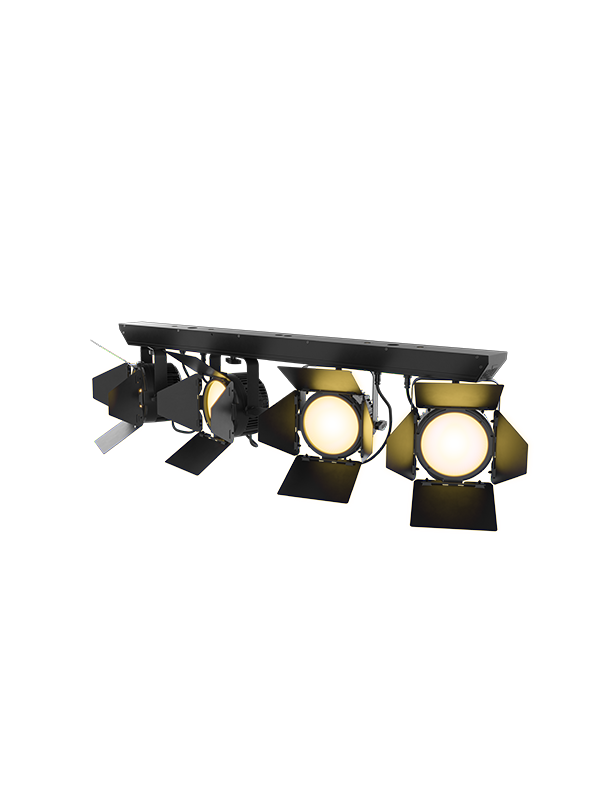

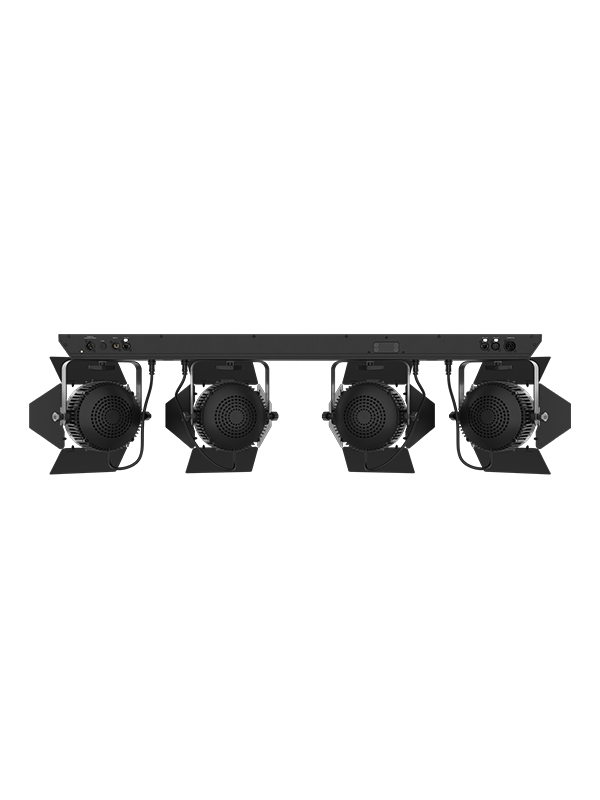

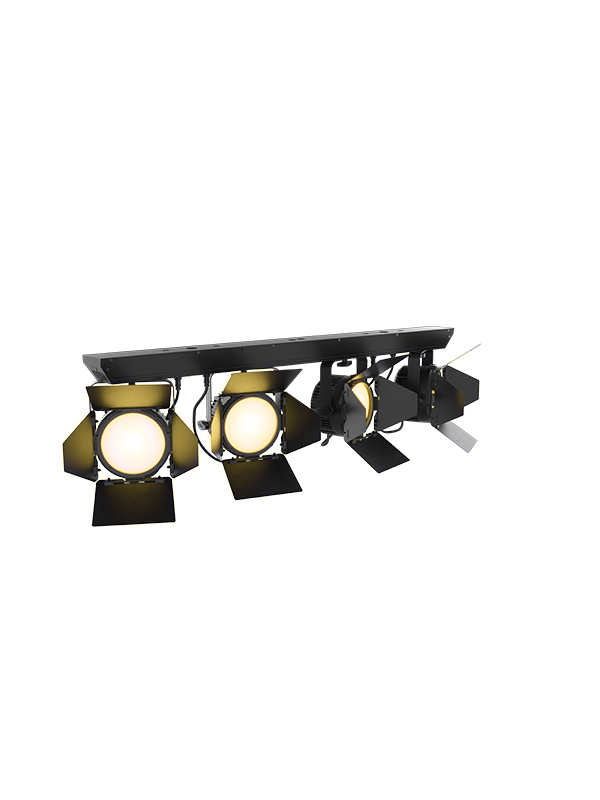

Included barndoors for each head to cut light out of unwanted areas
Easily connect to DMX control using standard CAT6 Ethernet cable
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable, smooth dimming curves for eliminating flicker and choppiness in fades
Easy to read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Specifications
Optical
- Light Source: 1, RGBAW-UV LED Array (per head)
- Beam Angle narrow (Single Par): 15.3°
- Field Angle narrow (Single Par): 29.8°
- Beam Angle wide (Single Par): 30.4°
- Field Angle wide (Single Par): 49.4°
- Lumens (Single Par): 4305 lm
- Lumens (All Pars) : 17930 lm
- Illuminance Narrow (Single Par): 1482 lux @ 5 m
- Illuminance Wide (Single Par): 510 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 45.3 x 5.16 x 11.08 in ( 1150.6 x 131 x 281.4 mm)
- Weight: 28.8 lb (12 kg)
- Exterior Color: Black
- Housing Material: Aluminum Alloy
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR, Neutrik etherCON or Amphenol XLRnet (etherCON Compatible)
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: DMX, RDM
- DMX Channels: 6,8,9,14,24,32,36,41
- Modes/Personalities: 8 personalities (6,8,9,14,24,32,36,41)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 2 units @ 100 V; 2 units @ 120V; 4 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
- Power and Current: 557W, 5.55 A @ 100 V, 60 Hz
- Power and Current: 551W, 4.63 A @ 120 V, 60 Hz
- Power and Current: 546 W, 2.63 A @ 208 V, 60 Hz
- Power and Current: 550W, 2.41 A @ 230 V, 50 Hz
- Power and Current: 559W, 2.33 A @ 240 V, 50 Hz
Certifications / Qualifications
- CE, MET, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): 32 °F to 104 °F (0 °C to 40 °C)
What's Included
- COLORdash Par Bar
- Seetronic Powercon IP65 power cord
- Wide Filter (4pc)
- Barndoors (4pc)
- Tripod mount
Optional Accessories
- Professional Clamps : CTC-50HC, CTC-50HCN
- Seetronic Powercon power linking cables.
- 5-pin IP or Non-IP DMX Cables
- Ethernet or etherCON compatible cables
