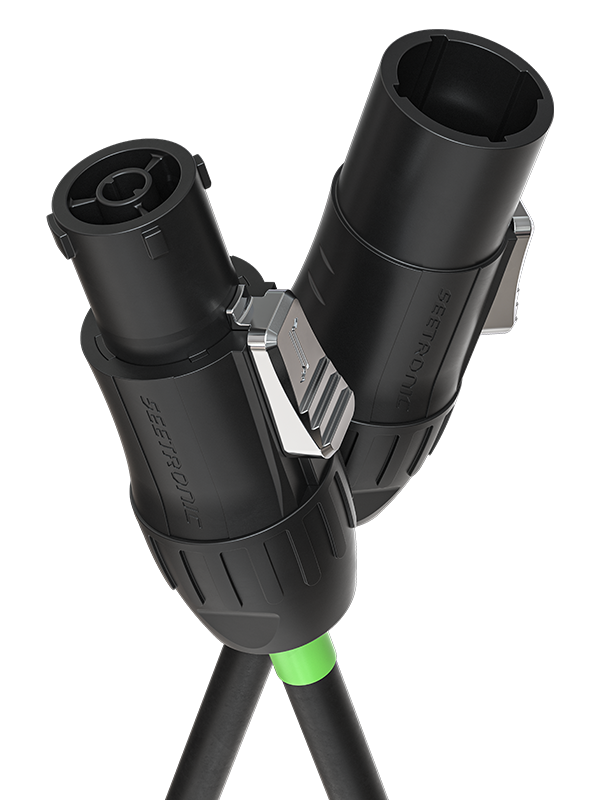

RIGLINK 3-PIN CABLES
IP65-rated UL-certified Riglink copper-stranded power cable featuring production-grade Seetronic® connectors.
| Length | SKU | Description |
|---|---|---|
| 1.5FT | RIGLINKTR115FT | TR1 - 1.5ft |
| 1M | RIGLINKTR11M | TR1 - 1m |
| 5FT | RIGLINKTR15FT | TR1 - 5ft |
| 3M | RIGLINKTR13M | TR1 - 3m |
| 10FT | RIGLINKTR110FT | TR1 - 10ft |
| 5M | RIGLINKTR15M | TR1 - 5m |
| 25FT | RIGLINKTR125FT | TR1 - 25ft |
| 10M | RIGLINKTR110M | TR1 - 10m |
| 50FT | RIGLINKTR150FT | TR1 - 50ft |
| 20M | RIGLINKTR120M | TR1 - 20m |
Riglink is CHAUVET Professional’s new line of DMX, IP65, Powerkon, 3-pin, and 4-pin cables.
At a Glance
Oxygen-free copper stranded power cable.
Ideal for both installations and touring.
IP65 rated for outdoor use.
UL Certification.
Riglink Cables
Color-coded connectors eliminate cable length guesswork
Certified components meet worldwide safety standards
Built rugged for live performance and life on the road
Reliable transmission and robust connection systems
Seetronic® professional production grade connectors
Cable lengths available in both meters and feet
Specifications
Construction / Physical
- Conductor Specification: 3 x 2.08mm2 (14AWG)
- Conductor Structure: OFC 41/0.25BC
- Insulation Material: PVC
- Insulation OD: 3.45mm
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 9.2 ± 0.2mm
- Temperature Rating: -20oC – 105oC
- IP65
Connections
- Seetronic SAC3FX
- Seetronic SAC3MX
Electrical
- Voltage Rating: 300 V/500 V
- Conductor Resistance: 7.8 Ω/km
Cable
- Imperial: 1.5ft, 5ft, 10ft, 25ft, 50ft
