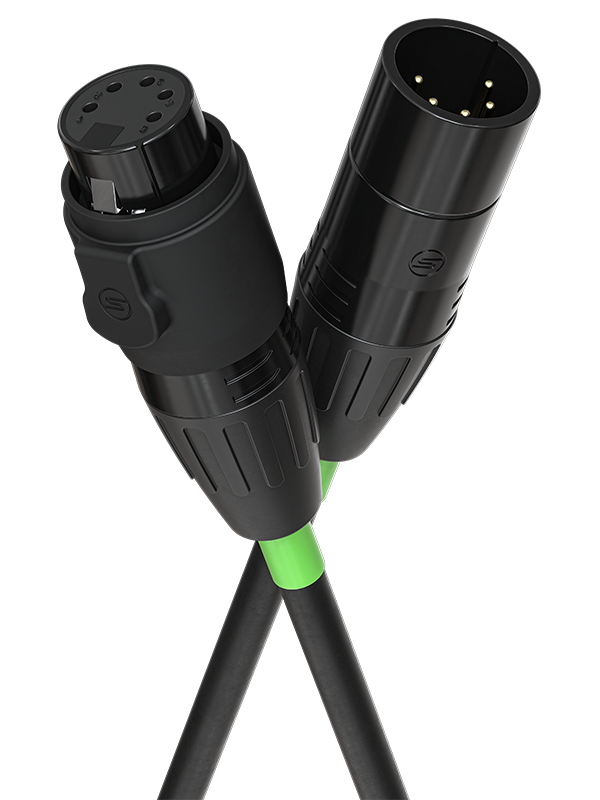

RIGLINK IP65 DMX CABLES
IP65-rated Riglink production-grade DMX lighting cable designed for reliable signal transmission and robust connections in both installed and touring environments.
| Length | SKU | Description |
|---|---|---|
| 1.5FT | RIGLINKIPDMX15FT | 5 PIN DMX IP - 1.5FT |
| 1M | RIGLINKIPDMX1M | 5 PIN DMX IP - 1M |
| 5FT | RIGLINKIPDMX5FT | 5 PIN DMX IP - 5FT |
| 3M | RIGLINKIPDMX3M | 5 PIN DMX IP - 3M |
| 10FT | RIGLINKIPDMX10FT | 5 PIN DMX IP - 10FT |
| 5M | RIGLINKIPDMX5M | 5 PIN DMX IP - 5M |
| 25FT | RIGLINKIPDMX25FT | 5 PIN DMX IP - 25FT |
| 10M | RIGLINKIPDMX10M | 5 PIN DMX IP - 10M |
| 50FT | RIGLINKIPDMX50FT | 5 PIN DMX IP - 50FT |
| 20M | RIGLINKIPDMX20M | 5 PIN DMX IP - 20M |
Riglink is CHAUVET Professional’s new line of DMX, IP65, Powerkon, 3-pin, and 4-pin cables.
At a Glance
Features a braided and aluminium foil double shielding design, ensuring optimal protection against interference.
Designed for 110Ω DMX-512 applications.
Utilises low-dielectric constant LDPE insulation, offering low capacitance to meet precise impedance requirements for stable signal transmission.
High-torsion tinned oxygen-free copper (OFC) with a twist rate achieving over 89% shielding effectiveness, enhancing resistance to external interference.
Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body.
Ideal for both installations and touring.
IP65 rated for outdoor use.
Riglink Cables
Color-coded connectors eliminate cable length guesswork
Certified components meet worldwide safety standards
Built rugged for live performance and life on the road
Reliable transmission and robust connection systems
Seetronic® professional production grade connectors
Cable lengths available in both meters and feet
Specifications
Construction / Physical
- Conductor Specification: 2 x 0.22mm2 (24AWG)
- Conductor Structure: OFC 20/0. 12BC
- Insulation Material: LDPE
- Insulation OD: 1.8mm
- Shield Structure: OFC 16/8/0.1TC + AL
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 6.0 ± 0.2mm
- Temperature Rating: -20oC – 70oC
- IP65
Connections
- Seetronic SCWM5-B
- Seetronic SCWF5-B
Electrical
- Withstand Voltage: 0.5kV
- Conductor Resistance: 88.2 Ω/km
- Capacitance between Conductors: 50 pF/m
- Conductor and Sheild Capacitance: 122 pF/m
- Impedance: 110 Ω
Cable
- Metric: 1m, 3m, 5m, 10m, 20m
- Imperial: 1.5ft, 5ft, 10ft, 25ft, 50ft
