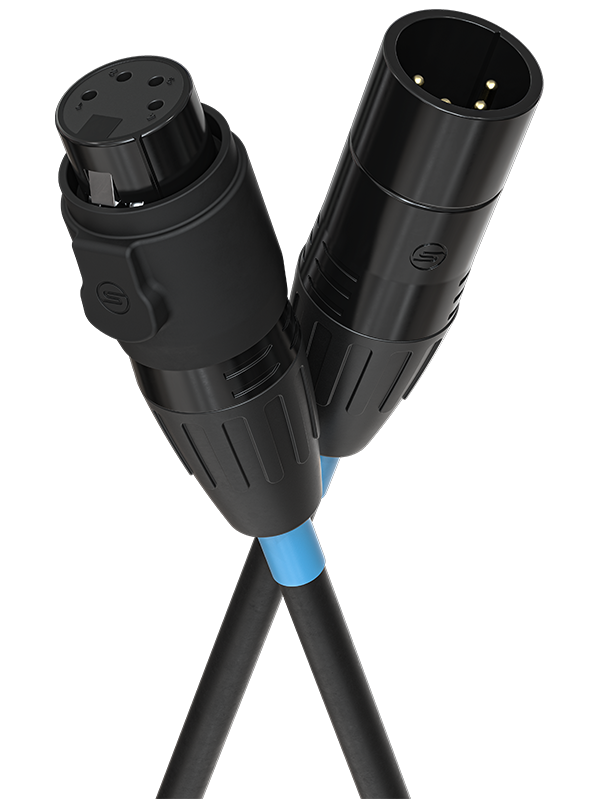

RIGLINK 4-PIN CABLES
IP65-rated Riglink combined data and power cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic® production-grade connectors.
| Length | SKU | Description |
|---|---|---|
| 1.5FT | RIGLINKXLR415FT | 4-Pin XLR - IP65 1.5ft |
| 1M | RIGLINKXLR41M | 4-Pin XLR - IP65 1m |
| 5FT | RIGLINKXLR45FT | 4-Pin XLR - IP65 5ft |
| 3M | RIGLINKXLR43M | 4-Pin XLR - IP65 3m |
| 10FT | RIGLINKXLR410FT | 4-Pin XLR - IP65 10ft |
| 5M | RIGLINKXLR45M | 4-Pin XLR - IP65 5m |
| 25FT | RIGLINKXLR425FT | 4-Pin XLR - IP65 25ft |
| 10M | RIGLINKXLR410M | 4-Pin XLR - IP65 10m |
| 50FT | RIGLINKXLR450FT | 4-Pin XLR - IP65 50ft |
| 20M | RIGLINKXLR420M | 4-Pin XLR - IP65 20m |
Riglink is CHAUVET Professional’s new line of DMX, IP65, Powerkon, 3-pin, and 4-pin cables.
At a Glance
Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body.
Ideal for both installations and touring.
IP65 rated for outdoor use.
Designed for use with EPIX, Strike Array 1, and other 4 pin powered products.
Riglink Cables
Color-coded connectors eliminate cable length guesswork
Certified components meet worldwide safety standards
Built rugged for live performance and life on the road
Reliable transmission and robust connection systems
Seetronic® professional production grade connectors
Cable lengths available in both meters and feet
Specifications
Construction / Physical
- Conductor Specification: 2 x 0.75mm2 (18AWG) & 2 x 2.5mm2 (13AWG)
- Conductor Structure: OFC 24/0. 2BC & OFC 50/0.25BC
- Insulation Material: PVC
- Insulation OD: 2.4mm & 3.5mm
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 9.5 ± 0.2mm
- Temperature Rating: -20oC – 70oC
- IP65
Connections
- Seetronic SCWM4-BG
- Seetronic SCWF4-B
Electrical
- Withstand Voltage: 1.5kV
- Conductor Resistance: 25.98 Ω/km & 7.98 Ω/km
Cable
- Metric: 1m, 3m, 5m, 10m, 20m
- Imperial: 1.5ft, 5ft, 10ft, 25ft, 50ft
