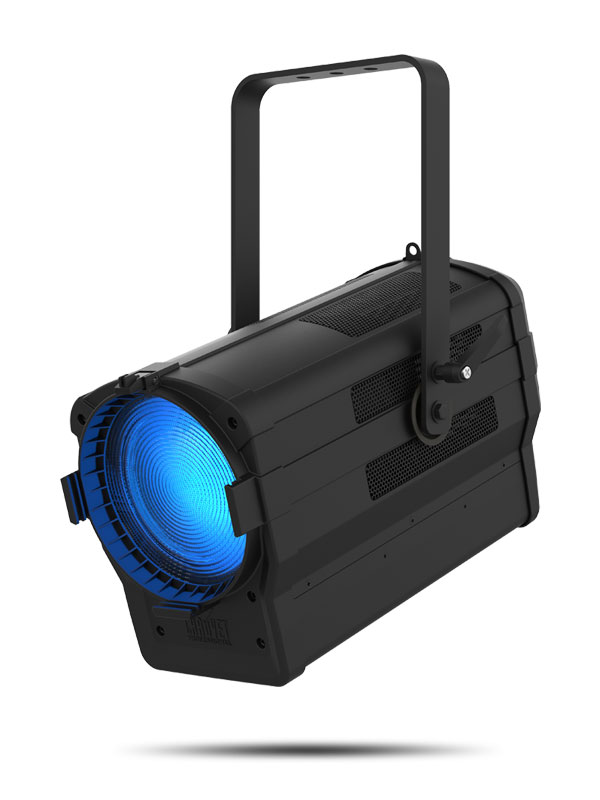

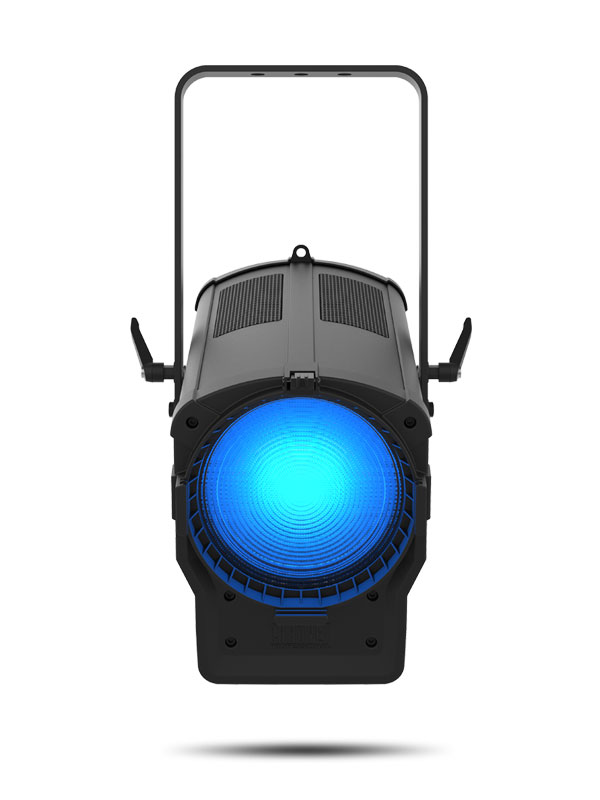

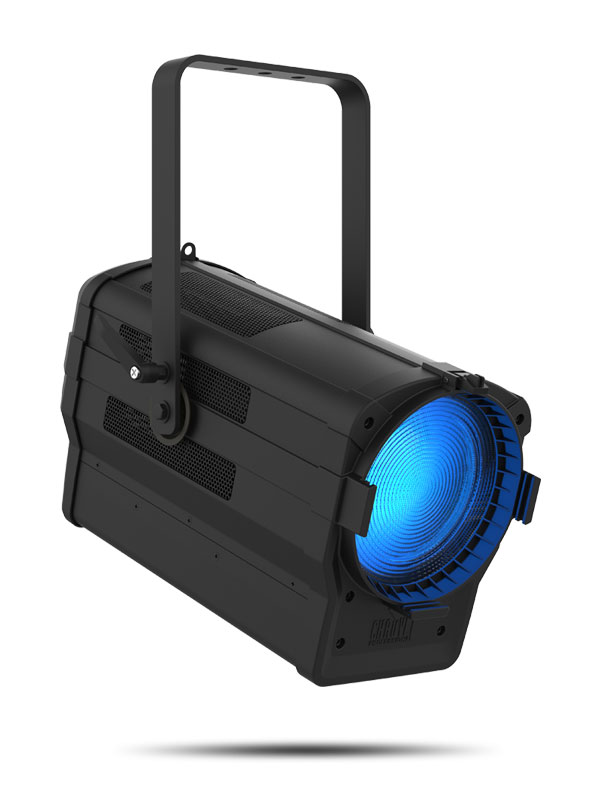

Ovation F-915FC
A high-power, full-color Fresnel fixture utilizing an RGBAL LED system to project a bright, soft field of light with a versatile motorized zoom.
Suited for theatrical stages, broadcast studios, and event spaces that demand a high-quality, soft-edged wash with full-color mixing and precise zoom control.
-
Features an advanced RGBAL LED system for a full spectrum of vibrant colors and whites.
-
Delivers a versatile motorized zoom range, adjustable from a tight 17° to a wide 85° wash.
-
Includes a virtual color wheel and variable CCT presets from 2800 K to 6500 K.
-
Ensures smooth fades with 16-bit dimming and flicker-free output via adjustable PWM.
-
Built for sound-sensitive environments with a virtually silent convection cooling system.
-
Offers flexible control via DMX and RDM, plus onboard dials for manual adjustments.
Request A Product Demo
Request a personalized demo or speak directly with our sales team today.
Ovation F-915FC
Specifications | Download |
Ovation F-915FC Quick Reference Guide | Download |
Legacy Software | Download |
Ovation F-915FC User Manual | Download |
Ovation F-915FC CAD | Download |
Ovation F-915FC IES Files | Download |
Ovation F-915FC Photometric Report | Download |
Ovation F-915FC DMX Chart | Download |
Ovation F-915FC DMX Chart- Legacy Software | Download |
Case study: DesignLight And CHAUVET Professiona… | Download |
Case study: MDR Sound & Lighting Adds Color to … | Download |
Case study: Zach Blane Lights The Heart Of My N… | Download |
Ovation F-915FC ShowXpress | Download |
Ovation F-915FC Specification Sheet | Download |
Ovation F-915FC- Quick Reference Guide | Download |
Ovation F-915FC- DMX Chart | Download |
Firmware | Download |
Revit File | Download |
Ovation F-915FC
Ovation F-915FC is a high-power, full color mixing Fresnel style fixture that utilizes our RGBAL LED system. This fixture projects a bright beautifully soft, field of light from subtle pastels to punchy saturates and nearly any temperature of white. A motorized zoom with a 17° – 85° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials.
Features
Full Color RGBAL Fresnel
Provides a full-spectrum, five-color LED engine for rich color rendering in theatre, film, and production.
Soft, Even Light Field
Produces a beautifully soft and consistent field of light for flawless illumination.
Motorized Zoom
Offers a smooth, motorized zoom range from a narrow 17° spot to a wide 85° wash.
High-Resolution 16-Bit Dimming
Achieve exceptionally smooth fades with precise 16-bit control over the master dimmer and individual colors.
Onboard Control
Easily adjust color, zoom, and dimming directly on the fixture for quick, manual operation.
Virtual Color Wheel
Instantly access a range of popular gel colors using the convenient virtual color wheel.
Variable White Color Temperature
Select from a wide range of preset color temperatures from a warm 2800 K to a cool 6500 K.
Remote Device Management (RDM)
Remotely configure and monitor the fixture using RDM for enhanced operational flexibility.
Adjustable PWM
Eliminate on-camera flicker by adjusting the Pulse Width Modulation to match your camera’s frame rate.
Silent Operation
Operates with virtually no noise, making it perfect for sound-sensitive studio and theatre environments.
Complete Your Rig
Specifications
Optical
-
Light Source
89 LEDs (18 red, 18 green, 16 blue, 16 amber, 21 lime) 3 W, (1.13 A), 3698 K, 50,000 hours life expectancy
-
Color Temperature (range)
2800 to 6500 K
-
CRI (3200 K)
90
-
Beam Angle
17° to 54°
-
Field Angle
30° to 85°
-
Zoom Range
17° to 85°
-
Lumens (30°)
4,294
-
Lumens (73°)
6,661
-
Illuminance (30°)
1,980 lux @ 5 m
-
Illuminance (85°)
433 lux @ 5 m
-
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
-
Dimmer
Electronic
-
Shutter/Strobe
Electronic
-
Zoom
Motorized
-
Strobe Rate
0 to 27 Hz
-
Standalone Color Mixing
Yes
-
Color Temperature Presets
Yes
-
Dim Modes
4
-
Built-in Automated Programs
Yes
Construction/Physical
-
Dimensions
17.80 x 12.59 x 10.82 in (452 x 320 x 275 mm)
-
Weight
19 lb (8.6kg)
-
Exterior Color
Black
-
Housing Material
Aluminum alloy, Aluminum die-cast
Connections
-
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
-
Power Input
Seetronic Powerkon IP65
-
Power Output
Seetronic Powerkon IP65
-
Data Connectors
3- and 5-pin XLR
-
Cable Length (power)
5 ft (1.5 m)
Control
-
Control Protocol
DMX, RDM
-
DMX Channels
1, 3, 5, 7, 11, 13, 14 or 17
-
Modes/Personalities
8 personalities (1, 3, 5, 7, 11, 13, 14, 17, HSV)
Electrical
-
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power Linking
4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
-
Power and Current
304 W, 2.576 A @ 120 V, 60 Hz
-
Power and Current
293 W, 1.490 A @ 208 V, 60 Hz
-
Power and Current
293 W, 1.358 A @ 230 V, 50 Hz
Certifications/Qualifications
-
Certifications
CE, MET, FCC, UKCA
-
IP Rating
IP20, dry location
-
-
Noise Levels
-
Idle
0.4 dB(A) @ 1 m
-
Auto
16.8 dB(A) @ 1 m
-
On
30.2 dB(A) @ 1 m
-
Off
11.6 dB(A) @ 1 m
-
Silent
18.8 dB(A) @ 1 m
-
-
Noise Levels
Compatible Accessories
- Professional Clamps: CTC-50HC, CTC-50HCN
- Neutrik® powerCON® cables
- 3-pin or 5-pin DMX Cables
- Color Blending Filters: DF60X1D, DF20D
- Ovation F 7.5” Barndoor V2
- Ovation Pole Operated Yoke 2 – 8”
- Seetronic Powerkon IP65 cables
What's Included
- Ovation F-915FC
- Seetronic powerkon IP65 power cord
- Gel frame (7.5 in/191 mm accessories)
Questions or Concerns?
Let us know, we’re here to help! Contact Us
Downloads
Manuals | Ovation F-915FC Quick Reference Guide | Download |
Manuals | Ovation F-915FC Quick Reference Guide – Legacy Software | Download |
Manuals | Ovation F-915FC User Manual | Download |
Drawings | Ovation F-915FC CAD | Download |
Photometrics | Ovation F-915FC IES Files | Download |
Photometrics | Ovation F-915FC Photometric Report | Download |
DMX | Ovation F-915FC DMX Chart | Download |
DMX | Ovation F-915FC DMX Chart- Legacy Software | Download |
Case Studies | Case study: DesignLight And CHAUVET Professional Raise Bar At Dover-Sherborn Regional HS Theatre | Download |
Case Studies | Case study: MDR Sound & Lighting Adds Color to New Zealand Drama School Productions | Download |
Case Studies | Case study: Zach Blane Lights The Heart Of My Name’s Not Indian Joe With CHAUVET Professional | Download |
Other | Ovation F-915FC ShowXpress | Download |
Other | Ovation F-915FC Specification Sheet | Download |
Manuals | Ovation F-915FC- Quick Reference Guide | Download |
Manuals | Ovation F-915FC- DMX Chart | Download |
Other | Ovation F-915FC – Firmware | Download |
Other | Ovation F-915FC – Revit File | Download |
Ovation F-915FC FAQ’s
The Ovation F-915FC is a professional lighting fixture ideal for theatre, film, and live productions. It creates a beautiful, soft, and even wash of light, capable of producing millions of colors, from subtle pastels to deep, vibrant hues, as well as a full spectrum of high-quality white light.
Yes, it features a smooth, motorized zoom that allows you to easily change the size of the light beam. You can adjust it from a tighter spot to a very wide flood, giving you the flexibility to precisely light specific performers, objects, or entire sections of a stage.
Absolutely. It is designed to be flicker-free for cameras, ensuring a clean, professional look on video. Its virtually silent operation makes it perfect for sound-sensitive environments like television studios and quiet theatre scenes, as it won’t interfere with audio recording.
