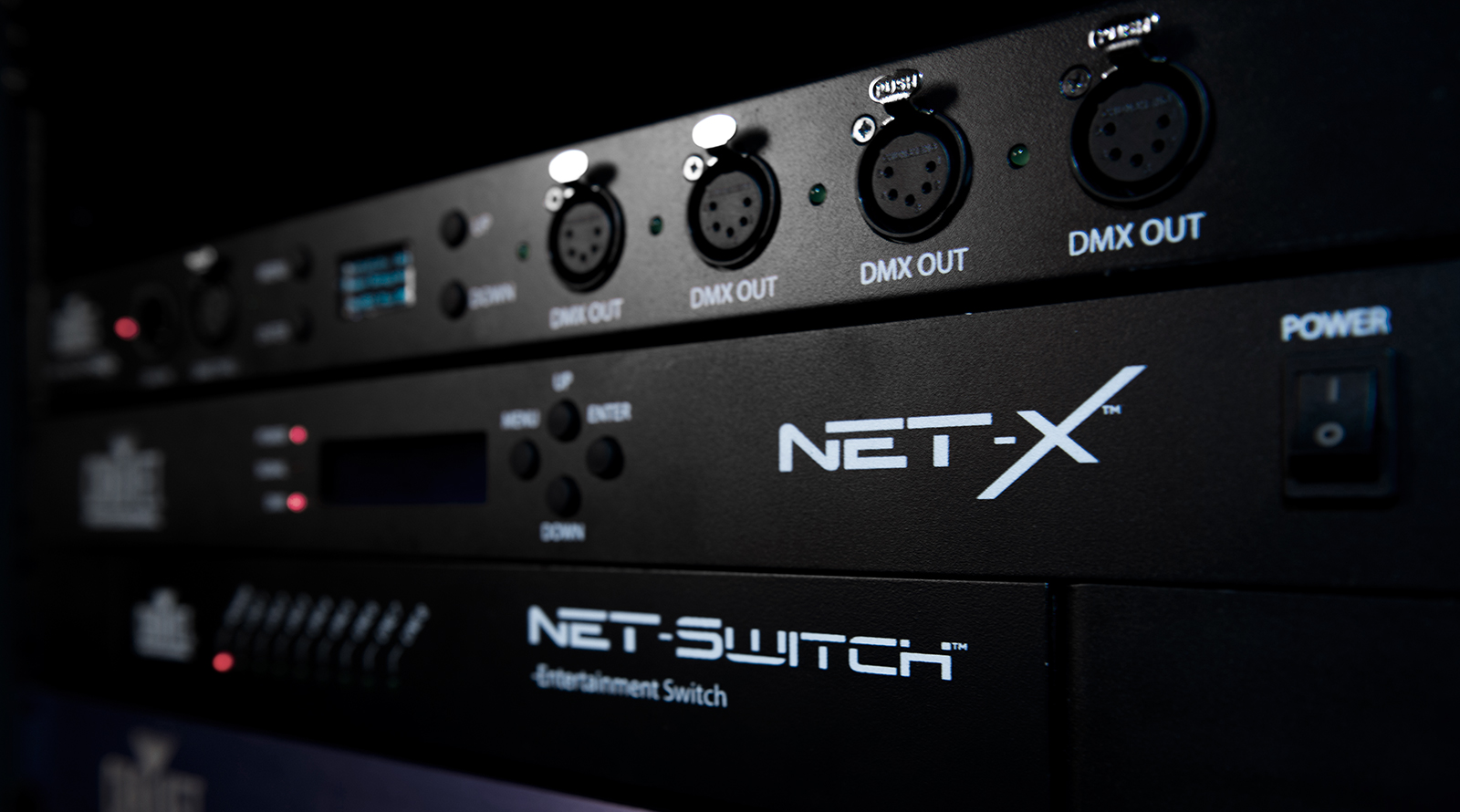

Net-X

Net-X is a reliable and versatile rack-mountable Art-Net-to-DMX adapter with an integrated optical DMX splitter. It has two 5-pin DMX inputs and eight 5-pin DMX outputs, all optically isolated and can take up to eight Art-Net universes simultaneously. The eight 5-pin DMX outputs can be assigned to either of the DMX inputs or to the Art-Net input. The Art-Net through allows daisy-chaining multiple Net-X adapters just in case more than eight universes are needed. Net-X provides a reliable, highly customizable network infrastructure for complex control systems.

At a Glance

  • Universal, rack mount Art-Net-to-DMX adapter with integrated optical DMX splitter

  • Multi-purpose Art-Net node and optical DMX splitter make this product versatile and ideal for both rental and installation applications

  • Can act as an Art-Net node and an optical DMX splitter simultaneously

  • Two 5-pin XLR inputs and eight 5-pin XLR outputs, all optically isolated

  • 2 Neutrik etherCON in/through ports for inputting up to 8 Art-Net universes simultaneously

  • Each of the 8 outputs can be set to 1 of 3 operating modes: DMX universe 1, DMX universe 2, or Art-Net universe (selectable from Art-Net universe, subnet, and net)

Specifications

Construction / Physical

  • Dimensions: 19 x 6.6 x 1.8 in (483 x 168 x 45 mm)
  • Weight: 4.4 lb (2.0 kg)
  • Exterior Color: Black
  • Housing Material: Steel
  • Rackmount: 1U

Connections

  • Power Connection: Edison (Local) plug to IEC
  • Power Input: Neutrik powerCON
  • Device Data Inputs: Neutrik etherCON (1 total) and 5-pin XLR (2 total)
  • Device Data Outputs: 5-pin XLR (8 total)
  • Device Date Throughputs: Neutrik etherCON (1 total)
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, DMX

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 30 W, 0.25 A @ 120 V, 60 Hz
  • Power and Current: 30 W, 0.14 A @ 208 V, 60 Hz
  • Power and Current: 30 W, 0.13 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location

What's Included

  • Net-X
  • Neutrik powerCON power cord
