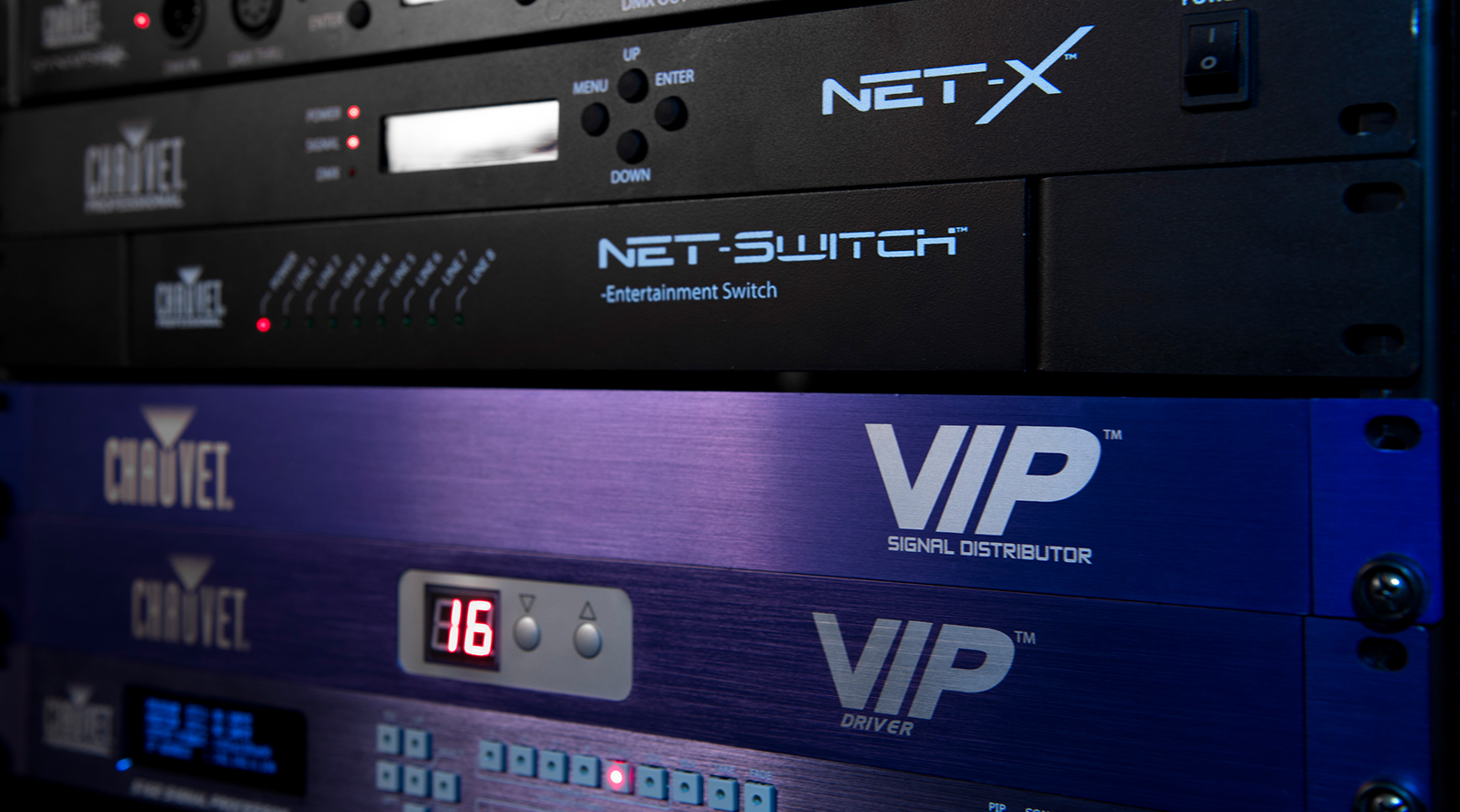

Net-Switch

NET-Switch is a network switch that distributes Art-Net, Kling-Net, sACN, and other TCP/IP based lighting control protocols. It can be mounted on truss and also features removable rack-mount ears. With eight etherCON ports, it preserves signal strength and adds protective isolation. NET-Switch utilizes a high bandwidth, 48Gb/s throughput to reduce latency and ensure that you will hit your mark for live shows.

At a Glance

  • Entertainment-grade network switch optimized for Art-Net, Kling-Net, and sACN

  • Versatile applications with Truss-mount or Rack-mount options

  • High-bandwidth throughput make this router ideal for live-action shows

  • 8 etherCON ports allow for easy control routing, isolation, and amplification

  • Unmanaged switch is ideal for plug-and-play operation

Specifications

Optical

  • Dimensions: 19 x 1.7 x 8 in (483 x 44 x 202 mm)
  • Weight: 4.8 lb (2.2 kg)
  • Exterior Color: Black
  • Housing Material: Steel
  • Rackmount: 1U

Connections

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Device Data Throughputs: Amphenol XLRnet (etherCON® compatible) (8 total)
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net™, Kling-Net, sACN

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 25 W, 0.2 A @ 120 V, 60 Hz
  • Power and Current: 25 W, 0.1 A @ 208 V, 60 Hz
  • Power and Current: 25 W, 0.1 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE
  • IP Rating: IP20, dry location
