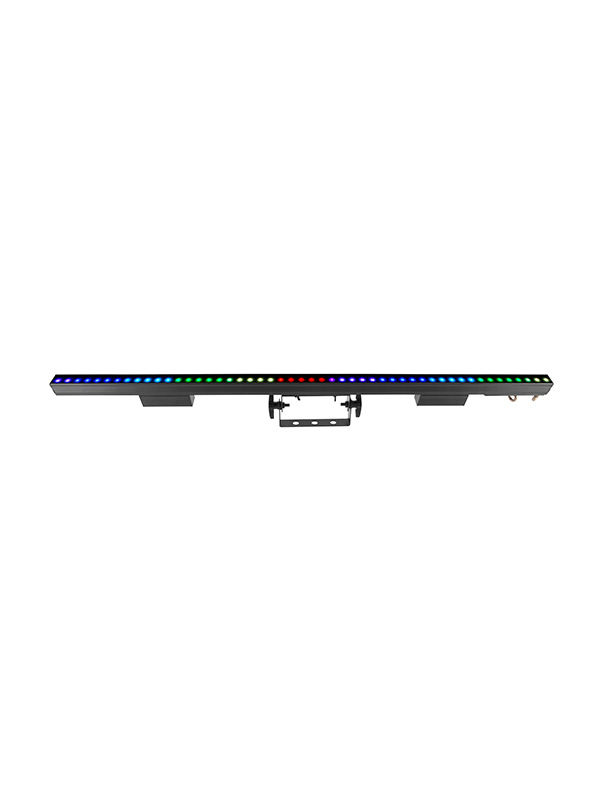

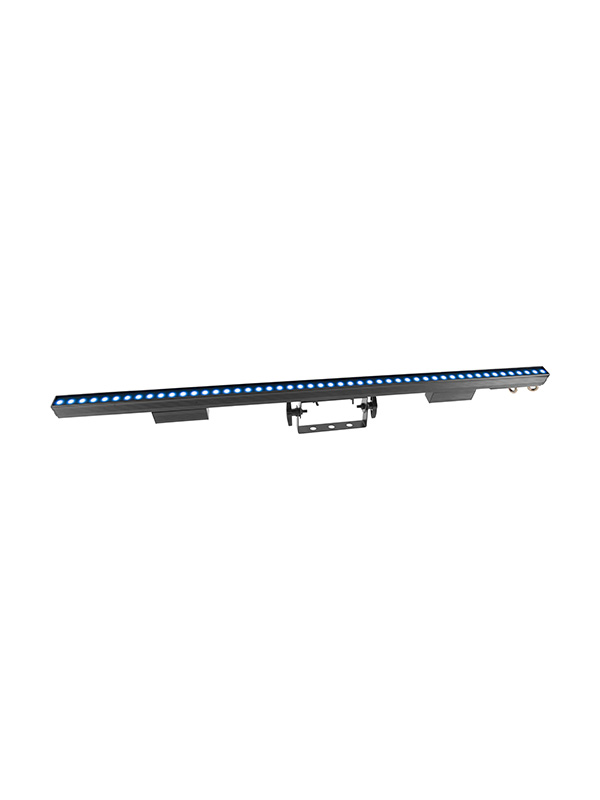

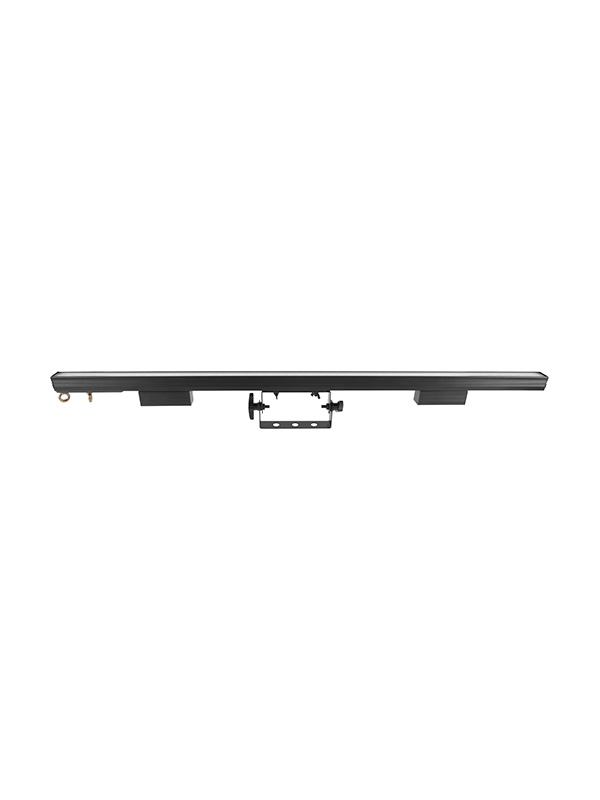

ÉPIX Strip Tour

ÉPIX Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125º viewing angle. Power and control it through the ÉPIX Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN).


At a Glance

  • Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics

  • Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output

  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets

  • ÉPIX Drive 900 required for operation

Specifications

Optical

  • Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
  • Viewing Angle: 125°
  • Illuminance - white frost filter (included): 1,094 NITS
  • Illuminance - black stealth filter (installed): 267 NITS
  • Pixels: 50 x 1
  • Pixel Pitch: 20 mm
  • Refresh Rate: 4,700 Hz

Construction / Physical

  • Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
  • Weight: 3.44 lb (1.56 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum

Connections

  • Data Connectors: 4-pin XLR
  • Physical Linking: 18 inline ÉPIX Strip Tour
  • Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
  • Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
  • Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
  • Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
  • Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
  • Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)

Control

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Channels: 150

Electrical

  • Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
  • Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
  • Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • ÉPIX Strip Tour
  • White Frost Filter
