EPIX Line 10 IP S

ÉPiX Line 10 IP S delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPiX D4 IP Drive, this compact 0.5-meter outdoor-rated linear pixel strip offers native compatibility with the Epix Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.

Pre-order

*PRELIMINARY SPECIFICATIONS ONLY


Specifications

Optical

  • Light Source: 50 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
  • Beam Angle: 114.6°
  • Field Angle: 161.9°
  • Viewing Angle: 170°
  • Lumens: 644.6
  • Pixel Pitch: 10 mm
  • Display Refresh Rate: 4900 Hz

Dynamic Effects

  • Strobe Rate: 0 to 30 Hz

Construction / Physical

  • Dimensions (no filter): 19.685 x 1.161 x 2.862 in (500 x 29.5 x 72.7 mm)

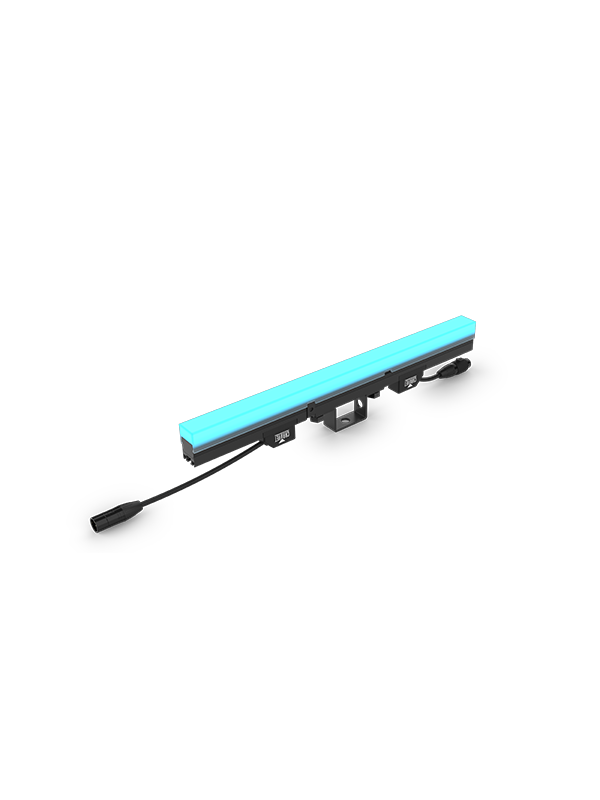

  • Dimensions (square filter installed): 19.685 x 1.228 x 2.862 in (500 x 31.20 x 72.7 mm)

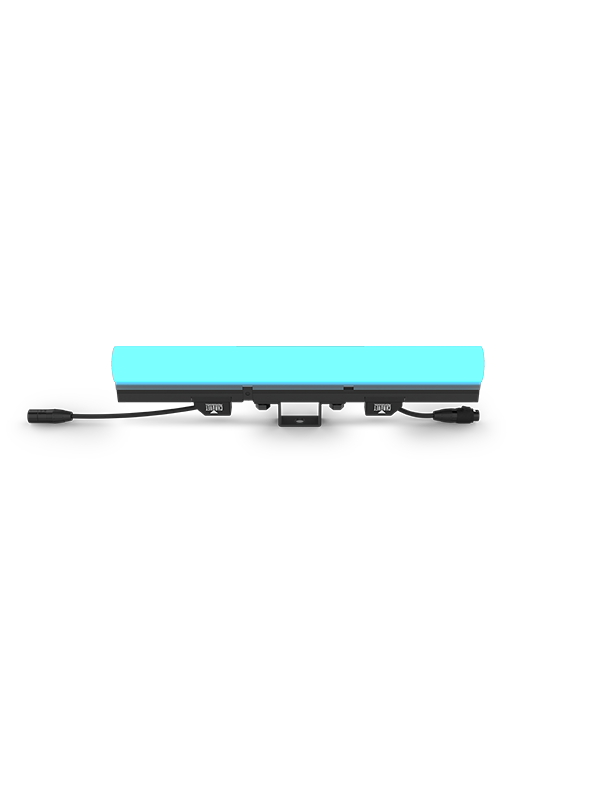

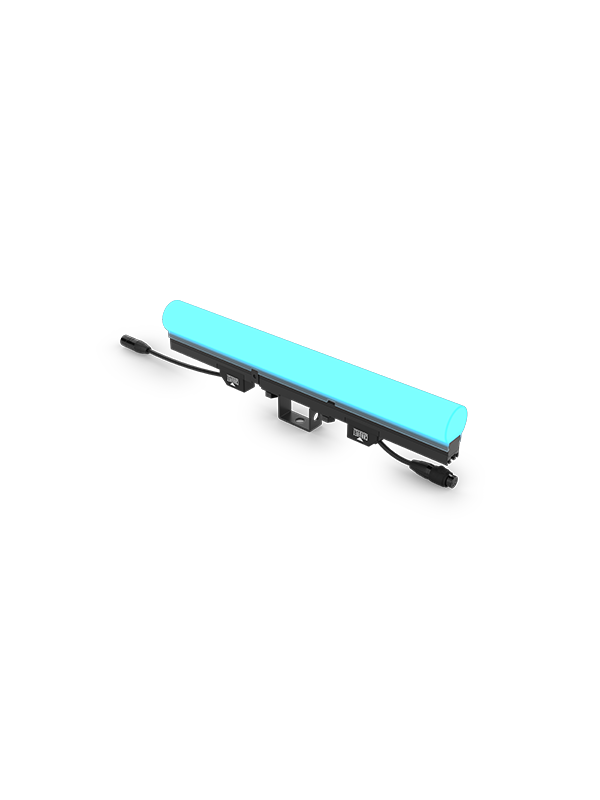

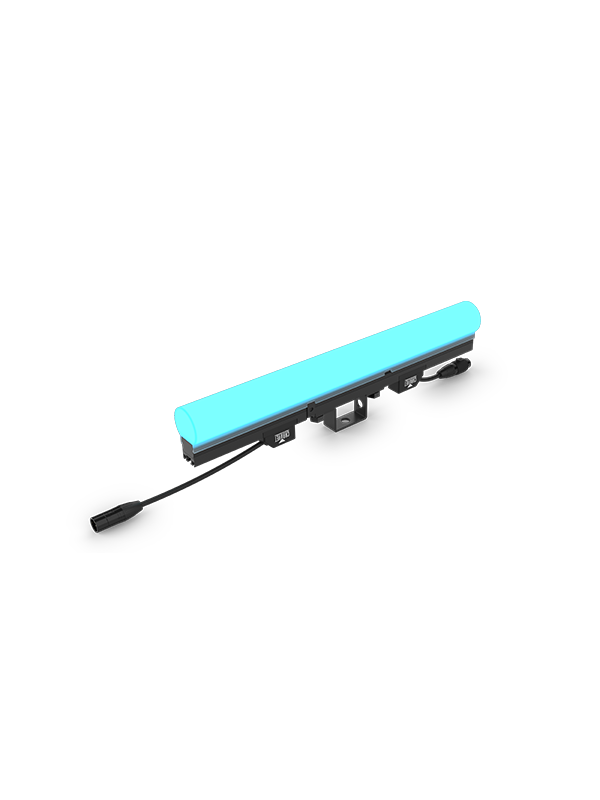

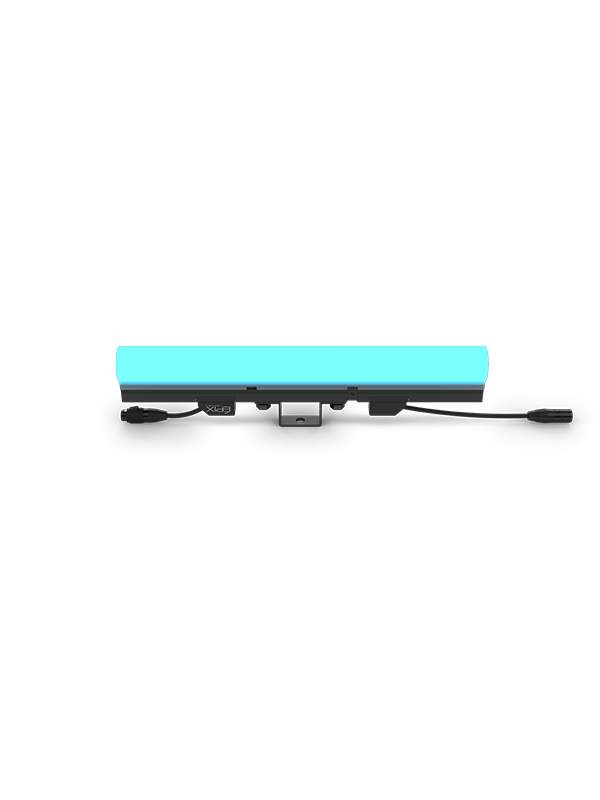

  • Dimensions (round filter installed): 19.685 x 1.969 x 2.862 in (500 x 50 x 72.7 mm)
  • Weight: 1.644 lb (0.746 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel
  • IP Rating: [IP65]

Connections

  • Power Supply (remote driver): Epix D4 IP
  • Physical Linking (Standard Mode): 20 inline EPIX Line 10 IP S
  • Physical Linking (Hi Power Mode): 13 inline EPIX Line 10 IP S
  • Data Connectors: 4-pin IP65 XLR
  • Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
  • Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line: 210 ft (64 m)
  • Max. cable length (shielded cables) between Epix D4 IP and first Epix Line: 65 ft (20 m)
  • Max. cable length (shielded cables) between each Epix Line: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line: 300 ft (91 m)
  • Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line: 150 ft (45 m)
  • Max. cable length (unshielded cables) between each Epix Line: 100 ft (30 m)

Control

  • Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System]
  • DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
  • Video Refresh Rate: 60 Hz

Electrical

  • Input Voltage: 48VDC
  • Power and Current (STD): 11 W, .223 A @ 48 VDC
  • Power and Current (Hi-PWR): 16 W, .328 A @ 48 VDC

Certifications / Qualifications

  • Compliance: [CE, MET, FCC, ETL, UKCA, etc.]
  • Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

What's Included

  • EPIX LINE 10 IP S
  • Interlocking Bracket
  • Milky White Square Filter (Installed)

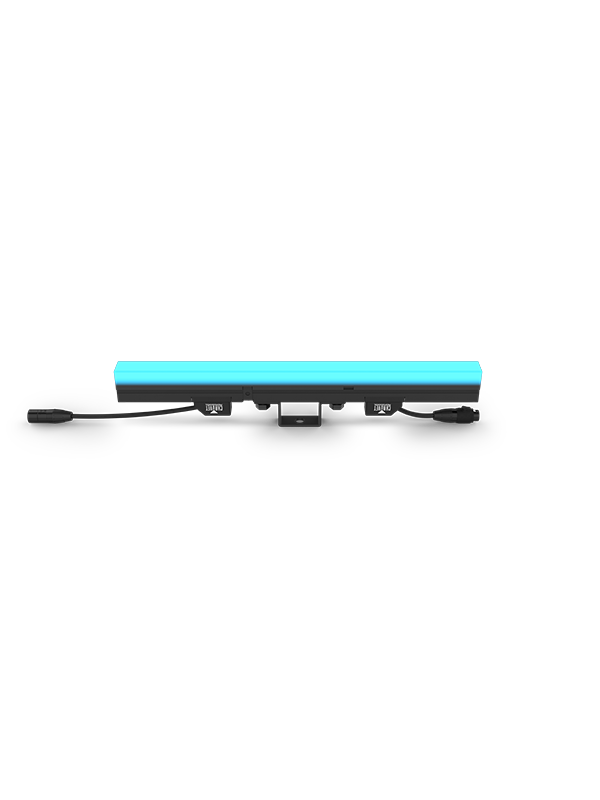

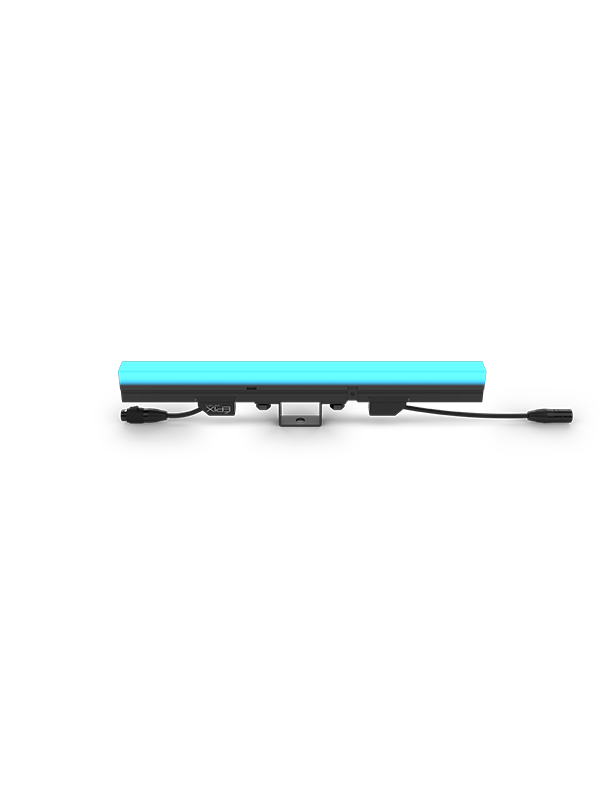

  • Black Stealth Square Filter (Included)
  • Milky White Round Filter (Included)
  • 1X Mounting Brackets (Installed)

Required Accessories

  • Optional Software (mapping): KLSTR
  • Controller (required): [Epix D4 IP]
  • Compatible Mounting Options: [EPIXMNTSPIGOT, M12 BOLT]

Optional Accessories

  • EPIXMNTSPIGOT (Epix Mounting Bracket: Spigot Adapter 28mm)
  • EPIXMNTANGLE (Epix Mounting Bracket: +/- 120° Angling Adapter)
  • Clamps
  • RIGLINK 4-PIN XLR Cables
  • Flight Case
