    ÉPIX Line 10 IP

    A one-meter, IP65-rated linear pixel strip that delivers wide-gamut RGB color and offers multiple viewing angles with three included optical filters.

    Built for demanding touring and architectural installations, it streamlines video mapping with native ÉPIX Mapping System and MVR file support.

    Read More Read Less
    Read More Read Less
    Request Demo

    Request A Product Demo

    Request a personalized demo or speak directly with our sales team today.

    Authorized Vendors
    Download Product Information
    SKU: EPIXL10IP

    ÉPIX Line 10 IP

    Specifications
    		 Download
    Quick Reference Guide
    		 Download
    Download All Resources

    ÉPIX Line 10 IP

    SKU: EPIXL10IP

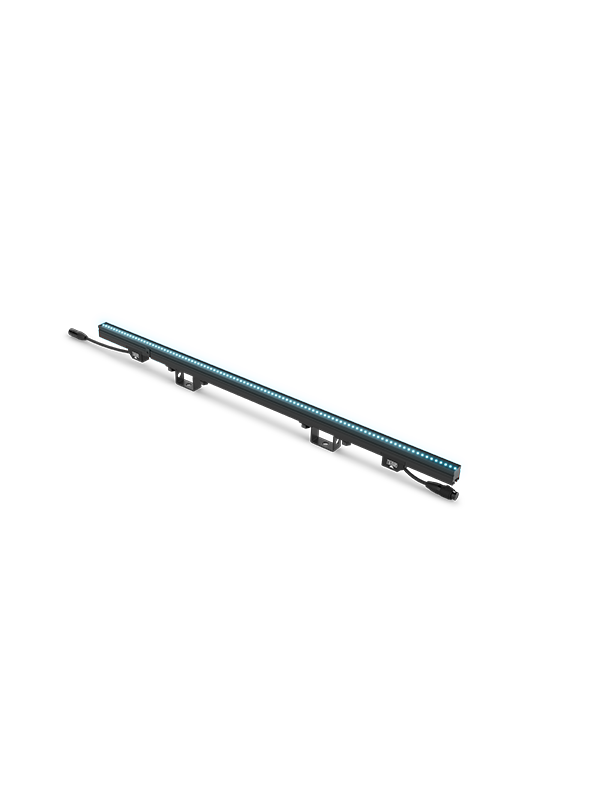

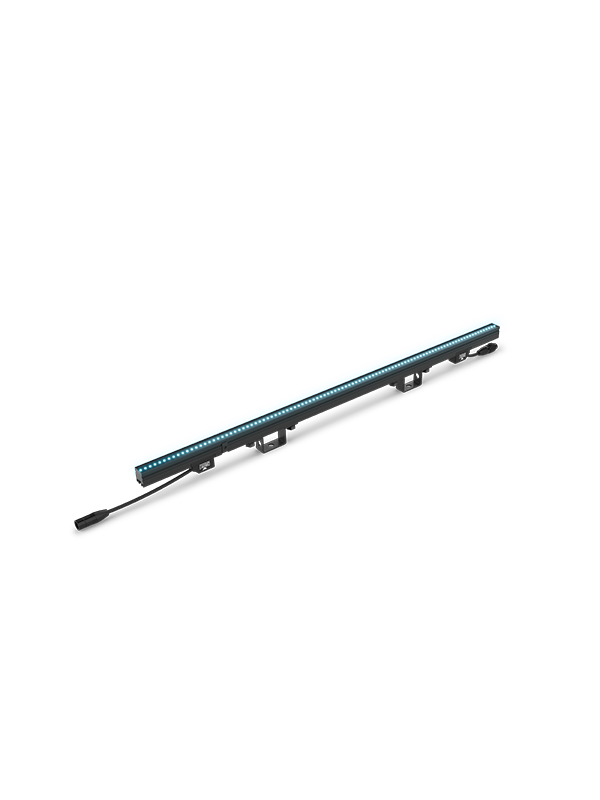

    ÉPIX Line 10 IP delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPIX D4 IP Drive, this sleek 1-meter outdoor-rated linear pixel strip offers native compatibility with the ÉPIX Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.

    Features

    Dynamic Outdoor-Rated Visuals

    The IP65-rated linear design delivers vivid, wide-gamut RGB color perfect for dynamic architectural facades and large-scale entertainment productions.

    Versatile Optical Control

    Shape your output for any application using the three included optical filters that provide multiple looks and wide viewing angles.

    Compact And Serviceable Design

    A slim form factor simplifies integration into tight spaces while full repairability ensures long-term reliability and lower total cost of ownership.

    Streamlined System Configuration

    Native compatibility with the ÉPIX Mapping System and MVR support enables fast, intuitive video mapping and scalable system deployment.

    Complete Your Rig

    Ensure flawless results with gear designed to complement and complete your professional setup.

      Specifications

      Download Product Specs

      Optical

      • Light Source

        100 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy

      • Beam Angle

        114.6°

      • Field Angle

        161.9°

      • Viewing Angle

        170°

      • Lumens

        1,295

      • Pixel Pitch

        10 mm

      • Display Refresh Rate

        4,900 Hz

      Dynamic Effects

      • Strobe Rate

        0 to 30 Hz

      Construction/Physical

      • Dimensions (no filter)

        39.37 x 1.161 x 2.862 in (1,000 x 29.5 x 72.7 mm)

      • Dimensions (square filter installed)

        39.37 x 1.228 x 2.862 in (1,000 x 31.20 x 72.7 mm)

      • Dimensions (round filter installed)

        39.37 x 1.969 x 2.862 in (1,000 x 50 x 72.7 mm)

      • Weight

        2.89 lb (1.3 kg)

      • Exterior Color

        Black

      • Housing Material

        Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel

      • IP Rating

        [IP65]

      Connections

      • Power Supply (remote driver)

        ÉPIX D4 IP

      • Physical Linking (Standard Mode)

        10 inline ÉPIX Line 10 IP

      • Physical Linking (Hi Power Mode)

        6 inline ÉPIX Line 10 IP

      • Data Connectors

        4-pin IP65 XLR

      • Minimum required device linking cable size

        4 conductor (2 x 14 AWG, 2 x 16 AWG)

      • Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line

        210 ft (64 m)

      • Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line

        65 ft (20 m)

      • Max. cable length (shielded cables) between each ÉPIX Line

        60 ft (18 m)

      • Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line

        300 ft (91 m)

      • Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line

        150 ft (45 m)

      • Max. cable length (unshielded cables) between each ÉPIX Line

        100 ft (30 m)

      Control

      • Control Protocol

        [Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System]

      • DMX Channels

        2, 18, Groups of 5/10/255/50, or 300

      • Video Refresh Rate

        60 Hz

      Electrical

      • Input Voltage

        48VDC

      • Power and Current (Standard)

        21 W, .44 A @ 48 VDC

      • Power and Current (Hi Power)

        32 W, .671 A @ 48 VDC

      Certifications/Qualifications

      • Compliance

        [CE, MET, FCC, ETL, UKCA]

      • Operating Temperature

        -4 °F to 122 °F (-20 °C to 50 °C)

      Required Accessories

      • Optional Software (mapping): KLSTR
      • Controller (required): [ÉPIX D4 IP]
      • Compatible Mounting Options: [EPIXMNTSPIGOT, M12 BOLT]

      Compatible Accessories

      • EPIXMNTSPIGOT (ÉPIX Mounting Bracket: Spigot Adapter 28mm)
      • EPIXMNTANGLE (ÉPIX Mounting Bracket: +/- 120° Angling Adapter)
      • Clamps
      • RIGLINK 4-PIN XLR Cables
      • Flight Case

      What's Included

      • ÉPIX LINE 10 IP
      • Interlocking Bracket

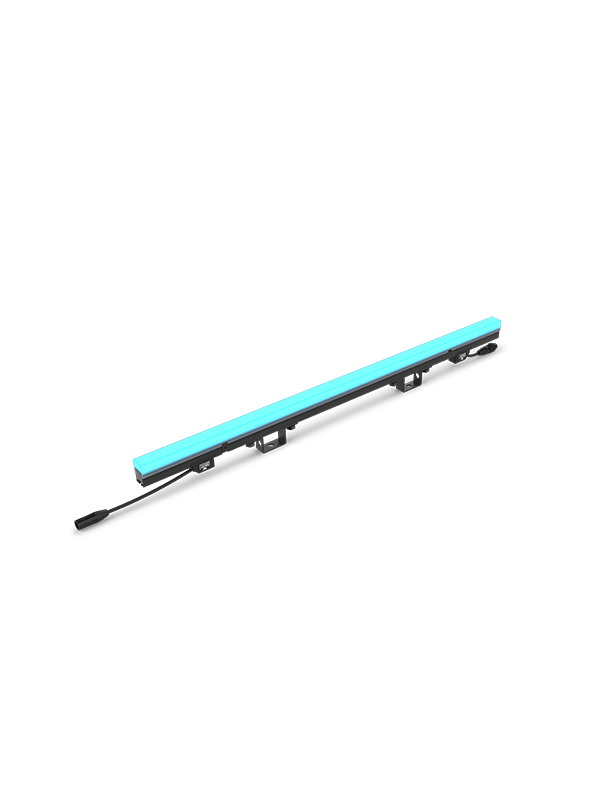

      • Milky White Square Filter (Installed)
      • Black Stealth Square Filter (Included)

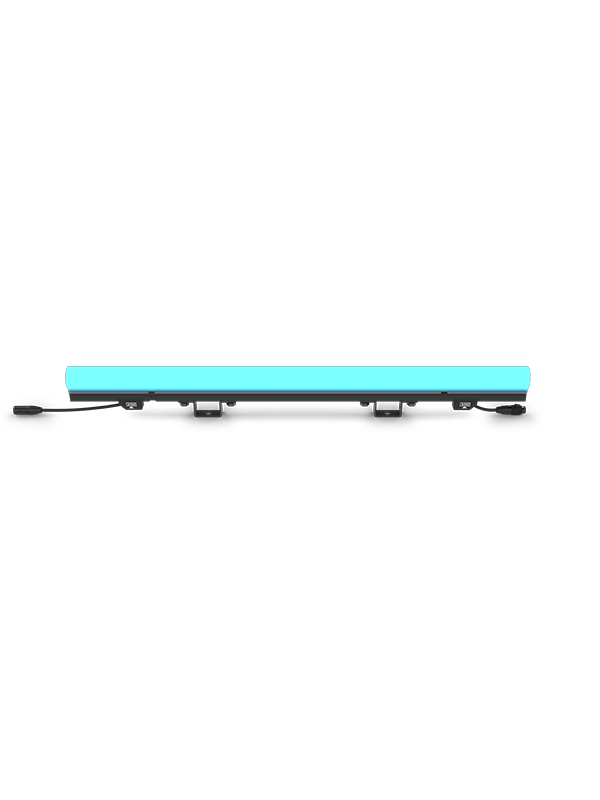

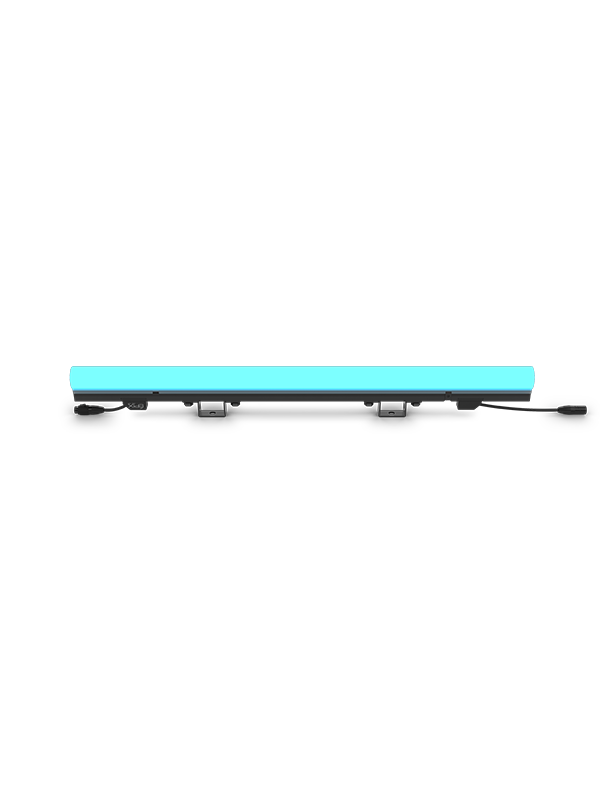

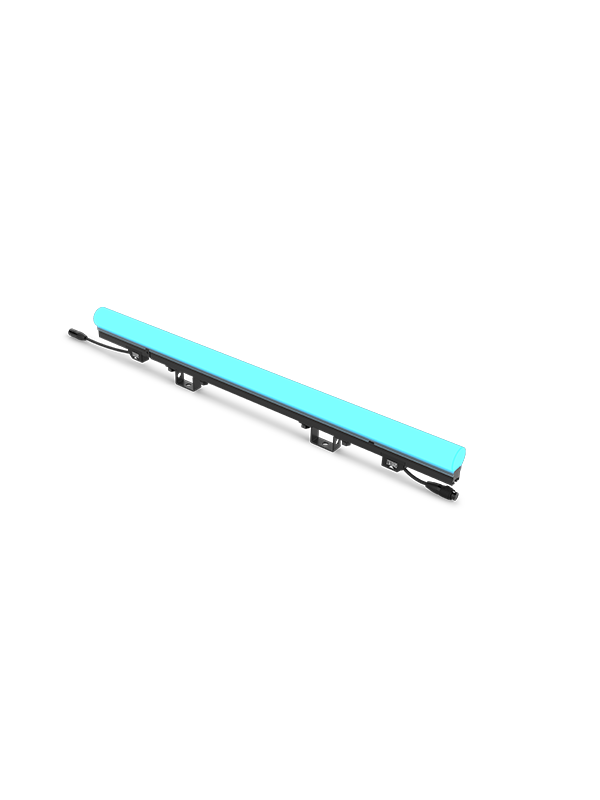

      • Milky White Round Filter (Included)
      • 2X Mounting Brackets (Installed)

      Questions or Concerns?

      Let us know, we’re here to help! Contact Us

      Downloads

      Download All
      Manuals
      ÉPIX Line 10 IP – Quick Reference Guide
      		Download

      Learn How To Use Your ÉPIX Line 10 IP

      Explore these detailed videos showcasing setup, features, and creative applications for this product.

      • “ÉPIX system stands out from other pixel products” #BTS with LD Max Koehler & ÉPIX Line 10 IP

        Lighting Designer Max Koehler shares how the ÉPIX Line 10 IP delivers high-resolution, pixel-mapped visuals for touring. Discover how its modular, IP65-rated design provides vibrant color and reliable performance in any environment, show after show.

      • REDEFINE THE GRID LIGHT SHOW with ÉPIX Line 10 IP

        Witness the future of pixel lighting as ÉPIX Line 10 IP powers a dynamic grid show, delivering high-resolution effects with modular precision and rugged, all-weather performance for any creative vision.

      • Designing the CHAUVET Professional Booth at #LDI2025 | LD David Howard Walkthrough

        Join lighting designer David Howard for an inside look at the CHAUVET Professional LDI 2025 booth. Discover the creative vision and technical approach behind layering beam, wash, and pixel-based fixtures to build an immersive showcase of lighting innovation and design.

      • ÉPiX Debut at LDI 2025: The Future Of Pixel Lighting Starts Now

        Discover the next generation of outdoor-rated ÉPiX pixel strips from CHAUVET Professional. Powered by the new ÉPiX D4 IP processor, this system delivers fast, scalable video mapping for the most demanding touring, rental, and permanent integration applications.

      Video Library

      ÉPIX Line 10 IP FAQ’s

      Quickly find answers to common questions about setup, operation, and features of the ÉPIX Line 10 IP
      What is required to control this fixture?

      This fixture is powered and controlled by the CHAUVET Professional ÉPIX D4 IP drive, which offers native compatibility with the ÉPIX Mapping System for streamlined setup.

      What kind of optical filters are included?

      Each unit ships with three distinct optical filters to achieve different looks: a pre-installed Milky White Square filter, a Black Stealth Square filter, and a Milky White Round filter.

      How many units can be linked together?

      You can link up to 10 fixtures in standard mode or 6 in high-power mode using 4-pin IP65 XLR data connectors, all powered from a single ÉPIX D4 IP drive.
