EPIX D4 IP

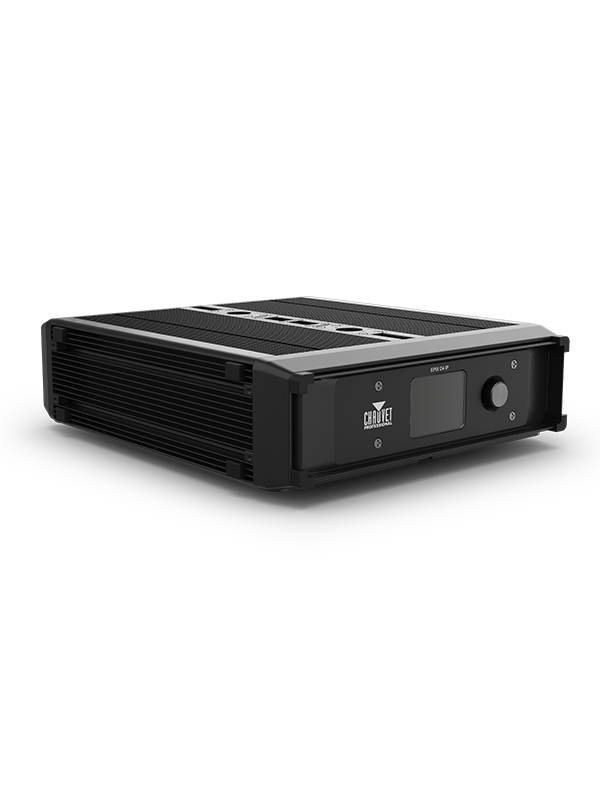

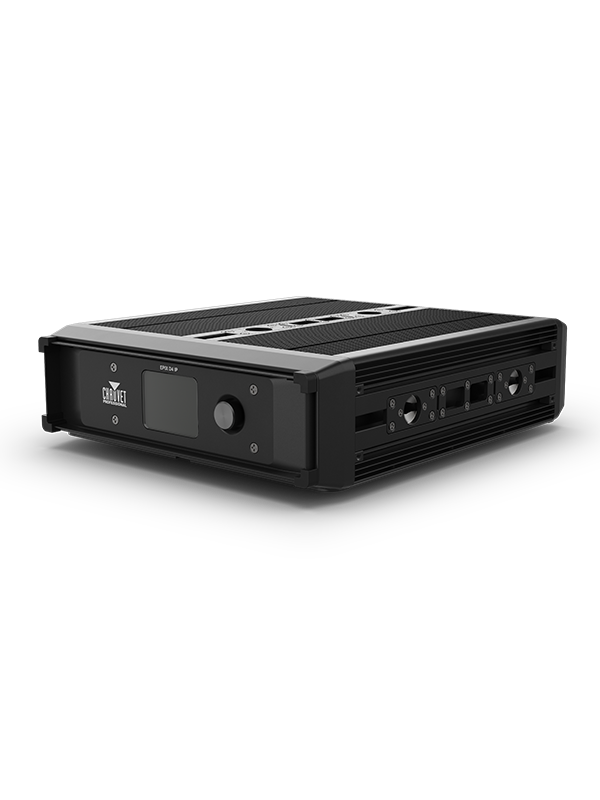

ÉPiX D4 IP is a 4-port drive housing the ÉPiX mapping system – built to easily detect, configure, and control outdoor-rated ÉPiX Line 10 IP and ÉPiX Line 10 IP S linear pixel strips. Its powerful processing unit handles addressing with the intuitive KLSTR push-and-pull mapping system, allowing users to focus on layouts and concepts.

ÉPiX D4 IP is the heart of this latest generation ÉPiX family that introduces a revolutionary new standard in video mapping and a robust new ecosystem. Users can easily create simple and effective designs with the app as well as push highly complex designs and visions through a scalable workflow using industry-standard MVR files.

Designed with modularity, serviceability, and universal connectivity at its core, ÉPiX D4 IP delivers full creative freedom, scalability, and industry-leading efficiency to lighting designers, systems designers, and rental and production houses.

Pre-order

*PRELIMINARY SPECIFICATIONS ONLY


Specifications

Construction / Physical

  • Dimensions: 14.05 x 11.8 x 11.4 in (357 x 300 x 289 mm)

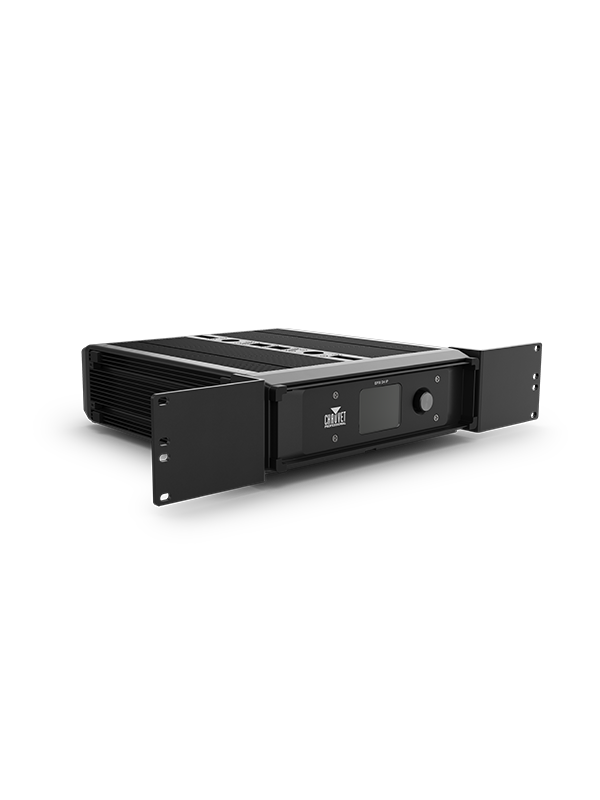

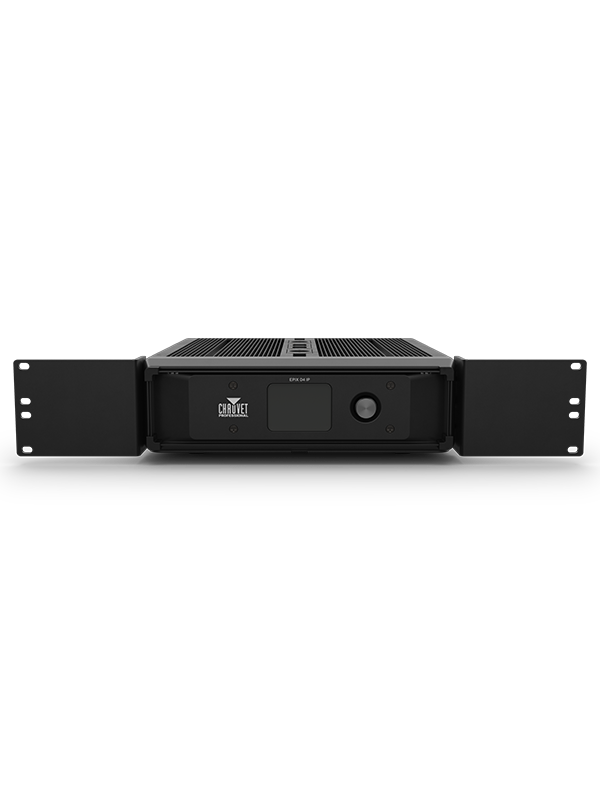

  • Dimensions (with rackmount brackets): 20.24 x 11.8 x 11.4 in (514 x 300 x 289 mm)
  • Weight: 15lb (6.8 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum extrusion, Aluminum die-cast, rubber
  • Rackmount: 2U
  • IP Rating: IP65

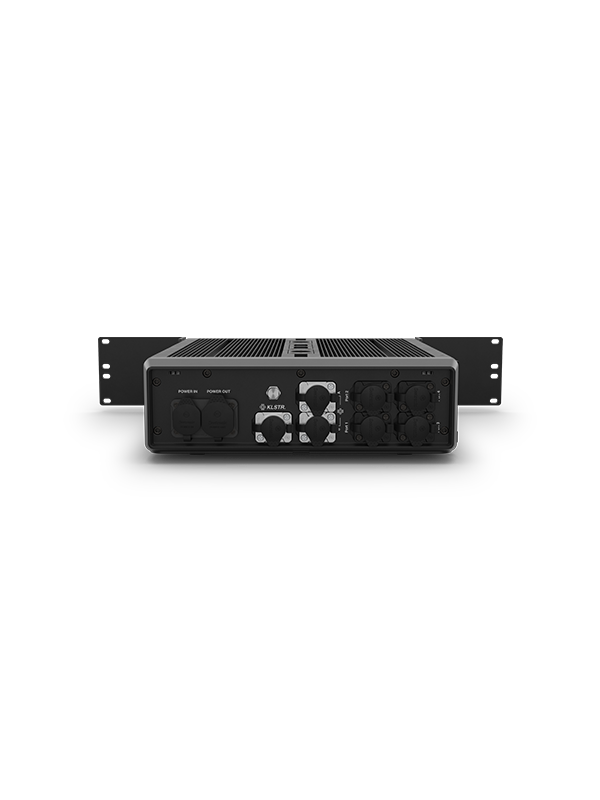

Connections

  • Power input: Seetronic Powerkon (powerCON Compatible)
  • Power output: Seetronic Powerkon (powerCON Compatible)
  • Device output (4): 4-pin XLR (IP65)
  • Data connectors (3): Seetronic etherKON (etherCON Compatible)
  • Intended Load: Epix Line 10 IP, Epix Line 10 IP S
  • Physical Linking (Standard Mode): 10 inline EPIX Line 10 IP
  • Physical Linking (Hi Power Mode): 6 inline EPIX Line 10 IP
  • Physical Linking (Standard Mode): 20 inline EPIX Line 10 IP S
  • Physical Linking (Hi Power Mode): 13 inline EPIX Line 10 IP S
  • Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
  • Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line: 210 ft (64 m)
  • Max. cable length (shielded cables) between Epix D4 IP and first Epix Line: 65 ft (20 m)
  • Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line: 300 ft (91 m)
  • Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line: 150 ft (45 m)
  • Max. cable length (unshielded cables) between each Epix Line: 100 ft (30 m)

Control

  • Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System]
  • DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
  • Video Refresh Rate: 60 Hz

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 0 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V; 3 units @ 240 V
  • Power and Current:
    1,200 W, 12 A @ 100 V, 60 Hz
    1,200 W, 10 A @ 120 V, 60 Hz
    1,200 W, 5.77 A @ 208 V, 60 Hz
    1,200 W, 5.22 A @ 230 V, 50 Hz
    1,200 W, 5 A @ 240 V, 50 Hz

Certifications / Qualifications

  • Compliance: [CE, MET, ROHS]
  • Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

What's Included

  • Epix D4 IP
  • Power Cord (Seetronic powerKON)
  • Rack Ears with Screws (2)
  • Omega bracket
